179 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.177

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 177 0179 ENG Lab2u

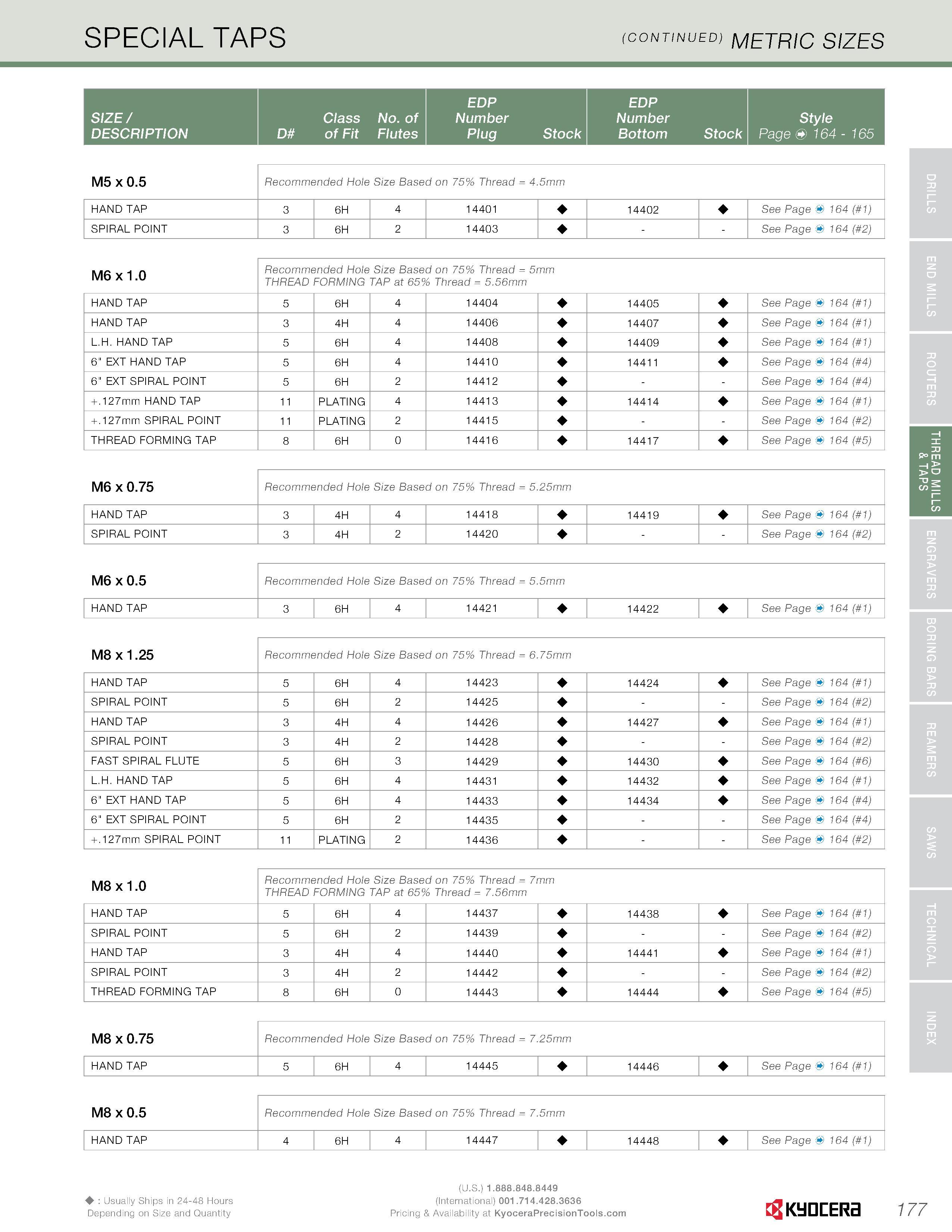

SPECIAL TAPS (continued) METRIC sizes EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION D of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 M5 x 0.5 Recommended Hole Size Based on 75% Thread = 4.5mm HAND TAP 3 6H 4 14401 14402 See Page & 164 ( 1) SPIRAL POINT 3 6H 2 14403 - - See Page & 164 ( 2) M6 x 1.0 Recommended Hole Size Based on 75% Thread = 5mm THREAD FORMING TAP at 65% Thread = 5.56mm HAND TAP 5 6H 4 14404 14405 See Page & 164 ( 1) HAND TAP 3 4H 4 14406 14407 See Page & 164 ( 1) L.H. HAND TAP 5 6H 4 14408 14409 See Page & 164 ( 1) 6" EXT HAND TAP 5 6H 4 14410 14411 See Page & 164 ( 4) 6" EXT SPIRAL POINT 5 6H 2 14412 - - See Page & 164 ( 4) + .127mm HAND TAP 11 PLATING 4 14413 14414 See Page & 164 ( 1) + .127mm SPIRAL POINT 11 PLATING 2 14415 - - See Page & 164 ( 2) THREAD FORMING TAP 8 6H 0 14416 14417 See Page & 164 ( 5) M6 x 0.75 Recommended Hole Size Based on 75% Thread = 5.25mm HAND TAP 3 4H 4 14418 14419 See Page & 164 ( 1) SPIRAL POINT 3 4H 2 14420 - - See Page & 164 ( 2) M6 x 0.5 Recommended Hole Size Based on 75% Thread = 5.5mm HAND TAP 3 6H 4 14421 14422 See Page & 164 ( 1) M8 x 1.25 Recommended Hole Size Based on 75% Thread = 6.75mm HAND TAP 5 6H 4 14423 14424 See Page & 164 ( 1) SPIRAL POINT 5 6H 2 14425 - - See Page & 164 ( 2) HAND TAP 3 4H 4 14426 14427 See Page & 164 ( 1) SPIRAL POINT 3 4H 2 14428 - - See Page & 164 ( 2) FAST SPIRAL FLUTE 5 6H 3 14429 14430 See Page & 164 ( 6) L.H. HAND TAP 5 6H 4 14431 14432 See Page & 164 ( 1) 6" EXT HAND TAP 5 6H 4 14433 14434 See Page & 164 ( 4) 6" EXT SPIRAL POINT 5 6H 2 14435 - - See Page & 164 ( 4) + .127mm SPIRAL POINT 11 PLATING 2 14436 - - See Page & 164 ( 2) M8 x 1.0 Recommended Hole Size Based on 75% Thread = 7mm THREAD FORMING TAP at 65% Thread = 7.56mm HAND TAP 5 6H 4 14437 14438 See Page & 164 ( 1) SPIRAL POINT 5 6H 2 14439 - - See Page & 164 ( 2) HAND TAP 3 4H 4 14440 14441 See Page & 164 ( 1) SPIRAL POINT 3 4H 2 14442 - - See Page & 164 ( 2) THREAD FORMING TAP 8 6H 0 14443 14444 See Page & 164 ( 5) M8 x 0.75 Recommended Hole Size Based on 75% Thread = 7.25mm HAND TAP 5 6H 4 14445 14446 See Page & 164 ( 1) M8 x 0.5 Recommended Hole Size Based on 75% Thread = 7.5mm HAND TAP 4 6H 4 14447 14448 See Page & 164 ( 1) Usually Ships in 24-48 Hours Depending on Size and Quantity LK ///
