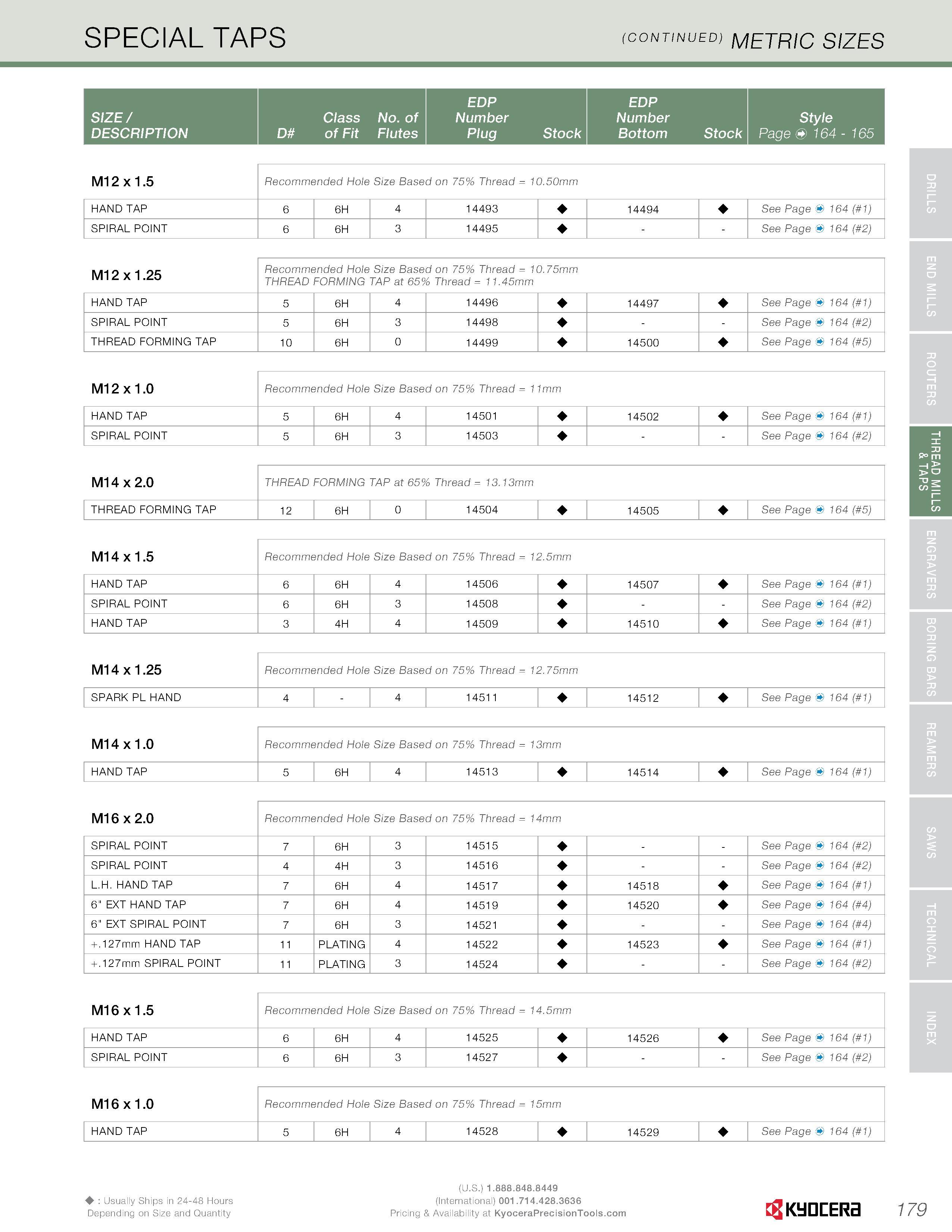

SPECIAL TAPS (continued) METRIC sizes EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION D of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 M12 x 1.5 Recommended Hole Size Based on 75% Thread = 10.50mm HAND TAP 6 6H 4 14493 14494 See Page & 164 ( 1) SPIRAL POINT 6 6H 3 14495 - - See Page & 164 ( 2) M12 x 1.25 Recommended Hole Size Based on 75% Thread = 10.75mm THREAD FORMING TAP at 65% Thread = 11.45mm HAND TAP 5 6H 4 14496 14497 See Page & 164 ( 1) SPIRAL POINT 5 6H 3 14498 - - See Page & 164 ( 2) THREAD FORMING TAP 10 6H 0 14499 14500 See Page & 164 ( 5) M12 x 1.0 Recommended Hole Size Based on 75% Thread = 11mm HAND TAP 5 6H 4 14501 14502 See Page & 164 ( 1) SPIRAL POINT 5 6H 3 14503 - - See Page & 164 ( 2) M14 x 2.0 THREAD FORMING TAP at 65% Thread = 13.13mm THREAD FORMING TAP 12 6H 0 14504 14505 See Page & 164 ( 5) M14 x 1.5 Recommended Hole Size Based on 75% Thread = 12.5mm HAND TAP 6 6H 4 14506 14507 See Page & 164 ( 1) SPIRAL POINT 6 6H 3 14508 - - See Page & 164 ( 2) HAND TAP 3 4H 4 14509 14510 See Page & 164 ( 1) M14 x 1.25 Recommended Hole Size Based on 75% Thread = 12.75mm SPARK PL HAND 4 4 14511 14512 See Page & 164 ( 1) M14 x 1.0 Recommended Hole Size Based on 75% Thread = 13mm HAND TAP 5 6H 4 14513 14514 See Page & 164 ( 1) M16 x 2.0 Recommended Hole Size Based on 75% Thread = 14mm SPIRAL POINT 7 6H 3 14515 See Page & 164 ( 2) SPIRAL POINT 4 4H 3 14516 See Page & 164 ( 2) L.H. HAND TAP 7 6H 4 14517 14518 See Page & 164 ( 1) 6" EXT HAND TAP 7 6H 4 14519 14520 See Page & 164 ( 4) 6" EXT SPIRAL POINT 7 6H 3 14521 See Page & 164 ( 4) + .127mm HAND TAP 11 PLATING 4 14522 14523 See Page & 164 ( 1) + .127mm SPIRAL POINT 11 PLATING 3 14524 See Page & 164 ( 2) M16 x 1.5 Recommended Hole Size Based on 75% Thread = 14.5mm HAND TAP 6 6H 4 14525 14526 See Page & 164 ( 1) SPIRAL POINT 6 6H 3 14527 - - See Page & 164 ( 2) M16 x 1.0 Recommended Hole Size Based on 75% Thread = 15mm HAND TAP 5 6H 4 14528 14529 See Page & 164 ( 1) Usually Ships in 24-48 Hours Depending on Size and Quantity (U.S.) (International) 001.714.428.3636 179 Pricing & Availability at LK 1/9
