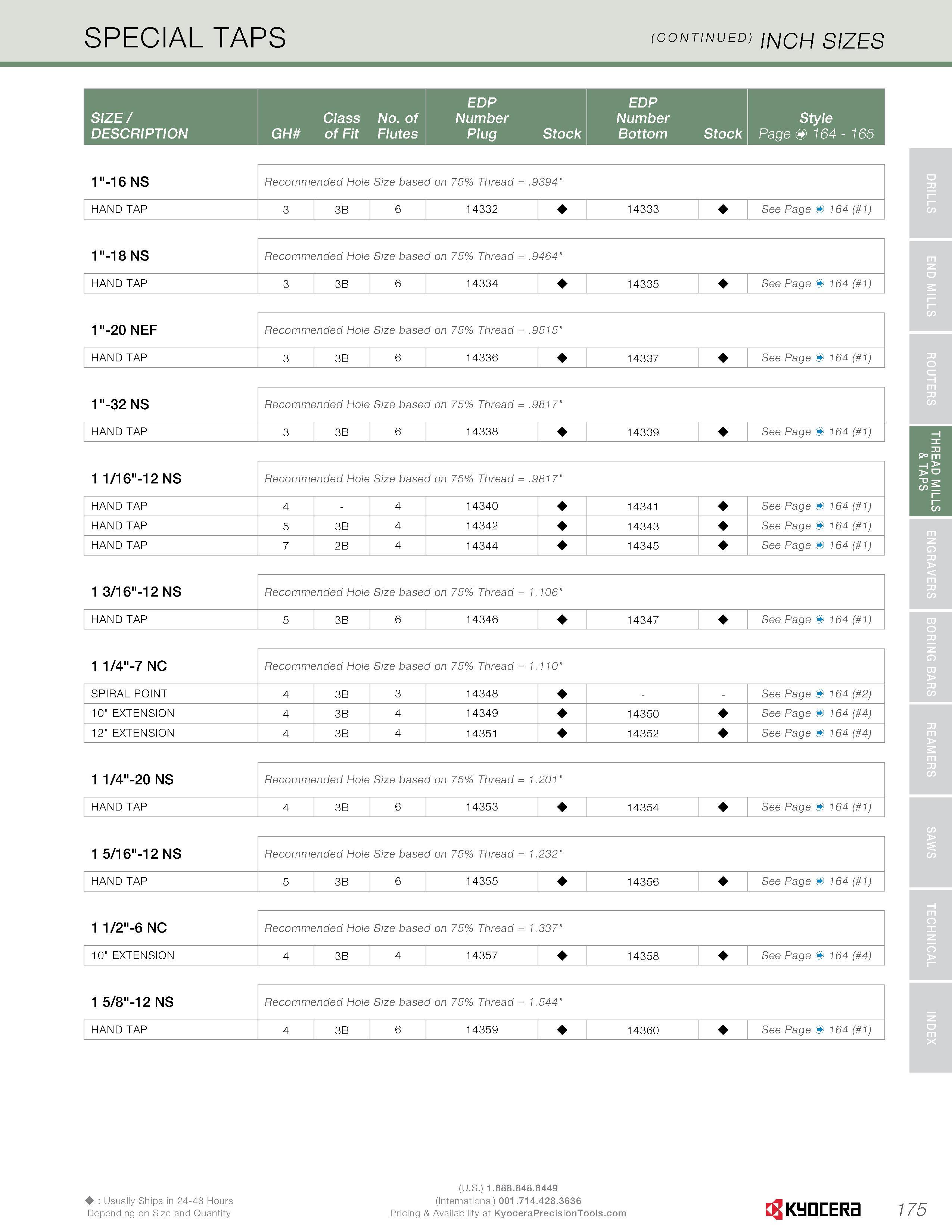

SPECIAL TAPS (continued) inch sizes EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION GH of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 1"-16 NS Recommended Hole Size based on 75% Thread = .9394" HAND TAP 3 3B 6 14332 14333 See Page & 164 ( 1) 1"-18 NS Recommended Hole Size based on 75% Thread = .9464" HAND TAP 3 3B 6 14334 14335 See Page & 164 ( 1) 1"-20 NEF Recommended Hole Size based on 75% Thread = .9515" HAND TAP 3 3B 6 14336 14337 See Page & 164 ( 1) 1"-32 NS Recommended Hole Size based on 75% Thread = .9817" HAND TAP 3 3B 6 14338 14339 See Page & 164 ( 1) 1 1/16"-12 NS Recommended Hole Size based on 75% Thread = .9817" HAND TAP 4 4 14340 14341 See Page & 164 ( 1) HAND TAP 5 3B 4 14342 14343 See Page & 164 ( 1) HAND TAP 7 2B 4 14344 14345 See Page & 164 ( 1) 1 3/16"-12 NS Recommended Hole Size based on 75% Thread = 1. 106" HAND TAP 5 3B 6 14346 14347 See Page & 164 ( 1) 1 1/4"-7 NC Recommended Hole Size based on 75% Thread = 1.110" SPIRAL POINT 4 3B 3 14348 - - See Page & 164 ( 2) 10" EXTENSION 4 3B 4 14349 14350 See Page & 164 ( 4) 12" EXTENSION 4 3B 4 14351 14352 See Page & 164 ( 4) 1 1/4"-20 NS Recommended Hole Size based on 75% Thread = 1.201" HAND TAP 4 3B 6 14353 14354 See Page & 164 ( 1) 1 5/16"-12 NS Recommended Hole Size based on 75% Thread = 1.232" HAND TAP 5 3B 6 14355 14356 See Page & 164 ( 1) 1 1/2"-6 NC Recommended Hole Size based on 75% Thread = 1.337" 10" EXTENSION 4 3B 4 14357 14358 See Page & 164 ( 4) 1 5/8"-12 NS Recommended Hole Size based on 75% Thread = 1.544" HAND TAP 4 3B 6 14359 14360 See Page & 164 ( 1) Usually Ships in 24-48 Hours Depending on Size and Quantity Kyocera 175
