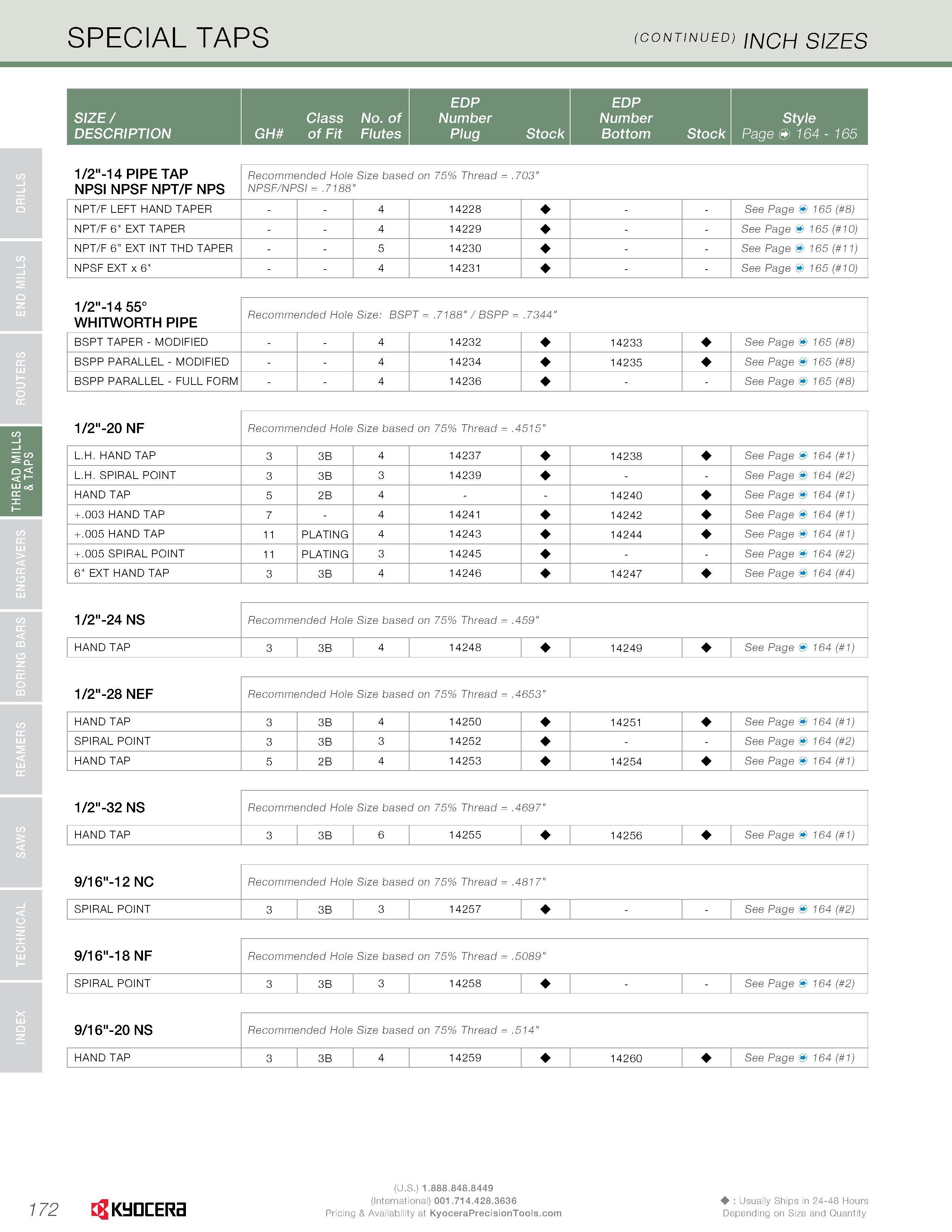

174 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.172

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 172 0174 ENG Lab2u

INDEX TECHNICAL SAWS REAMERS BORING BARS ENGRAVERS THREAD nMJLLS ROUTERS END MILLS DRILLS & TAPS SPECIAL TAPS (continued) inch sizes EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION GH of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 1/2"-14 PIPE TAP NPSI NPSF NPT/F NPS Recommended Hole Size based on 75% Thread = .703" NPSF/NPSI = .7188" NPT/F LEFT HAND TAPER 4 14228 - - See Page & 165 ( 8) NPT/F 6" EXT TAPER 4 14229 - - See Page & 165 ( 10) NPT/F 6” EXT INT THD TAPER 5 14230 - - See Page & 165 ( 11) NPSF EXT x 6" 4 14231 - - See Page & 165 ( 10) 1/2"-14 55° WHITWORTH PIPE Recommended Hole Size: BSPT = .7188" / BSPP = .7344" BSPT TAPER - MODIFIED - - 4 14232 14233 See Page & 165 ( 8) BSPP PARALLEL - MODIFIED - - 4 14234 14235 See Page & 165 ( 8) BSPP PARALLEL - FULL FORM - - 4 14236 - - See Page & 165 ( 8) 1/2"-20 NF Recommended Hole Size based on 75% Thread = .4515" L.H. HAND TAP 3 3B 4 14237 14238 See Page & 164 ( 1) L.H. SPIRAL POINT 3 3B 3 14239 - - See Page & 164 ( 2) HAND TAP 5 2B 4 - 14240 See Page & 164 ( 1) + .003 HAND TAP 7 4 14241 14242 See Page & 164 ( 1) + .005 HAND TAP 11 PLATING 4 14243 14244 See Page & 164 ( 1) + .005 SPIRAL POINT 11 PLATING 3 14245 - - See Page & 164 ( 2) 6" EXT HAND TAP 3 3B 4 14246 14247 See Page & 164 ( 4) 1/2"-24 NS Recommended Hole Size based on 75% Thread = .459" HAND TAP 3 3B 4 14248 14249 See Page & 164 ( 1) 1/2"-28 NEF Recommended Hole Size based on 75% Thread = .4653" HAND TAP 3 3B 4 14250 14251 See Page & 164 ( 1) SPIRAL POINT 3 3B 3 14252 - - See Page & 164 ( 2) HAND TAP 5 2B 4 14253 14254 See Page & 164 ( 1) 1/2"-32 NS Recommended Hole Size based on 75% Thread = .4697" HAND TAP 3 3B 6 14255 14256 See Page & 164 ( 1) 9/16"-12 NC Recommended Hole Size based on 75% Thread = .4817" SPIRAL POINT 3 3B 3 14257 - - See Page & 164 ( 2) 9/16"-18 NF Recommended Hole Size based on 75% Thread = .5089" SPIRAL POINT 3 3B 3 14258 - - See Page & 164 ( 2) 9/16"-20 NS Recommended Hole Size based on 75% Thread = .514" HAND TAP 3 3B 4 14259 14260 See Page & 164 ( 1) 172 Kyocera Usually Ships in 24-48 Hours Depending on Size and Quantity
