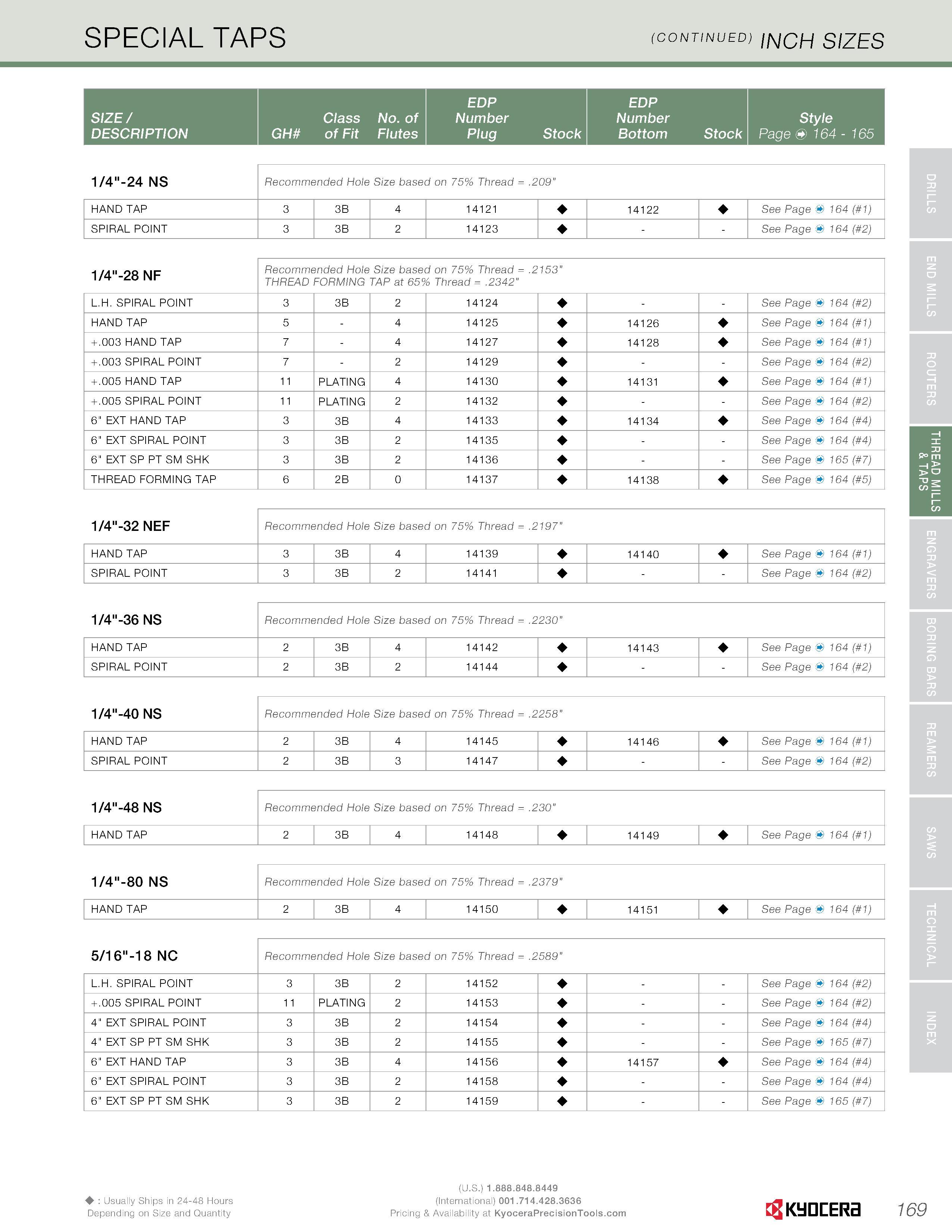

SPECIAL TAPS (continued) inch sizes EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION GH of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 1/4"-24 NS Recommended Hole Size based on 75% Thread = .209" HAND TAP 3 3B 4 14121 14122 See Page & 164 ( 1) SPIRAL POINT 3 3B 2 14123 - - See Page & 164 ( 2) 1/4"-28 NF Recommended Hole Size based on 75% Thread = .2153" THREAD FORMING TAP at 65% Thread = .2342" L.H. SPIRAL POINT 3 3B 2 14124 - - See Page & 164 ( 2) HAND TAP 5 4 14125 14126 See Page & 164 ( 1) + .003 HAND TAP 7 4 14127 14128 See Page & 164 ( 1) + .003 SPIRAL POINT 7 2 14129 - - See Page & 164 ( 2) + .005 HAND TAP 11 PLATING 4 14130 14131 See Page & 164 ( 1) + .005 SPIRAL POINT 11 PLATING 2 14132 - - See Page & 164 ( 2) 6" EXT HAND TAP 3 3B 4 14133 14134 See Page & 164 ( 4) 6" EXT SPIRAL POINT 3 3B 2 14135 - - See Page & 164 ( 4) 6" EXT SP PT SM SHK 3 3B 2 14136 - - See Page & 165 ( 7) THREAD FORMING TAP 6 2B 0 14137 14138 See Page & 164 ( 5) 1/4"-32 NEF Recommended Hole Size based on 75% Thread = .2197" HAND TAP 3 3B 4 14139 14140 See Page & 164 ( 1) SPIRAL POINT 3 3B 2 14141 - - See Page & 164 ( 2) 1/4"-36 NS Recommended Hole Size based on 75% Thread = .2230" HAND TAP 2 3B 4 14142 14143 See Page & 164 ( 1) SPIRAL POINT 2 3B 2 14144 - - See Page & 164 ( 2) 1/4"-40 NS Recommended Hole Size based on 75% Thread = .2258" HAND TAP 2 3B 4 14145 14146 See Page & 164 ( 1) SPIRAL POINT 2 3B 3 14147 - - See Page & 164 ( 2) 1/4"-48 NS Recommended Hole Size based on 75% Thread = .230" HAND TAP 2 3B 4 14148 14149 See Page & 164 ( 1) 1/4"-80 NS Recommended Hole Size based on 75% Thread = .2379" HAND TAP 2 3B 4 14150 14151 See Page & 164 ( 1) 5/16"-18 NC Recommended Hole Size based on 75% Thread = .2589" L.H. SPIRAL POINT 3 3B 2 14152 - - See Page & 164 ( 2) + .005 SPIRAL POINT 11 PLATING 2 14153 - - See Page & 164 ( 2) 4" EXT SPIRAL POINT 3 3B 2 14154 - - See Page & 164 ( 4) 4" EXT SP PT SM SHK 3 3B 2 14155 - - See Page & 165 ( 7) 6" EXT HAND TAP 3 3B 4 14156 14157 See Page & 164 ( 4) 6" EXT SPIRAL POINT 3 3B 2 14158 - - See Page & 164 ( 4) 6" EXT SP PT SM SHK 3 3B 2 14159 - - See Page & 165 ( 7) (U.S.) Usually Ships in 24-48 Hours (International) 001.714.428.3636 Depending on Size and Quantity Pricing & Availability at I 69
