173 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.171

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 171 0173 ENG Lab2u

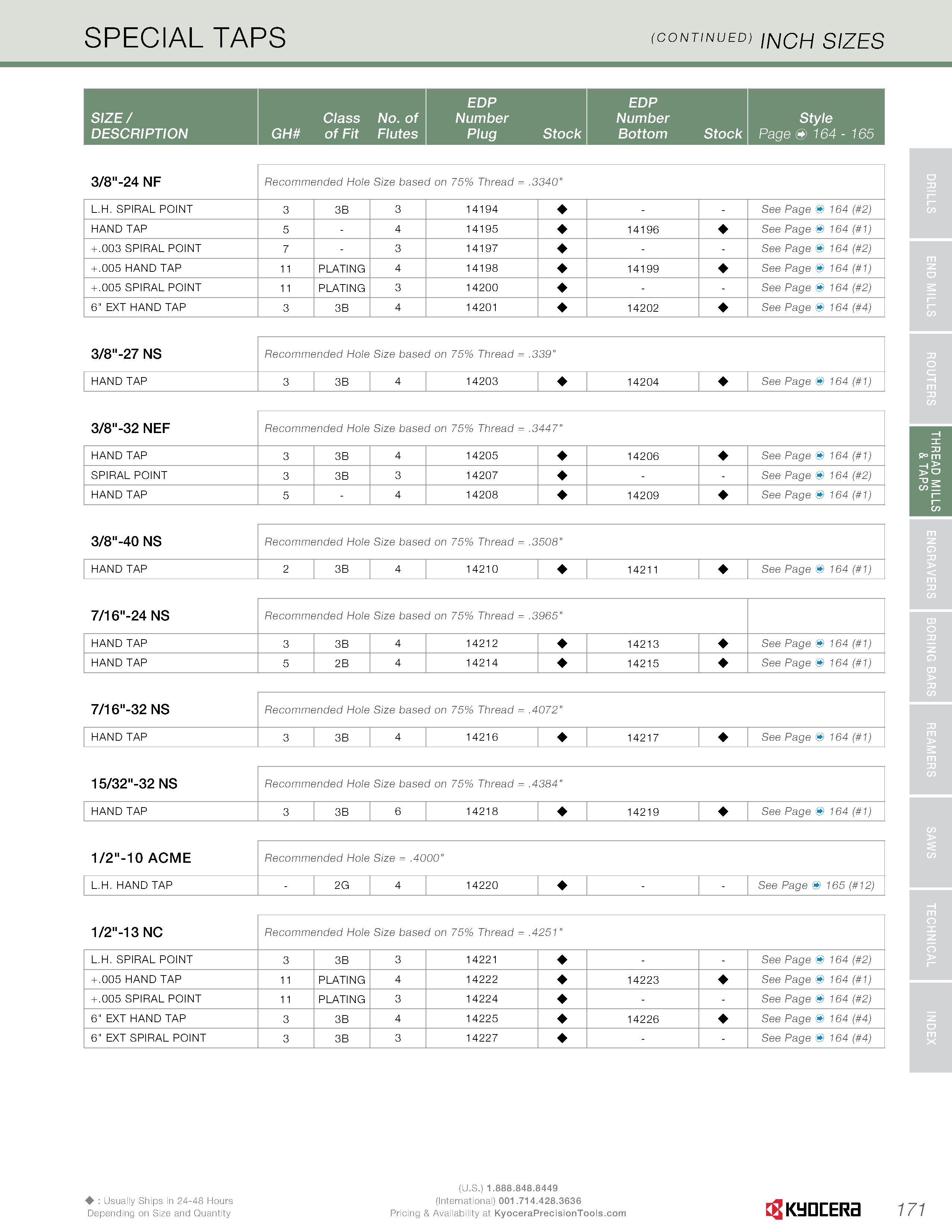

SPECIAL TAPS ((CONTINUED) INCH SIZES EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION GH of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 3/8"-24 NF Recommended Hole Size based on 75% Thread = .3340" L.H. SPIRAL POINT 3 3B 3 14194 - - See Page & 164 ( 2) HAND TAP 5 4 14195 14196 See Page & 164 ( 1) + .003 SPIRAL POINT 7 3 14197 - - See Page & 164 ( 2) + .005 HAND TAP 11 PLATING 4 14198 14199 See Page & 164 ( 1) + .005 SPIRAL POINT 11 PLATING 3 14200 - - See Page & 164 ( 2) 6" EXT HAND TAP 3 3B 4 14201 14202 See Page & 164 ( 4) 3/8"-27 NS Recommended Hole Size based on 75% Thread = .339" HAND TAP 3 3B 4 14203 14204 See Page & 164 ( 1) 3/8"-32 NEF Recommended Hole Size based on 75% Thread = .3447" HAND TAP 3 3B 4 14205 14206 See Page & 164 ( 1) SPIRAL POINT 3 3B 3 14207 - - See Page & 164 ( 2) HAND TAP 5 4 14208 14209 See Page & 164 ( 1) 3/8"-40 NS Recommended Hole Size based on 75% Thread = .3508" HAND TAP 2 3B 4 14210 14211 See Page & 164 ( 1) 7/16"-24 NS Recommended Hole Size based on 75% Thread = .3965" HAND TAP 3 3B 4 14212 14213 See Page & 164 ( 1) HAND TAP 5 2B 4 14214 14215 See Page & 164 ( 1) 7/16"-32 NS Recommended Hole Size based on 75% Thread = .4072" HAND TAP 3 3B 4 14216 14217 See Page & 164 ( 1) 15/32"-32 NS Recommended Hole Size based on 75% Thread = .4384" HAND TAP 3 3B 6 14218 14219 See Page & 164 ( 1) 1/2"-10 ACME Recommended Hole Size = .4000" L.H. HAND TAP - 2G 4 14220 - - See Page & 165 ( 12) 1/2"-13 NC Recommended Hole Size based on 75% Thread = .4251" L.H. SPIRAL POINT 3 3B 3 14221 - - See Page & 164 ( 2) + .005 HAND TAP 11 PLATING 4 14222 14223 See Page & 164 ( 1) + .005 SPIRAL POINT 11 PLATING 3 14224 - - See Page & 164 ( 2) 6" EXT HAND TAP 3 3B 4 14225 14226 See Page & 164 ( 4) 6" EXT SPIRAL POINT 3 3B 3 14227 - - See Page & 164 ( 4) Usually Ships in 24-48 Hours Depending on Size and Quantity Kyocera 171
