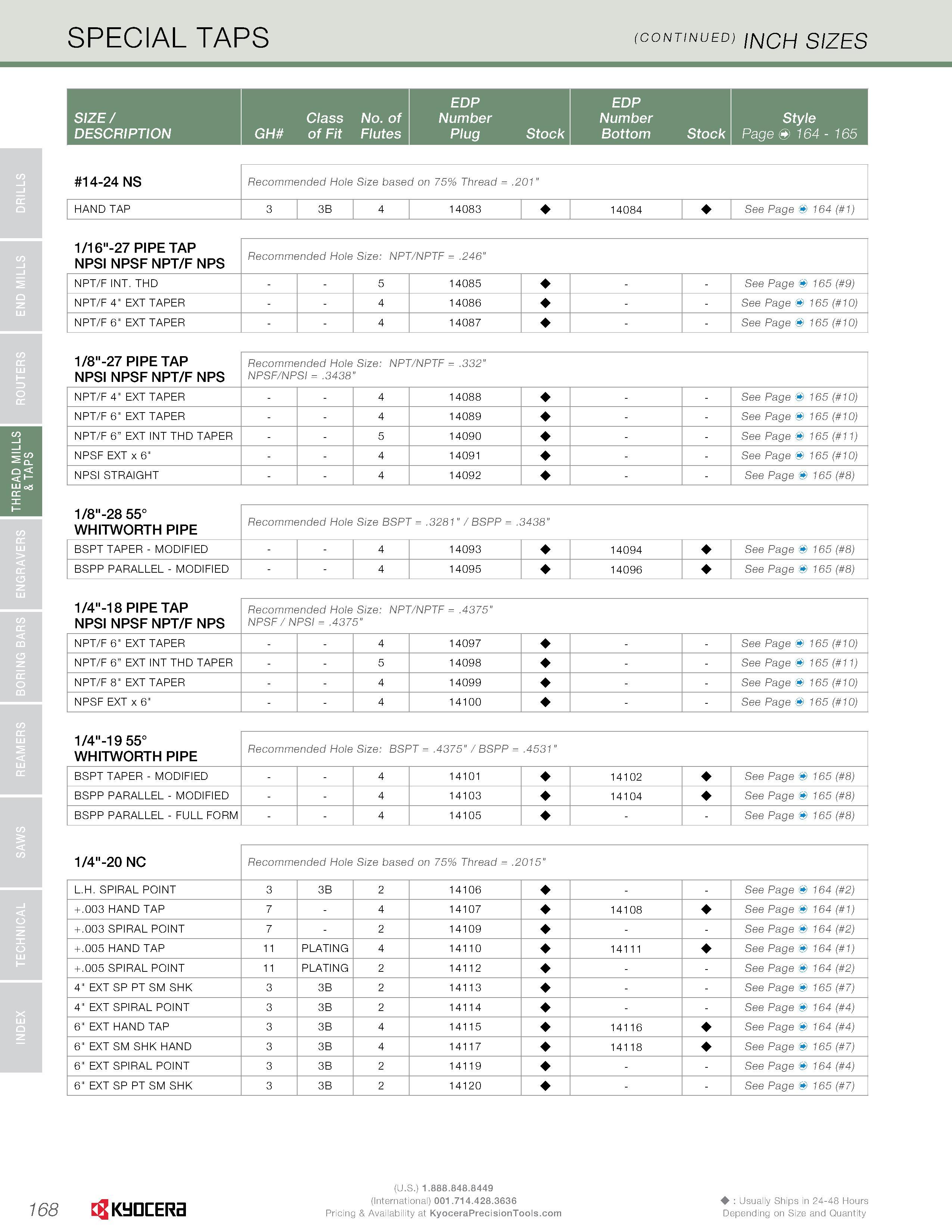

170 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.168

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 168 0170 ENG Lab2u

SPECIAL TAPS (CONTINUED) INCH SIZES EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION GH of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 14-24 NS Recommended Hole Size based on 75% Thread = .201" HAND TAP 3 3B 4 14083 14084 See Page & 164 ( 1) 1/16"-27 PIPE TAP NPSI NPSF NPT/F NPS Recommended Hole Size: NPT/NPTF = .246" NPT/F INT. THD - - 5 14085 - - See Page & 165 ( 9) NPT/F 4" EXT TAPER - - 4 14086 - - See Page & 165 ( 10) NPT/F 6" EXT TAPER - - 4 14087 - - See Page & 165 ( 10) 1/8"-27 PIPE TAP NPSI NPSF NPT/F NPS Recommended Hole Size: NPT/NPTF = .332" NPSF/NPSI = .3438" NPT/F 4" EXT TAPER - - 4 14088 - - See Page & 165 ( 10) NPT/F 6" EXT TAPER - - 4 14089 - - See Page & 165 ( 10) NPT/F 6” EXT INT THD TAPER - - 5 14090 - - See Page & 165 ( 11) NPSF EXT x 6" - - 4 14091 - - See Page & 165 ( 10) NPSI STRAIGHT - - 4 14092 - - See Page & 165 ( 8) 1/8"-28 55° WHITWORTH PIPE Recommended Hole Size BSPT = .3281" / BSPP = .3438" BSPT TAPER - MODIFIED - - 4 14093 14094 See Page & 165 ( 8) BSPP PARALLEL - MODIFIED - - 4 14095 14096 See Page & 165 ( 8) 1/4"-18 PIPE TAP NPSI NPSF NPT/F NPS Recommended Hole Size: NPT/NPTF = .4375" NPSF / NPSI = .4375" NPT/F 6" EXT TAPER - - 4 14097 - - See Page & 165 ( 10) NPT/F 6” EXT INT THD TAPER - - 5 14098 - - See Page & 165 ( 11) NPT/F 8" EXT TAPER - - 4 14099 - - See Page & 165 ( 10) NPSF EXT x 6" - - 4 14100 - - See Page & 165 ( 10) 1/4"-19 55° WHITWORTH PIPE Recommended Hole Size: BSPT = .4375" / BSPP = .4531" BSPT TAPER - MODIFIED - - 4 14101 14102 See Page & 165 ( 8) BSPP PARALLEL - MODIFIED - - 4 14103 14104 See Page & 165 ( 8) BSPP PARALLEL - FULL FORM - - 4 14105 - - See Page & 165 ( 8) 1/4"-20 NC Recommended Hole Size based on 75% Thread = .2015" L.H. SPIRAL POINT 3 3B 2 14106 - - See Page & 164 ( 2) + .003 HAND TAP 7 4 14107 14108 See Page & 164 ( 1) + .003 SPIRAL POINT 7 2 14109 - - See Page & 164 ( 2) + .005 HAND TAP 11 PLATING 4 14110 14111 See Page & 164 ( 1) + .005 SPIRAL POINT 11 PLATING 2 14112 - - See Page & 164 ( 2) 4" EXT SP PT SM SHK 3 3B 2 14113 - - See Page & 165 ( 7) 4" EXT SPIRAL POINT 3 3B 2 14114 - - See Page & 164 ( 4) 6" EXT HAND TAP 3 3B 4 14115 14116 See Page & 164 ( 4) 6" EXT SM SHK HAND 3 3B 4 14117 14118 See Page & 165 ( 7) 6" EXT SPIRAL POINT 3 3B 2 14119 - - See Page & 164 ( 4) 6" EXT SP PT SM SHK 3 3B 2 14120 - - See Page & 165 ( 7) (U.S.) (International) 001.714.428.3636 Usually Ships in 24-48 Hours I 68 Pricing & Availability at Depending on Size and Quantity
