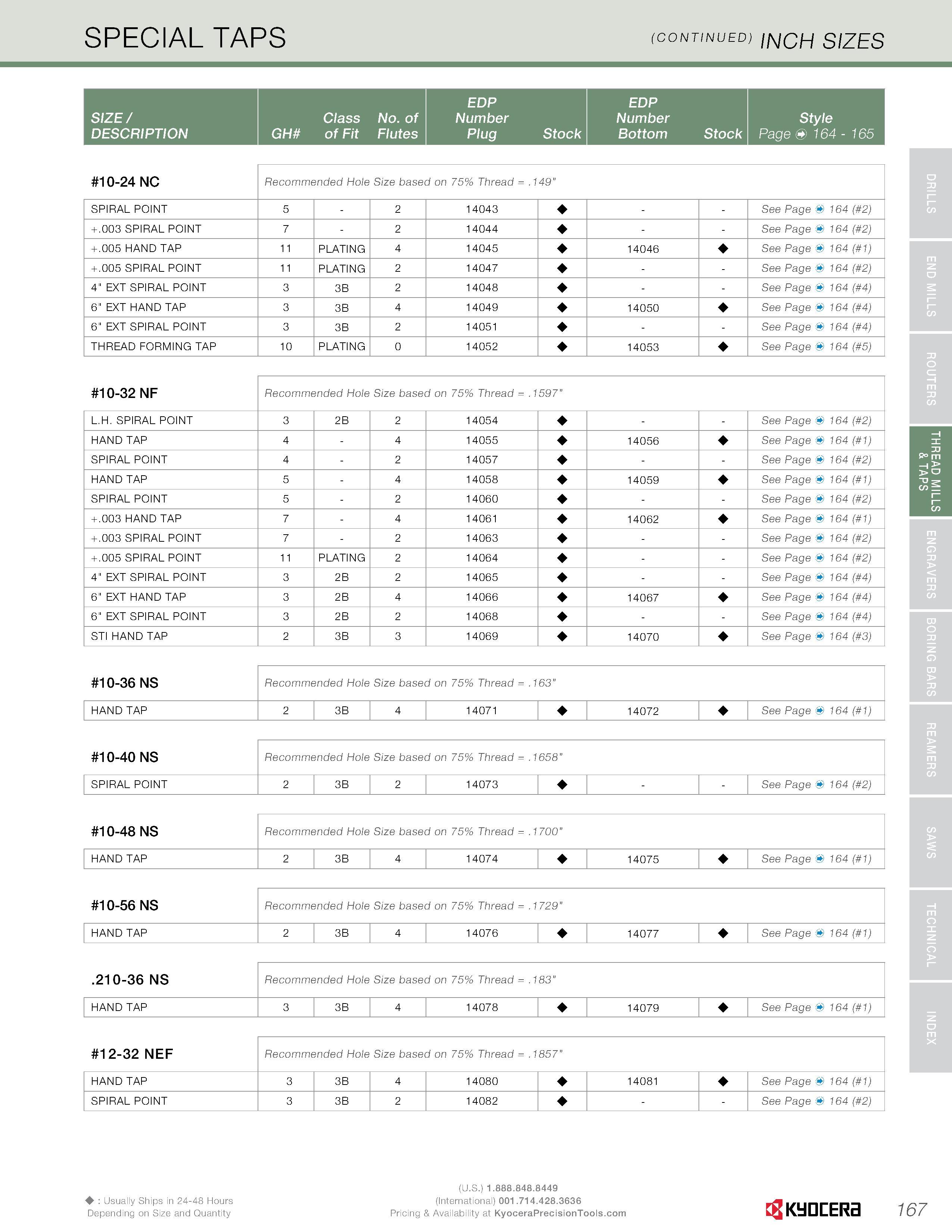

169 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.167

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 167 0169 ENG Lab2u

SPECIAL TAPS (continued) inch sizes EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION GH of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 10-24 NC Recommended Hole Size based on 75% Thread = .149" SPIRAL POINT 5 2 14043 - - See Page & 164 ( 2) + .003 SPIRAL POINT 7 2 14044 - - See Page & 164 ( 2) + .005 HAND TAP 11 PLATING 4 14045 14046 See Page & 164 ( 1) + .005 SPIRAL POINT 11 PLATING 2 14047 - - See Page & 164 ( 2) 4" EXT SPIRAL POINT 3 3B 2 14048 - - See Page & 164 ( 4) 6" EXT HAND TAP 3 3B 4 14049 14050 See Page & 164 ( 4) 6" EXT SPIRAL POINT 3 3B 2 14051 - - See Page & 164 ( 4) THREAD FORMING TAP 10 PLATING 0 14052 14053 See Page & 164 ( 5) 10-32 NF Recommended Hole Size based on 75% Thread = .1597" L.H. SPIRAL POINT 3 2B 2 14054 - - See Page & 164 ( 2) HAND TAP 4 4 14055 14056 See Page & 164 ( 1) SPIRAL POINT 4 2 14057 - - See Page & 164 ( 2) HAND TAP 5 4 14058 14059 See Page & 164 ( 1) SPIRAL POINT 5 2 14060 - - See Page & 164 ( 2) + .003 HAND TAP 7 4 14061 14062 See Page & 164 ( 1) + .003 SPIRAL POINT 7 2 14063 - - See Page & 164 ( 2) + .005 SPIRAL POINT 11 PLATING 2 14064 - - See Page & 164 ( 2) 4" EXT SPIRAL POINT 3 2B 2 14065 - - See Page & 164 ( 4) 6" EXT HAND TAP 3 2B 4 14066 14067 See Page & 164 ( 4) 6" EXT SPIRAL POINT 3 2B 2 14068 - - See Page & 164 ( 4) STI HAND TAP 2 3B 3 14069 14070 See Page & 164 ( 3) 10-36 NS Recommended Hole Size based on 75% Thread = .163" HAND TAP 2 3B 4 14071 14072 See Page & 164 ( 1) 10-40 NS Recommended Hole Size based on 75% Thread = .1658" SPIRAL POINT 2 3B 2 14073 - - See Page & 164 ( 2) 10-48 NS Recommended Hole Size based on 75% Thread = .1700" HAND TAP 2 3B 4 14074 14075 See Page & 164 ( 1) 10-56 NS Recommended Hole Size based on 75% Thread = .1729" HAND TAP 2 3B 4 14076 14077 See Page & 164 ( 1) .210-36 NS Recommended Hole Size based on 75% Thread = .183" HAND TAP 3 3B 4 14078 14079 See Page & 164 ( 1) 12-32 NEF Recommended Hole Size based on 75% Thread = .1857" HAND TAP 3 3B 4 14080 14081 See Page & 164 ( 1) SPIRAL POINT 3 3B 2 14082 - - See Page & 164 ( 2) (U.S.) Usually Ships in 24-48 Hours (International) 001.714.428.3636 Depending on Size and Quantity Pricing & Availability at 1 67
