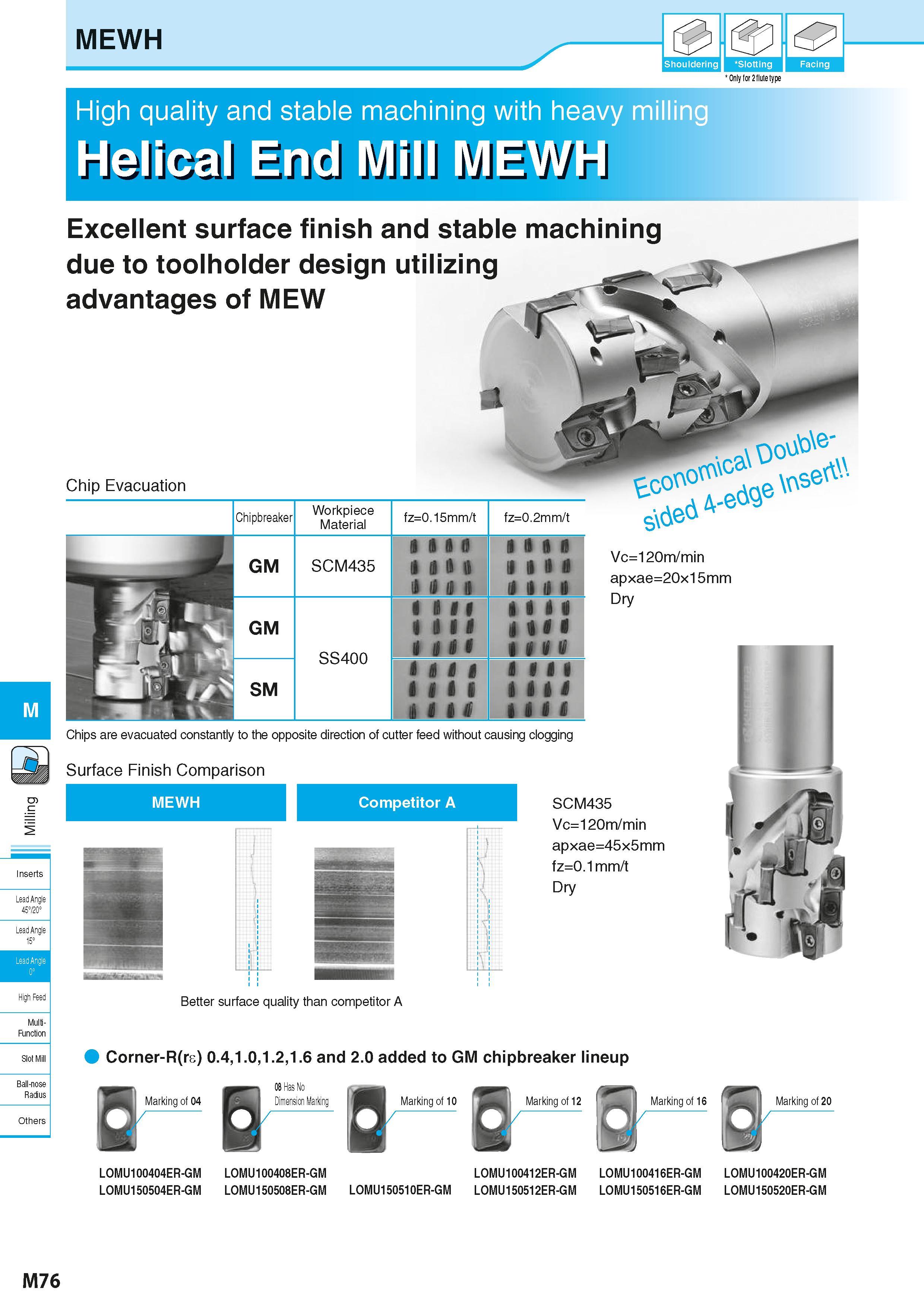

Lead Angle 45720° Lead Angle 15° High Feec Multi- Function Ball-nose Radius MEWH High quality and stable machining with heavy milling Helical End Mill ME Shouldering ‘Slotting Facing Only for 2 flute type Wl Excellent surface finish and stable machining due to toolholder design utilizing advantages of MEW y Chip Evacuation Chipbreaker Workpiece Material fz=0.15mm/t fz=0.2mm/t GM SCM435 1 fl 0 HM J fl (1 H 1 II fl fl lion J II U fl GM SS400 1 8 1 1 tan NH llll iMi SM 1 fl I fl 1 1 1 i it 1 t i ill I 1 111 111 i fccOT'1 yde1 Vc=120m/min apxae=20x15mm Dry Chips are evacuated constantly to the opposite direction of cutter feed without causing clogging Surface Finish Comparison MEWH Competitor A SCM435 Vc=120m/min apxae=45x5mm fz=0.1mm/t Dry Better surface quality than competitor A Corner-R(rs) 0.4,1.0,1.2,1.6 and 2.0 added to GM chipbreaker lineup Marking of 04 BT 08 Has Nc Dimension Marking Marking of 10 Marking of 12 il Marking of 16 Marking of 20 B fl Q B L0MU100404ER-GM L0MU100408ER-GM L0MU100412ER-GM L0MU100416ER-GM L0MU100420ER-GM L0MU150504ER-GM L0MU150508ER-GM L0MU150510ER-GM L0MU150512ER-GM L0MU150516ER-GM L0MU150520ER-GM Slot Mi M76
