765 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M79

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M79 0765 Lab2u

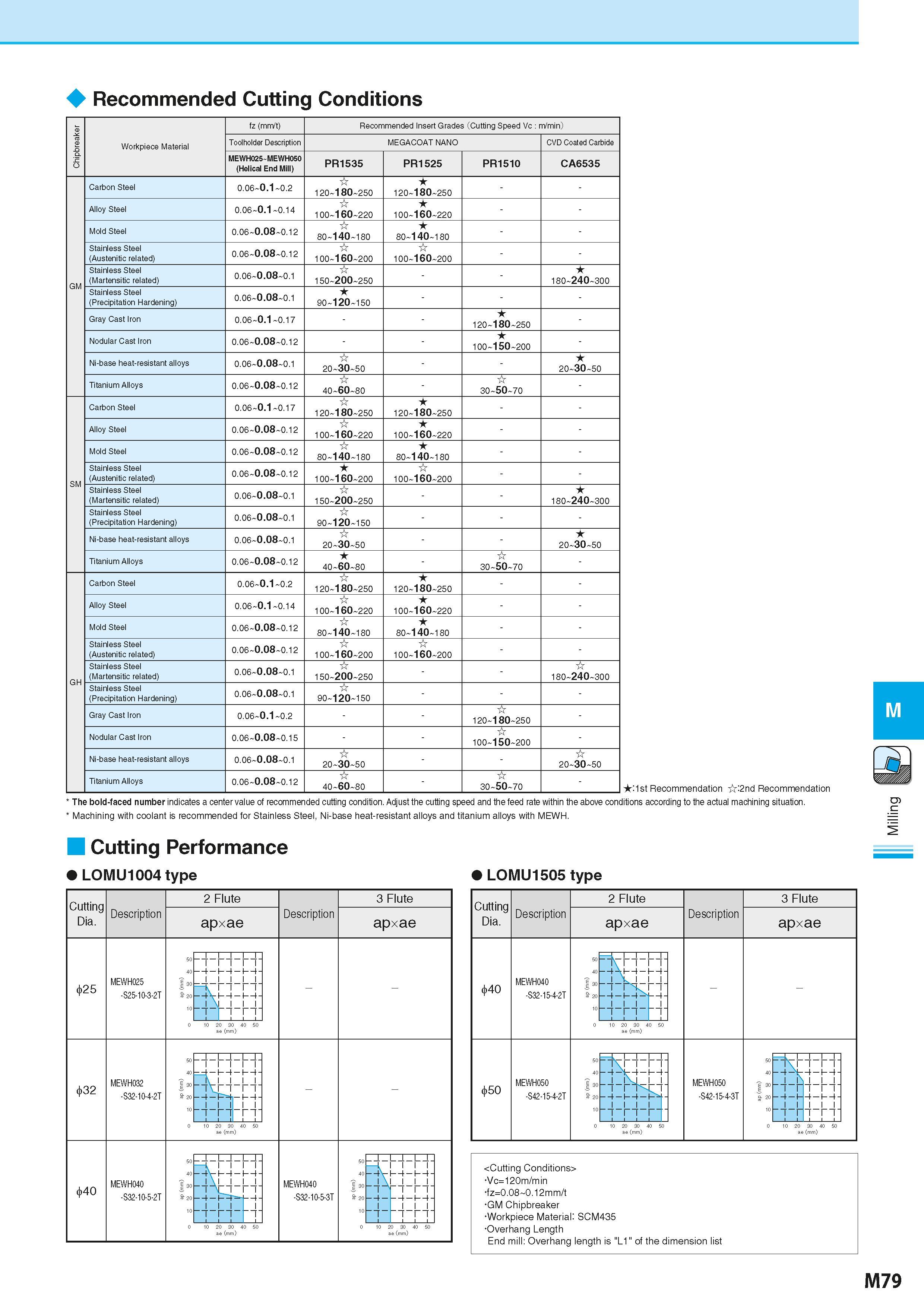

Recommended Cutting Conditions Chipbreaker fz (mm/t) Recommended Insert Grades (Cutting Speed Vc m/min) Workpiece Material Toolholder Description MEGACOAT NANO CVD Coated Carbide MEWH025 MEWH050 (Helical End Mill) PR1535 PR1525 PR1510 CA6535 Carbon Steel 0.06 0.1 0.2 120 180 250 120 180 250 Alloy Steel 0.06 0.1 0.14 100 160 220 100 160 220 Mold Steel 0.06 0.08 0.12 80 140 180 80 140 180 Stainless Steel (Austenitic related) 0.06 0.08 0.12 100 160 200 100 160 200 GM Stainless Steel (Martensitic related) 0.06 0.08 0.1 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.1 90 120 150 Gray Cast Iron 0.06 0.1 0.17 120 180 250 Nodular Cast Iron 0.06 0.08 0.12 100 150 200 Ni-base heat-resistant alloys 0.06 0.08 0.1 20 30 50 20 30 50 Titanium Alloys 0.06 0.08 0.12 40 60 80 30 50 70 Carbon Steel 0.06 0.1 0.17 120 180 250 120 180 250 Alloy Steel 0.06 0.08 0.12 100 160 220 100 160 220 Mold Steel 0.06 0.08 0.12 80 140 180 80 140 180 SM Stainless Steel (Austenitic related) 0.06 0.08 0.12 100 160 200 100 160 200 Stainless Steel (Martensitic related) 0.06 0.08 0.1 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.1 90 120 150 Ni-base heat-resistant alloys 0.06 0.08 0.1 20 30 50 20 30 50 Titanium Alloys 0.06 0.08 0.12 40 60 80 30 50 70 Carbon Steel 0.06 0.1 0.2 120 180 250 120 180 250 Alloy Steel 0.06 0.1 0.14 100 160 220 100 160 220 Mold Steel 0.06 0.08 0.12 80 140 180 80 140 180 Stainless Steel (Austenitic related) 0.06 0.08 0.12 100 160 200 100 160 200 GH Stainless Steel (Martensitic related) 0.06 0.08 0.1 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.1 90 120 150 Gray Cast Iron 0.06 0.1 0.2 120 180 250 Nodular Cast Iron 0.06 0.08 0.15 100 150 200 Ni-base heat-resistant alloys 0.06 0.08 0.1 20 30 50 20 30 50 Titanium Alloys 0.06 0.08 0.12 40 60 80 30 50 70 1st Recommendation tV 2nd Recommendation The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Machining with coolant is recommended for Stainless Steel, Ni-base heat-resistant alloys and titanium alloys with MEWH. Cutting Performance LOMU1004 type LOMU1505 type Cutting Dia. 25 32 40 Description MEWH025 -S25-10-3-2T MEWH032 -S32-10-4-2T MEWH040 -S32-10-5-2T 2 Flute apxae L l I I I I I I -4-1 \-\ \- L l I I I -I \-\ t- j i I I I I k i i i r i-Vi i-i i-Li ii i i h ht r 1 1 f 1 1 1 1 -1-4-i 1 -f PH 1 1 -1-41 1 1 1 \ 1 r \ i V-, i i 10 20 30 40 50 Description MEWH040 -S32-10-5-3T 3 Flute apxae I L L II p i i i i r iVi i-i I I \ I I Cutting Dia. 40 50 Description MEWH040 -S32-15-4-2T MEWH050 -S42-15-4-2T 2 Flute apxae Description MEWH050 -S42-15-4-3T 3 Flute apxae Is i i i 1- i x i i i i i i i n i i i - 1 i i i 1i i i Vc=120m/min fz=0.08 0.12mm/t GM Chipbreaker Workpiece Material: SCM435 Overhang Length End mill: Overhang length is "L1" of the dimension list 0 10 20 30 40 50 ae (mm; 20 30 40 50 ae (mm; 0 10 20 30 40 50 ae (mm; 0 10 20 30 40 50 ae (mm; 0 10 20 30 40 50 ae (mm: M79
