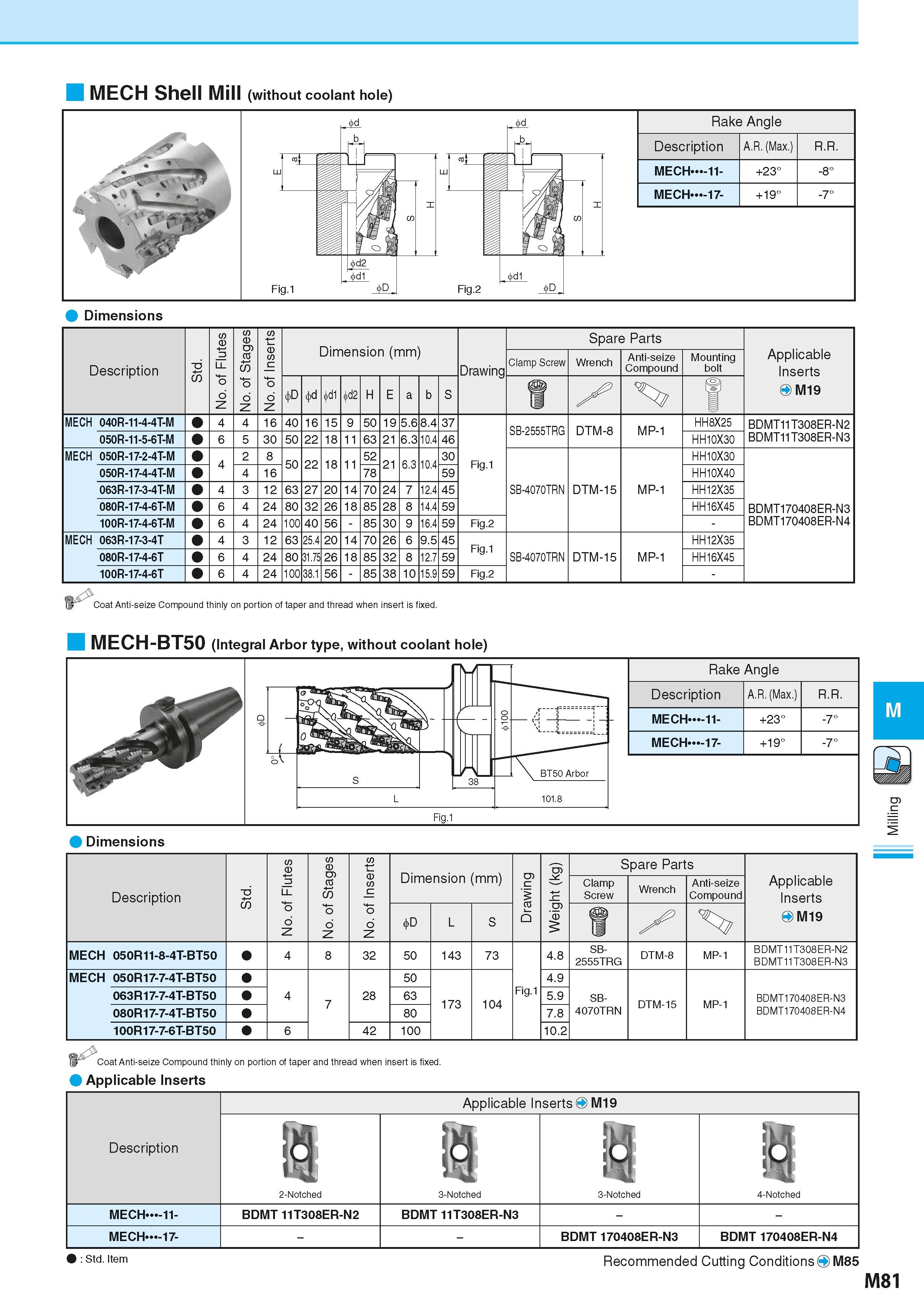

MECH Shell Mill (without coolant hole) Dimensions Description -6 w No. of Flutes No. of Stages No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Drawing Spare Parts Applicable Inserts OM19 Clamp Screw Wrench Anti-seize Compound Mounting bolt 4>D 4>d 4>d1 4,d2 H E a b S MECH 040R-11-4-4T-M 4 4 16 40 16 15 9 50 19 5.6 8.4 37 Fig.1 SB-2555TRG DTM-8 MP-1 HH8X25 BDMT11T308ER-N2 BDMT11T308ER-N3 050R-11-5-6T-M 6 5 30 50 22 18 11 63 21 6.3 10.4 46 HH10X30 MECH 050R-17-2-4T-M 4 2 8 50 22 18 11 52 21 6.3 10.4 30 SB-4070TRN DTM-15 MP-1 HH10X30 BDMT170408ER-N3 BDMT170408ER-N4 050R-17-4-4T-M 4 16 78 59 HH10X40 063R-17-3-4T-M 4 3 12 63 27 20 14 70 24 7 12.4 45 HH12X35 080R-17-4-6T-M 6 4 24 80 32 26 18 85 28 8 14.4 59 HH16X45 100R-17-4-6T-M 6 4 24 100 40 56 - 85 30 9 16.4 59 Fig.2 - MECH 063R-17-3-4T 4 3 12 63 25.4 20 14 70 26 6 9.5 45 Fig.1 SB-4070TRN DTM-15 MP-1 HH12X35 080R-17-4-6T 6 4 24 80 31.75 26 18 85 32 8 12.7 59 HH16X45 100R-17-4-6T 6 4 24 100 38.1 56 - 85 38 10 15.9 59 Fig.2 - Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. MECH-BT50 (Integral Arbor type, without coolant hole) Rake Angle Description A.R. (Max.) R.R. MECH 11- +23° -7° MECH 17- +19° -7° Dimensions Description -6 St No. of Flutes No. of Stages No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Drawing Weight (kg) Spare Parts Applicable Inserts OM19 Clamp Screw Wrench Anti-seize Compound D L S f MECH 050R11-8-4T-BT50 4 8 32 50 143 73 Fig.1 4.8 SB- 2555TRG DTM-8 MP-1 BDMT11T308ER-N2 BDMT11T308ER-N3 MECH 050R17-7-4T-BT50 4 7 28 50 173 104 4.9 SB- 4070TRN DTM-15 MP-1 BDMT170408ER-N3 BDMT170408ER-N4 063R17-7-4T-BT50 63 5.9 080R17-7-4T-BT50 80 7.8 100R17-7-6T-BT50 6 42 100 10.2 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Applicable Inserts Applicable Inserts O M19 Description 0 a 1 1 LJI M 2-Notched 3-Notched 3-Notched 4-Notched MECH 11- BDMT 11T308ER-N2 BDMT 11T308ER-N3 MECH 17- BDMT 170408ER-N3 BDMT 170408ER-N4 SM. item Recommended Cutting ConditionsO M85 M81
