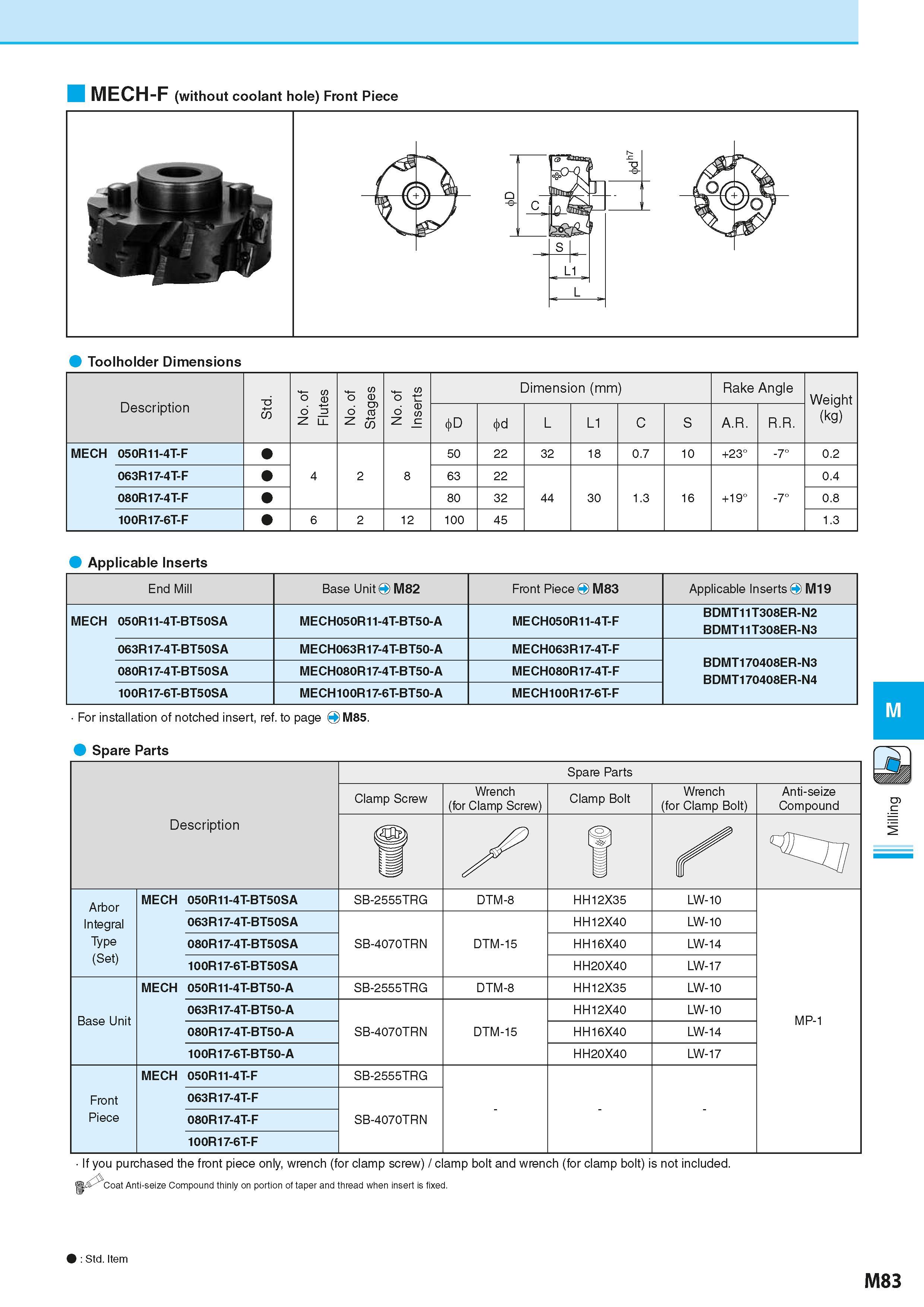

MECH-F (without coolant hole) Front Piece Toolholder Dimensions Description -6 55 No. of Flutes tn of e ro o z 55 No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Weight (kg) D d L L1 C S A.R. R.R. MECH 050R11-4T-F 4 2 8 50 22 32 18 0.7 10 +23° -7° 0.2 063R17-4T-F 63 22 44 30 1.3 16 +19° -7° 0.4 080R17-4T-F 80 32 0.8 100R17-6T-F 6 2 12 100 45 1.3 Applicable Inserts End Mill Base UnitO M82 Front Piece O M83 Applicable Inserts 4 M19 MECH 050R11-4T-BT50SA MECH050R11-4T-BT50-A MECH050R11-4T-F BDMT11T308ER-N2 BDMT11T308ER-N3 063R17-4T-BT50SA MECH063R17-4T-BT50-A MECH063R17-4T-F BDMT170408ER-N3 BDMT170408ER-N4 080R17-4T-BT50SA MECH080R17-4T-BT50-A MECH080R17-4T-F 100R17-6T-BT50SA MECH100R17-6T-BT50-A MECH100R17-6T-F For installation of notched insert, ref. to page O M85. Spare Parts If you purchased the front piece only, wrench (for clamp screw) / clamp bolt and wrench (for clamp bolt) is not included. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. M Std. Item M83
