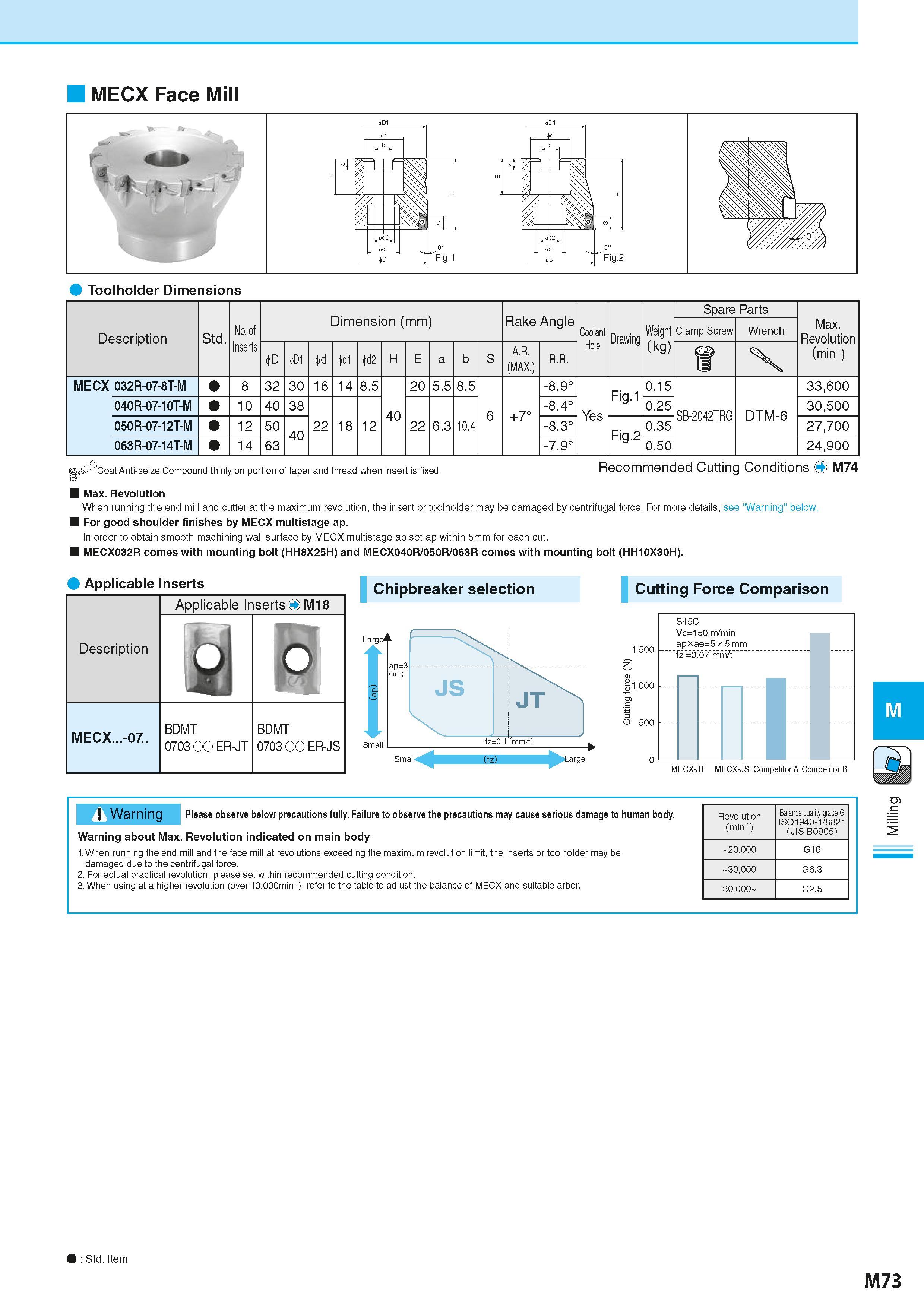

MECX Face Mill Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Coolant Hole Drawing Weight (kg) Spare Parts Max. Revolution (min-1) Clamp Screw Wrench < D 4iD1 < d 4>d1 4id2 H E a b S A.R. (MAX.) R.R. f X MECX 032R-07-8T-M 8 32 30 16 14 8.5 40 20 5.5 8.5 6 +7° -8.9° Yes Fig.1 0.15 SB-2042TRG DTM-6 33,600 040R-07-10T-M 10 40 38 22 18 12 22 6.3 10.4 -8.4° 0.25 30,500 050R-07-12T-M 12 50 40 -8.3° Fig.2 0.35 27,700 063R-07-14T-M 14 63 -7.9° 0.50 24,900 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions O M74 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. For more details, see "Warning" below. For good shoulder finishes by MECX multistage ap. In order to obtain smooth machining wall surface by MECX multistage ap set ap within 5mm for each cut. MECX032R comes with mounting bolt (HH8X25H) and MECX040R/050R/063R comes with mounting bolt (HH10X30H). Applicable Inserts Description MECX...-07. Applicable Inserts O M18 BDMT 0703 OO ER-JT BDMT 0703 OO ER-JS Chipbreaker selection Cutting Force Comparison S45C Vc=150 m/min apxae=5 x 5 mm fz =0.07 mm/t ii MECX-JT MECX-JS Competitor A Competitor B C 500 0 Warning Please observe below precautions fully. Failure to observe the precautions may cause serious damage to human body. Warning about Max. Revolution indicated on main body 1. When running the end mill and the face mill at revolutions exceeding the maximum revolution limit, the inserts or toolholder may be damaged due to the centrifugal force. 2. For actual practical revolution, please set within recommended cutting condition. 3. When using at a higher revolution (over 10,000min-1), refer to the table to adjust the balance of MECX and suitable arbor. Revolution (min'1) Balance quality grade G IS01940-1/8821 (JIS B0905) -20,000 G16 -30,000 G6.3 30,000- G2.5 M Std. Item M73
