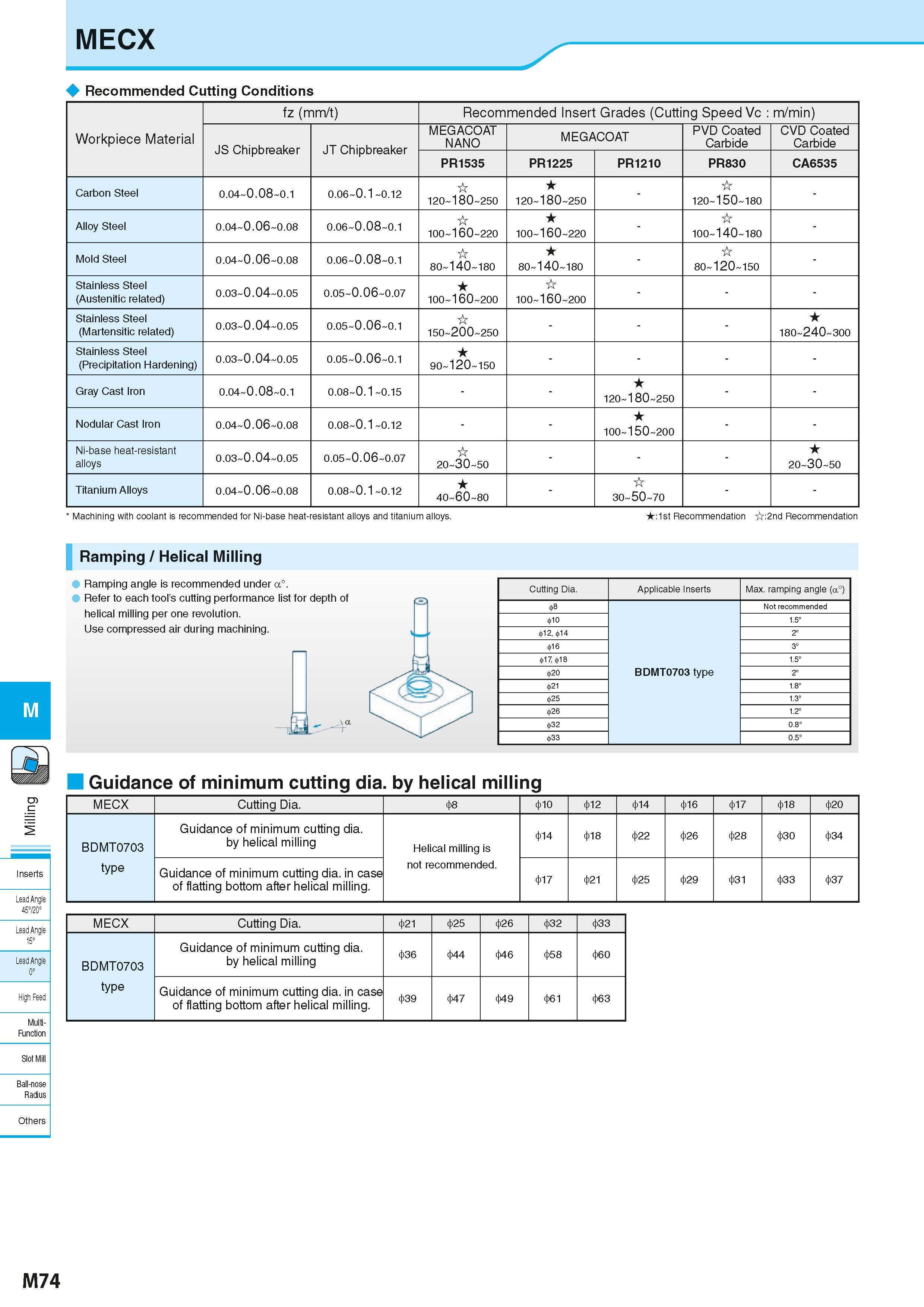

MECX Recommended Cutting Conditions Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc m/min) JS Chipbreaker JT Chipbreaker MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.04-0.08-0.1 0.06-0.1-0.12 120-180-250 120-180-250 - 120-150-180 - Alloy Steel 0.04-0.06-0.08 0.06-0.08-0.1 100-160-220 100-160-220 - 100-140-180 - Mold Steel 0.04-0.06-0.08 0.06-0.08-0.1 80-140-180 80-140-180 - 80-120-150 - Stainless Steel (Austenitic related) 0.03-0.04-0.05 0.05-0.06-0.07 100-160-200 100-160-200 - Stainless Steel (Martensitic related) 0.03-0.04-0.05 0.05-0.06-0.1 150-200-250 - 180-240-300 Stainless Steel (Precipitation Hardening) 0.03-0.04-0.05 0.05-0.06-0.1 90-120-150 Gray Cast Iron 0.04-0.08-0.1 0.08-0.1-0.15 120-180-250 Nodular Cast Iron 0.04-0.06-0.08 0.08-0.1-0.12 100-150-200 Ni-base heat-resistant alloys 0.03-0.04-0.05 0.05-0.06-0.07 20-30-50 - 20-30-50 Titanium Alloys 0.04-0.06-0.08 0.08-0.1-0.12 40-60-80 - 30-50-70 Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. :1st Recommendation :2nd Recommendation Ramping / Helical Milling Ramping angle is recommended under a°. Refer to each tool’s cutting performance list for depth of helical milling per one revolution. Use compressed air during machining. Cutting Dia. Applicable Inserts Max. ramping angle (a°) 8 Not recommended 10 1.5° 12, 14 2° 16 3° 17 18 1.5° 20 BDMT0703 type 2° 21 1.8° 25 1.3° 26 1.2° 32 0.8° 33 0.5° Guidance of minimum cutting dia. by helical milling MECX Cutting Dia. 8 10 12 14 16 17 18 20 BDMT0703 Guidance of minimum cutting dia. by helical milling Helical milling is 14 18 22 26 28 30 34 type Guidance of minimum cutting dia. in case of flatting bottom after helical milling. not recommended. 17 21 25 29 31 33 37 Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function MECX Cutting Dia. 21 25 26 32 33 BDMT0703 type Guidance of minimum cutting dia. by helical milling 36 44 46 58 60 Guidance of minimum cutting dia. in case of flatting bottom after helical milling. 39 47 49 61 63 X Slot Ml Ball-nose Radius Others M74
