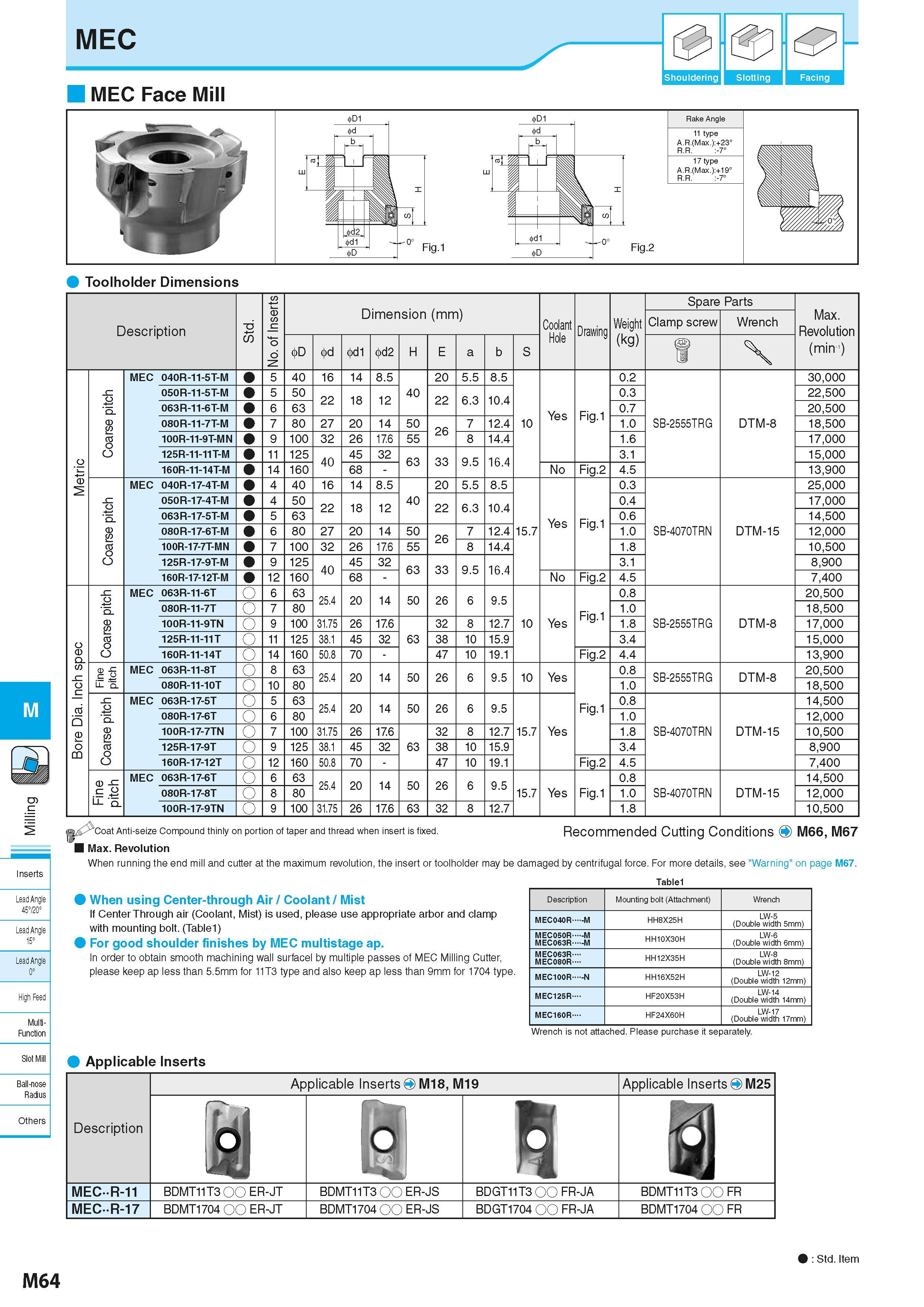

MEC MEC Face Mill 0 & Shouldering Slotting Facing Toolholder Dimensions M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius Others Description -6 w No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Coolant Hole Drawing Weight (kg) Spare Parts Max. Revolution (min-1) Clamp screw Wrench 4>D d1 4>d2 H E a b S f Metric Coarse pitch MEC 040R-11-5T-M 5 40 16 14 8.5 40 20 5.5 8.5 10 Yes Fig.1 0.2 SB-2555TRG DTM-8 30,000 050R-11-5T-M 5 50 22 18 12 22 6.3 10.4 0.3 22,500 063R-11-6T-M 6 63 0.7 20,500 080R-11-7T-M 7 80 27 20 14 50 26 7 12.4 1.0 18,500 100R-11-9T-MN 9 100 32 26 17.6 55 8 14.4 1.6 17,000 125R-11-11T-M 11 125 40 45 32 63 33 9.5 16.4 3.1 15,000 160R-11-14T-M 14 160 68 - No Fig.2 4.5 13,900 Coarse pitch MEC 040R-17-4T-M 4 40 16 14 8.5 40 20 5.5 8.5 15.7 Yes Fig.1 0.3 SB-4070TRN DTM-15 25,000 050R-17-4T-M 4 50 22 18 12 22 6.3 10.4 0.4 17,000 063R-17-5T-M 5 63 0.6 14,500 080R-17-6T-M 6 80 27 20 14 50 26 7 12.4 1.0 12,000 100R-17-7T-MN 7 100 32 26 17.6 55 8 14.4 1.8 10,500 125R-17-9T-M 9 125 40 45 32 63 33 9.5 16.4 3.1 8,900 160R-17-12T-M 12 160 68 - No Fig.2 4.5 7,400 Bore Dia. Inch spec Coarse pitch MEC 063R-11-6T O 6 63 25.4 20 14 50 26 6 9.5 10 Yes Fig.1 0.8 SB-2555TRG DTM-8 20,500 080R-11-7T O 7 80 1.0 18,500 100R-11-9TN O 9 100 31.75 26 17.6 63 32 8 12.7 1.8 17,000 125R-11-11T O 11 125 38.1 45 32 38 10 15.9 3.4 15,000 160R-11-14T O 14 160 50.8 70 - 47 10 19.1 Fig.2 4.4 13,900 Fine pitch MEC 063R-11-8T O 8 63 25.4 20 14 50 26 6 9.5 10 Yes Fig.1 0.8 SB-2555TRG DTM-8 20,500 080R-11-10T O 10 80 1.0 18,500 Coarse pitch MEC 063R-17-5T O 5 63 25.4 20 14 50 26 6 9.5 15.7 Yes 0.8 SB-4070TRN DTM-15 14,500 080R-17-6T O 6 80 1.0 12,000 100R-17-7TN O 7 100 31.75 26 17.6 63 32 8 12.7 1.8 10,500 125R-17-9T O 9 125 38.1 45 32 38 10 15.9 3.4 8,900 160R-17-12T O 12 160 50.8 70 - 47 10 19.1 Fig.2 4.5 7,400 Fine pitch MEC 063R-17-6T O 6 63 25.4 20 14 50 26 6 9.5 15.7 Yes Fig.1 0.8 SB-4070TRN DTM-15 14,500 080R-17-8T O 8 80 1.0 12,000 100R-17-9TN O 9 100 31.75 26 17.6 63 32 8 12.7 1.8 10,500 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions O M66, M67 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. For more details, see "Warning" on page M67. When using Center-through Air / Coolant / Mist If Center Through air (Coolant, Mist) is used, please use appropriate arbor and clamp with mounting bolt. (Tablel) For good shoulder finishes by MEC multistage ap. In order to obtain smooth machining wall surfacel by multiple passes of MEC Milling Cutter, please keep ap less than 5.5mm for 11T3 type and also keep ap less than 9mm for 1704 type. Tablel Description Mounting bolt (Attachment) Wrench MEC040R M HH8X25H LW-5 (Double width 5mm) MEC050R M MEC063R M HH10X30H LW-6 (Double width 6mm) MEC063R MEC080R HH12X35H LW-8 (Double width 8mm) MEC100R N HH16X52H LW-12 (Double width 12mm) MEC125R HF20X53H LW-14 (Double width 14mm) MEC160R HF24X60H LW-17 (Double width 17mm) Wrench is not attached. Please purchase it separately, Applicable Inserts Description Applicable Inserts O M18, M19 Applicable Inserts O M25 I r I MEC-R-11 BDMT11T3 OO ER-JT BDMT11T3 OO ER-JS BDGT11T3 OO FR-JA BDMT11T3 OO FR MEC-R-17 BDMT1704 OO ER-JT BDMT1704 OO ER-JS BDGT1704 OO FR-JA BDMT1704 OO FR Std. Item M64
