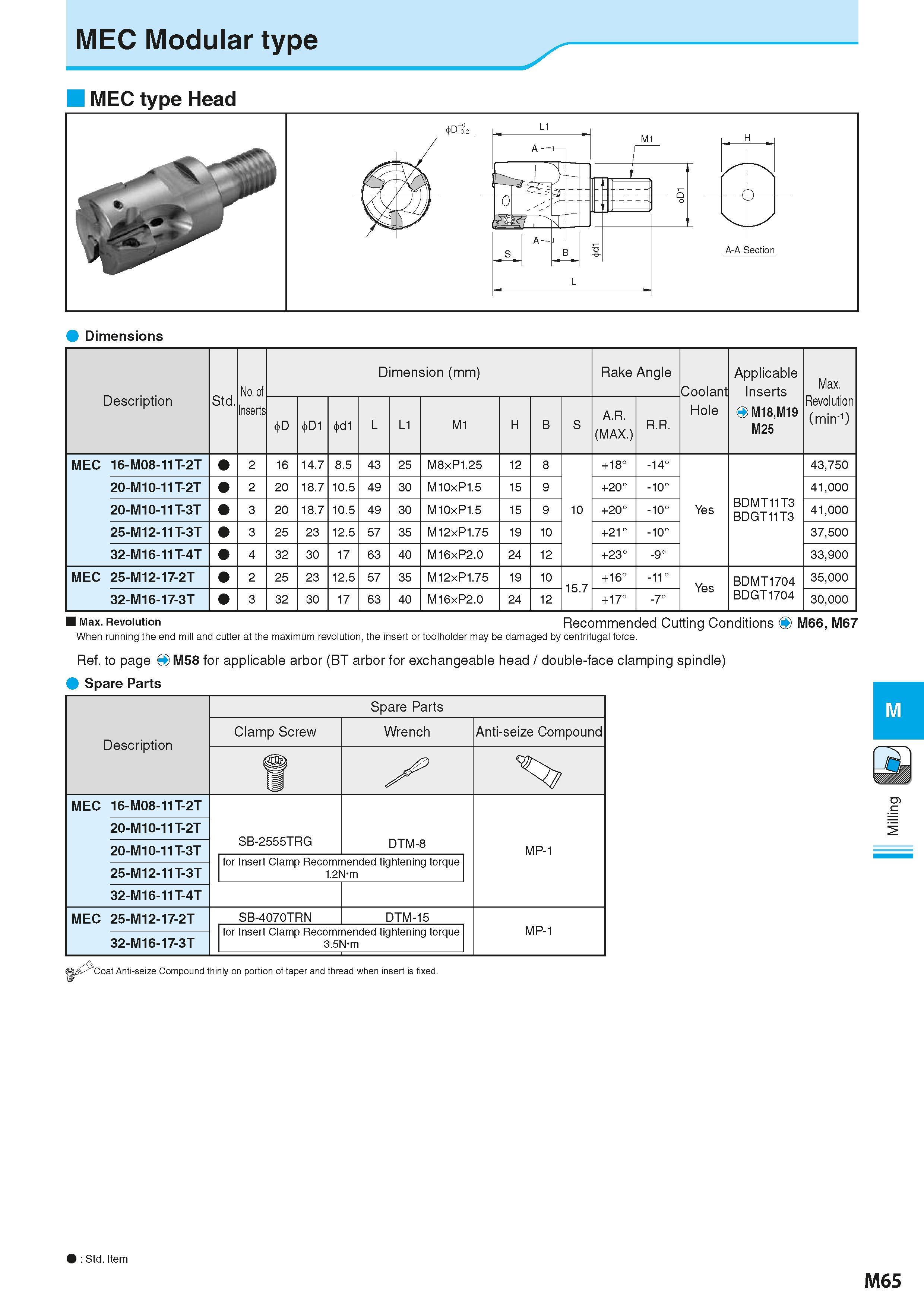

751 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M65

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M65 0751 Lab2u
