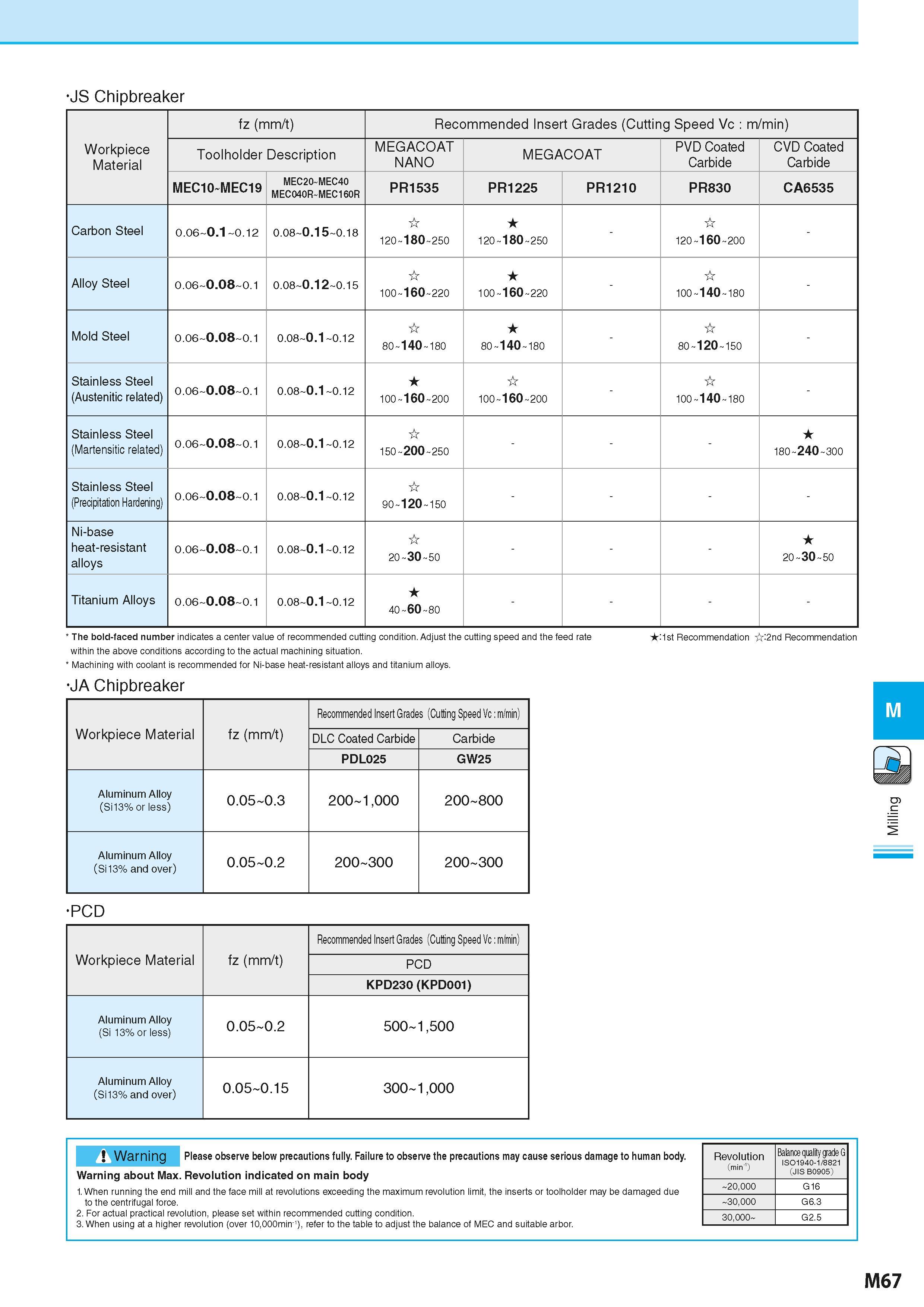

JS Chipbreaker Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc m/min) Toolholder Description MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide MEC10 MEC19 MEC20 MEC40 MEC040R MEC160R PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.06 0.1 0.12 0.08 0.15 0.18 120 180 250 120 180 250 - 120 160 200 - Alloy Steel 0.06 0.08 0.1 0.08 0.12 0.15 100 160 220 100 160 220 - 100 140 180 - Mold Steel 0.06 0.08 0.1 0.08 0.1 0.12 80 140 180 80 140 180 - 80 120 150 - Stainless Steel (Austenitic related) 0.06 0.08 0.1 0.08 0.1 0.12 100 160 200 100 160 200 - 100 140 180 - Stainless Steel (Martensitic related) 0.06 0.08 0.1 0.08 0.1 0.12 150 200 250 - 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.1 0.08 0.1 0.12 90 120 150 Ni-base heat-resistant alloys 0.06 0.08 0.1 0.08 0.1 0.12 20 30 50 - 20 30 50 Titanium Alloys 0.06 0.08 0.1 0.08 0.1 0.12 40 60 80 The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. 1st Recommendation 2nd Recommendation JA Chipbreaker Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc m/min) DLC Coated Carbide Carbide PDL025 GW25 Aluminum Alloy (Si13% or less) 0.05 0.3 200 1,000 200 800 Aluminum Alloy (Si13% and over) 0.05 0.2 200 300 200 300 PCD Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc m/min) PCD KPD230 (KPD001) Aluminum Alloy (Si 13% or less) 0.05 0.2 500 1,500 Aluminum Alloy (Si13% and over) 0.05 0.15 300 1,000 Warning Please observe below precautions fully. Failure to observe the precautions may cause serious damage to human body. Warning about Max. Revolution indicated on main body 1. When running the end mill and the face mill at revolutions exceeding the maximum revolution limit, the inserts or toolholder may be damaged due to the centrifugal force. 2. For actual practical revolution, please set within recommended cutting condition. 3. When using at a higher revolution (over 10,000min'1), refer to the table to adjust the balance of MEC and suitable arbor. Revolution (min-1) Balance quality grade G ISO1940-1/8821 (JIS B0905) 20,000 G16 30,000 G6.3 30,000 G2.5 M67
