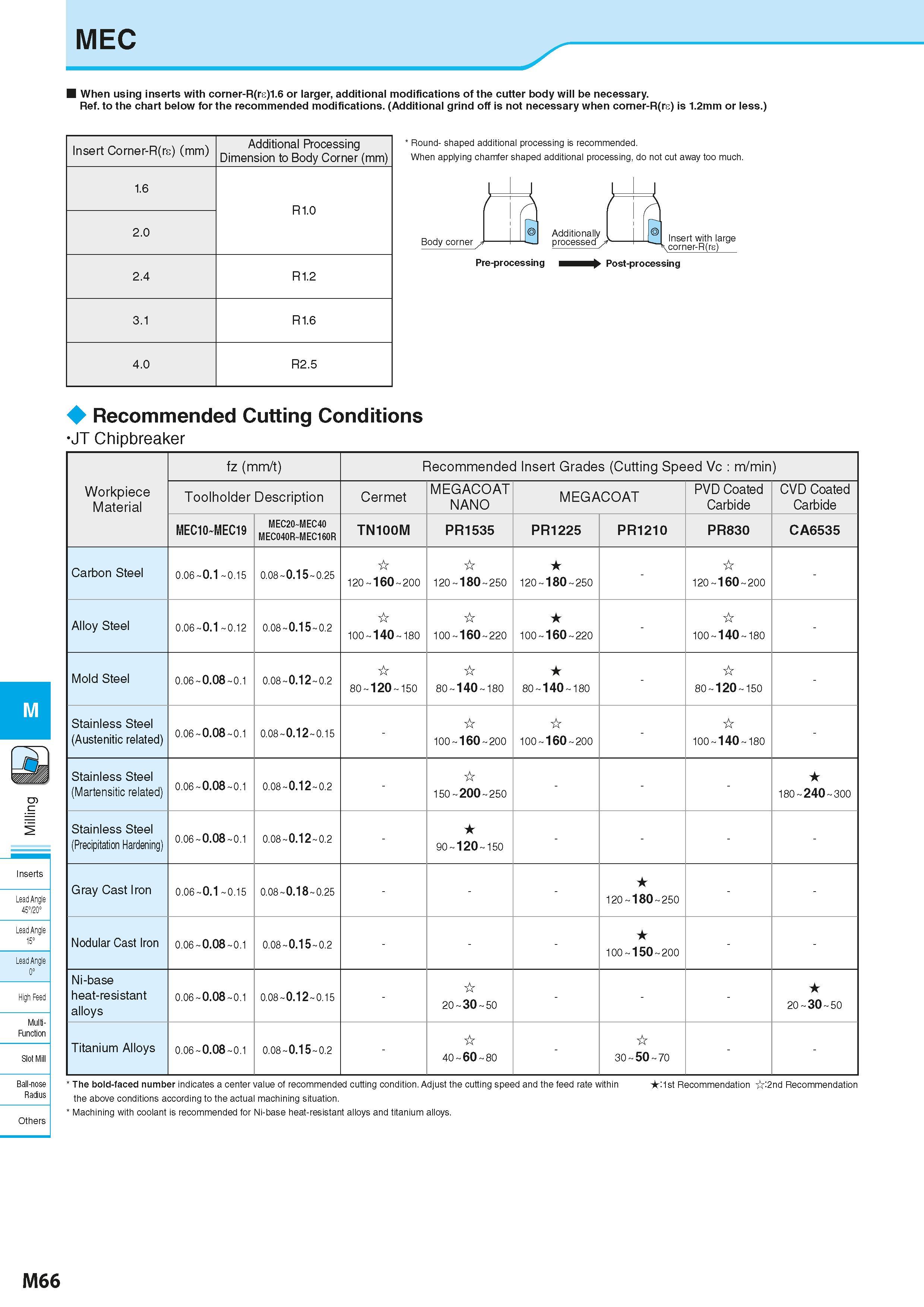

MEC M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius When using inserts with corner-R(re)1.6 or larger, additional modifications of the cutter body will be necessary. Ref. to the chart below for the recommended modifications. (Additional grind off is not necessary when corner-R(re) is 1.2mm or less.) Insert Corner-R(rs) (mm) Additional Processing Dimension to Body Corner (mm) 1.6 R1.0 2.0 2.4 R1.2 3.1 R1.6 4.0 R2.5 Round- shaped additional processing is recommended. When applying chamfer shaped additional processing, do not cut away too much. Body corner Additionally processed Insert with large \corner-R(rs) Pre-processing Post-processing Recommended Cutting Conditions JT Chipbreaker Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc m/min) Toolholder Description Cermet MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide MEC10 MEC19 MEC20 MEC40 MEC040R MEC160R TN100M PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.06 0.1 0.15 0.08 0.15 0.25 120 160 200 120 180 250 120 180 250 - 120 160 200 - Alloy Steel 0.06 0.1 0.12 0.08 0.15 0.2 100 140 180 100 160 220 100 160 220 - 100 140 180 - Mold Steel 0.06 0.08 0.1 0.08 0.12 0.2 80 120 150 80 140 180 80 140 180 - 80 120 150 - Stainless Steel (Austenitic related) 0.06 0.08 0.1 0.08 0.12 0.15 - 100 160 200 100 160 200 - 100 140 180 - Stainless Steel (Martensitic related) 0.06 0.08 0.1 0.08 0.12 0.2 - 150 200 250 - 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.1 0.08 0.12 0.2 - 90 120 150 Gray Cast Iron 0.06 0.1 0.15 0.08 0.18 0.25 - 120 180 250 Nodular Cast Iron 0.06 0.08 0.1 0.08 0.15 0.2 - 100 150 200 Ni-base heat-resistant alloys 0.06 0.08 0.1 0.08 0.12 0.15 - 20 30 50 - 20 30 50 Titanium Alloys 0.06 0.08 0.1 0.08 0.15 0.2 - 40 60 80 - 30 50 70 The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within : 1st Recommendation 2nd Recommendation the above conditions according to the actual machining situation. Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. M66
