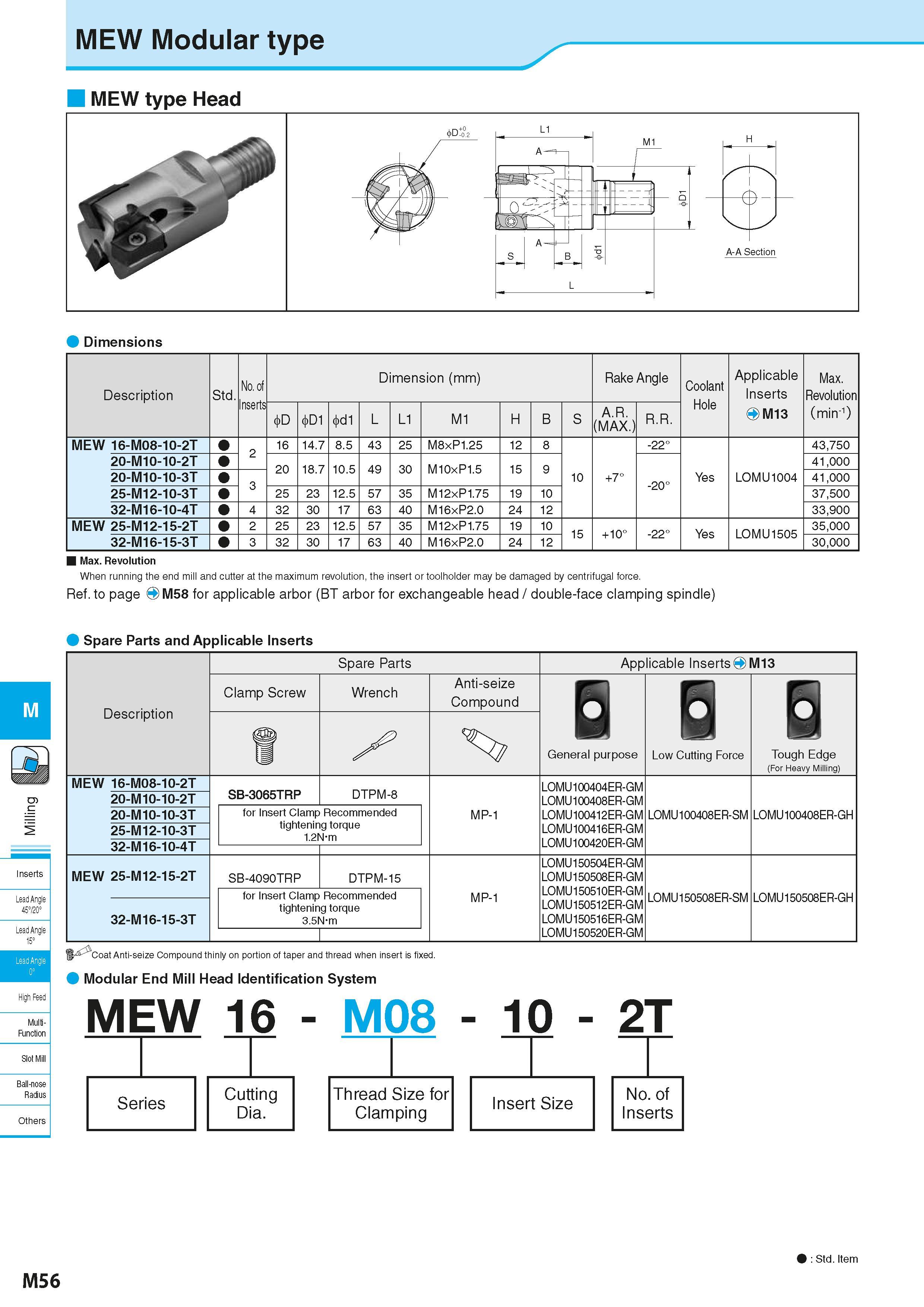

742 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M56

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M56 0742 Lab2u
