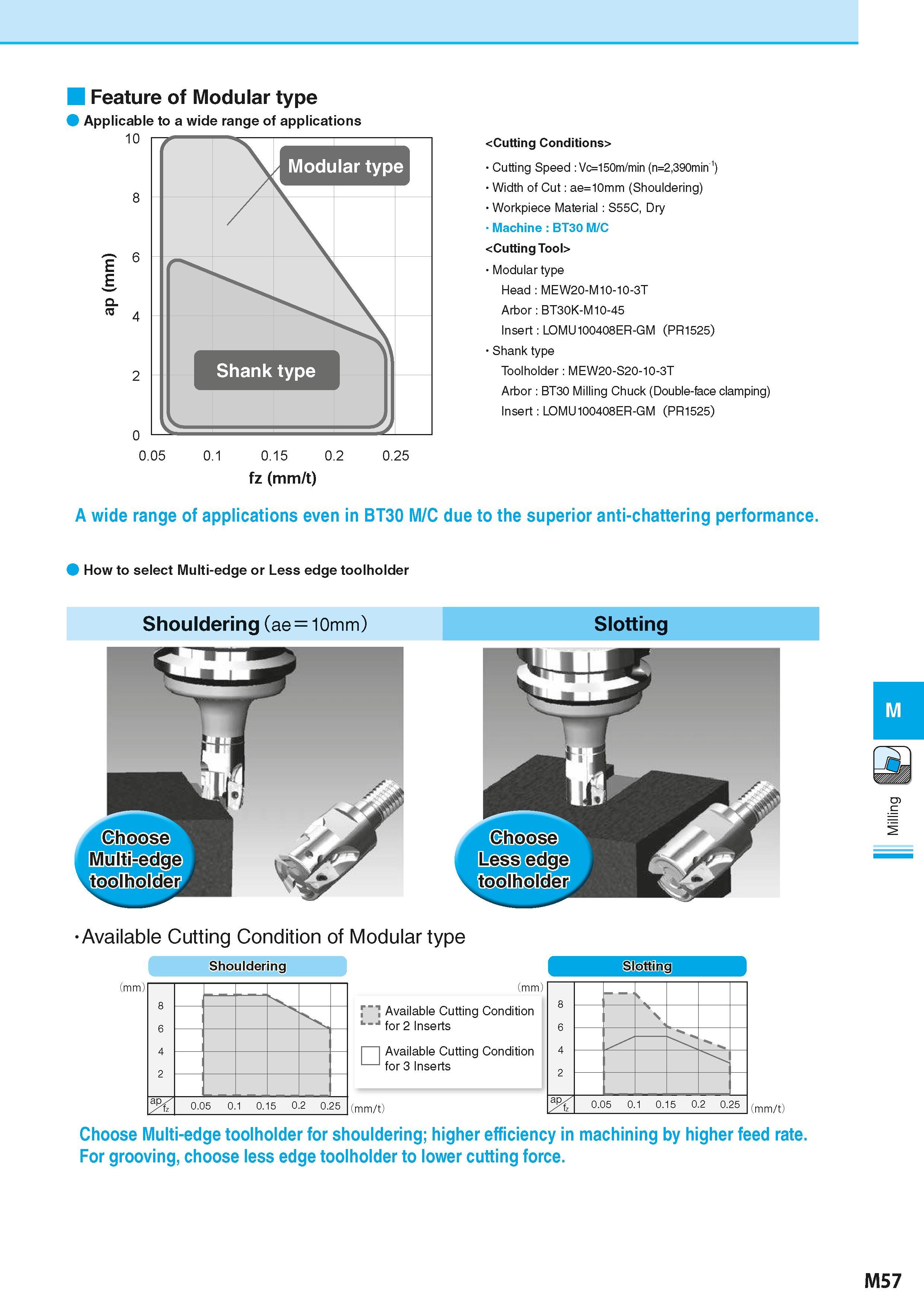

Feature of Modular type Applicable to a wide range of applications 0.05 0.1 0.15 0.2 0.25 fz (mm/t) A wide range of applications even in BT30 Cutting Speed Vc=150m/min (n=2,390min-1) Width of Cut ae=10mm (Shouldering) Workpiece Material S55C, Dry Machine BT30 M/C Modular type Head MEW20-M10-10-3T Arbor BT30K-M10-45 Insert L0MU100408ER-GM (PR1525) Shank type Toolholder MEW20-S20-10-3T Arbor BT30 Milling Chuck (Double-face clamping) Insert L0MU100408ER-GM (PR1525) due to the superior anti-chattering performance. How to select Multi-edge or Less edge toolholder Available Cutting Condition of Modular type I Shouldering I (mm 8 6 4 2 % 0.05 0.1 0.15 0.2 0.25 (mm) r 1 Available Cutting Condition for 2 Inserts Available Cutting Condition for 3 Inserts (mm/t) 8 6 4 2 N X 0.05 0.1 0.15 0.2 0.25 (mm/t) Choose Multi-edge toolholder for shouldering; higher efficiency in machining by higher feed rate. For grooving, choose less edge toolholder to lower cutting force. M57
