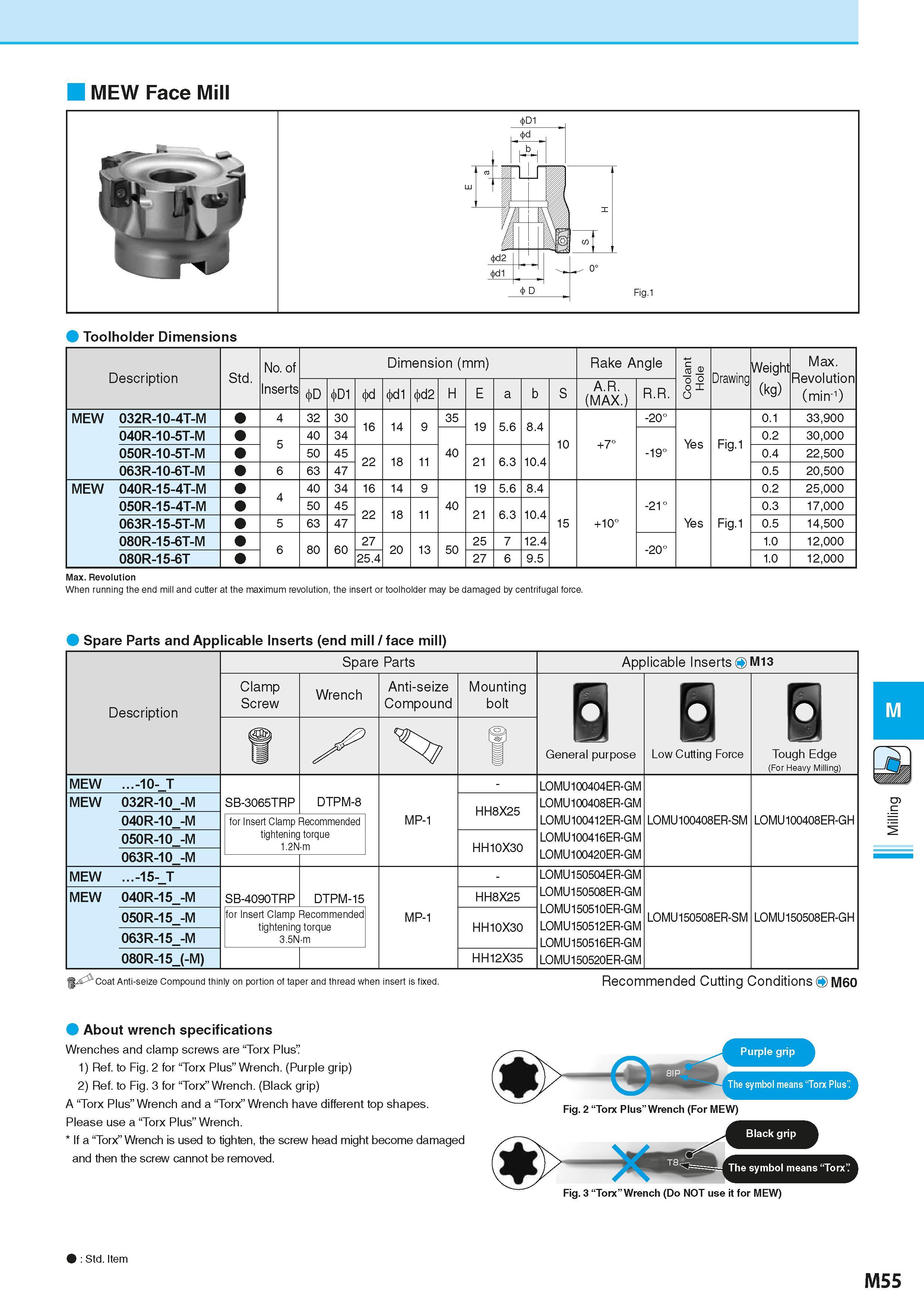

MEW Face Mill Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Coolant Hole Drawing Weight (kg) Max. Revolution (min-1) < D < D1 < d1 < d2 H E a b S A.R. (MAX.) R.R. MEW 032R-10-4T-M 4 32 30 16 14 9 35 19 5.6 8.4 10 +7° -20° Yes Fig.1 0.1 33,900 040R-10-5T-M 5 40 34 40 -19° 0.2 30,000 050R-10-5T-M 50 45 22 18 11 21 6.3 10.4 0.4 22,500 063R-10-6T-M 6 63 47 0.5 20,500 MEW 040R-15-4T-M 4 40 34 16 14 9 40 19 5.6 8.4 15 +10° -21° Yes Fig.1 0.2 25,000 050R-15-4T-M 50 45 22 18 11 21 6.3 10.4 0.3 17,000 063R-15-5T-M 5 63 47 0.5 14,500 080R-15-6T-M 6 80 60 27 20 13 50 25 7 12.4 -20° 1.0 12,000 080R-15-6T 25.4 27 6 9.5 1.0 12,000 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts and Applicable Inserts (end mill / face mill) Description Spare Parts Clamp Screw Wrench Anti-seize Compound Mounting bolt Applicable Inserts 4 M13 General purpose 0 Low Cutting Force Tough Edge (For Heavy Milling) MEW ...-10- T MEW 032R-10 -M SB-3065TRP DTPM-8 040R-10 -M 050R-10 -M 063R-10 -M for Insert Clamp Recommended tightening torque 1.2N-m MP-1 HH8X25 HH10X30 LOMU100404ER-GM L0MU100408ER-GM L0MU100412ER-GM L0MU100416ER-GM L0MU100420ER-GM L0MU100408ER-SM L0MU100408ER-GH MEW .-15- T MEW 040R-15 -M SB-4090TRP DTPM-15 HH8X25 050R-15 -M 063R-15 -M for Insert Clamp Recommended tightening torque 3.5N-m 080R-15 (-M) MP-1 HH10X30 HH12X35 L0MU150504ER-GM L0MU150508ER-GM L0MU150510ER-GM L0MU150512ER-GM L0MU150516ER-GM L0MU150520ER-GM L0MU150508ER-SM L0MU150508ER-GH Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting ConditionsO M60 About wrench specifications Wrenches and clamp screws are “Torx Plus" 1) Ref. to Fig. 2 for “Torx Plus" Wrench. (Purple grip) 2) Ref. to Fig. 3 for “Torx" Wrench. (Black grip) A “Torx Plus" Wrench and a “Torx’ Wrench have different top shapes. Please use a “Torx Plus" Wrench. If a “Torx” Wrench is used to tighten, the screw head might become damaged and then the screw cannot be removed. Fig. 3 “Torx” Wrench (Do NOT use it for MEW) M Std. Item M55
