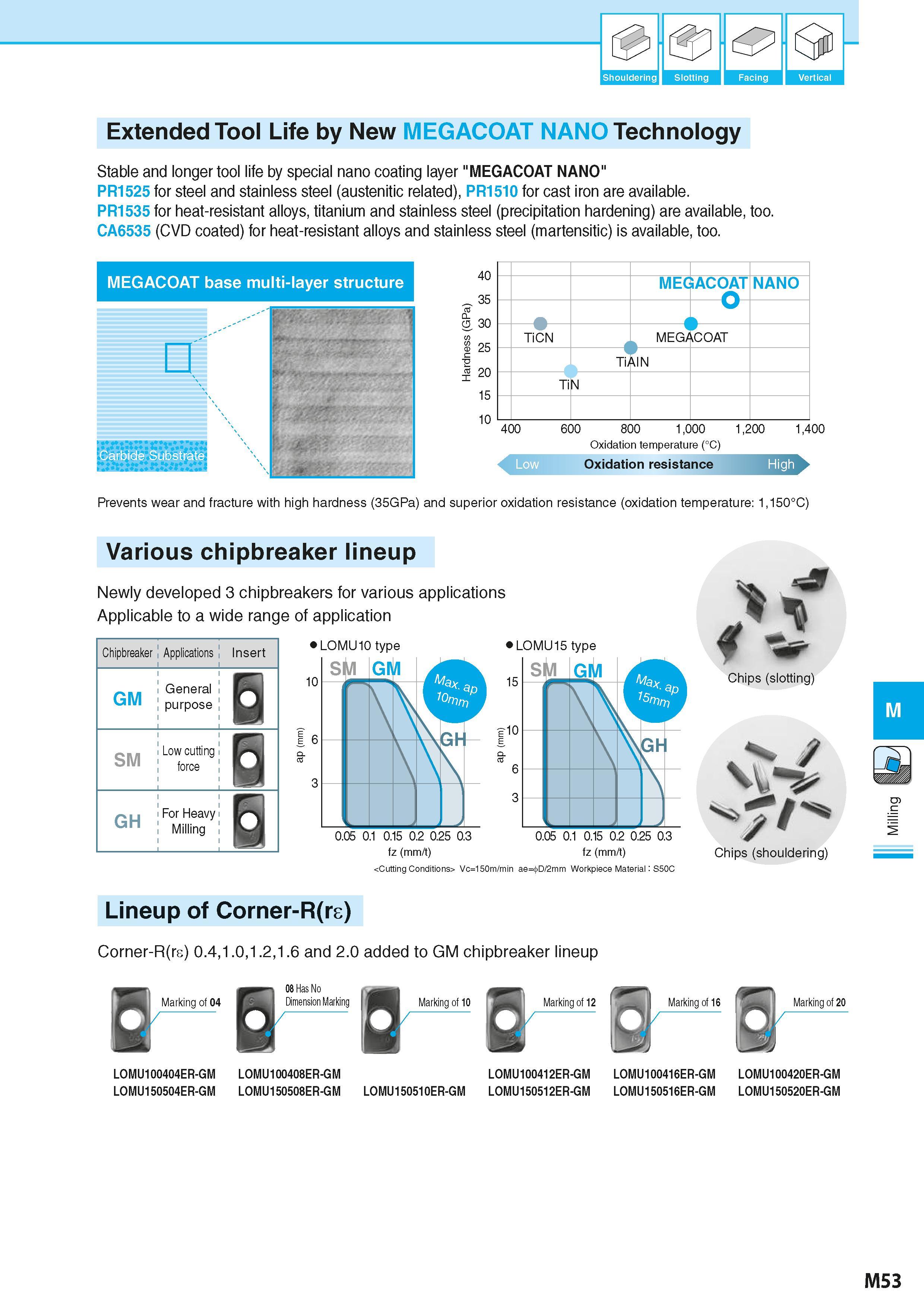

5 S1 Shouldering Slotting Facing Vertical Extended Tool Life by New MEGACGAT NANG Technology Stable and longer tool life by special nano coating layer "MEGACGAT NANG" PR1525 for steel and stainless steel (austenitic related), PR1510 for cast iron are available. PR1535 for heat-resistant alloys, titanium and stainless steel (precipitation hardening) are available, too. CA6535 (CVD coated) for heat-resistant alloys and stainless steel (martensitic) is available, too. MEGACGAT base multi-layer structure 40 - 35 CC 0 30 (A 25 20 15 10 400 MEC 5ACGAT A NANG U 0 TiCN 4 1 MEGA VCOAT Ti/ MN Ti N 600 800 1,000 Oxidation temperature (°C) Gxidation resistance 1,200 1,400 Prevents wear and fracture with high hardness (35GPa) and superior oxidation resistance (oxidation temperature: 1,150°C) Various chipbreaker lineup Newly developed 3 chipbreakers for various applications Applicable to a wide range of application LOMU10 type LOMU15 type SM GM Chipbreaker Applications Insert GM General purpose D SM Low cutting force S GH For Heavy Milling 10 E 6 0.05 0.1 0.15 0.2 0.25 0.3 0.05 0.1 0.15 0.2 0.25 0.3 fz (mm/t) fz (mm/t) Vc=150m/min ae= D/2mm Workpiece Material: S50C Chips (slotting) Vv> Chips (shouldering) 3 Lineup of Corner-R(rs) Corner-R(rs) 0.4,1.0,1.2,1.6 and 2.0 added to GM chipbreaker lineup 08 Has No Marking of 04 Dimension Marking HI Marking of 10 fl 0 Q Marking of 12 8 Marking of 16 Marking of 20 LOMU100404ER-GM LOMU100408ER-GM LOMU100412ER-GM LOMU100416ER-GM LOMU100420ER-GM LOMU150504ER-GM LOMU150508ER-GM LOMU150510ER-GM LOMU150512ER-GM LOMU150516ER-GM LOMU150520ER-GM M53
