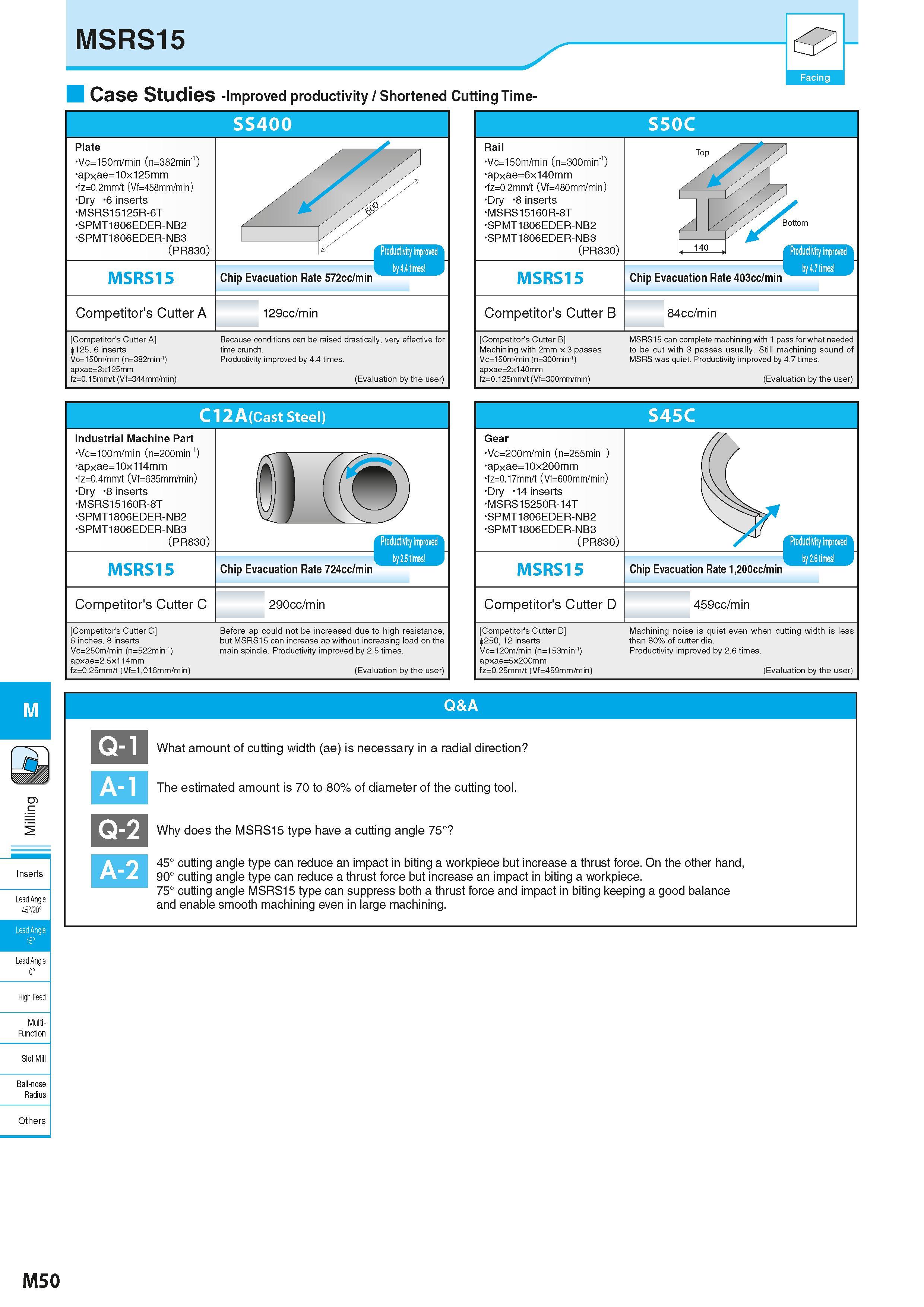

M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius Others MSRS15 Case Studies -Improved productivity / Shortened Cutting Time- SS400 Plate Vc=150m/min (n=382min-1) apxae=10x125mm fz=0.2mm/t (Vf=458mm/min) Dry -6 inserts MSRS15125R-6T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) MSRS15 Chip Evacuation Rate 572cc/min Competitor's Cutter A 129cc/min Competitor's Cutter A Because conditions can be raised drastically, very effective for 125, 6 inserts time crunch. Vc=150m/min (n=382min-1) Productivity improved by 4.4 times. apxae=3x125mm fz=0.15mm/t (Vf=344mm/min) (Evaluation by the user) S50C Rail Vc=150m/min (n=300min-1) apxae=6x140mm fz=0.2mm/t (Vf=480mm/min) Dry -8 inserts MSRS15160R-8T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) /i Bottom MSRS15 Chip Evacuation Rate 403cc/ in rO 8C i iSiSV Competitor's Cutter B 84cc/min Competitor's Cutter B MSRS15 can complete machining with 1 pass for what needed Machining with 2mm x 3 passes to be cut with 3 passes usually. Still machining sound of Vc=150m/min (n=300min-1) MSRS was quiet. Productivity improved by 4.7 times. apxae=2x140mm fz=0.125mm/t (Vf=300mm/min) (Evaluation by the user) C12A(Cast Steel) Industrial Machine Part Vc=100m/min (n=200min-1) apxae=10x114mm fz=0.4mm/t (Vf=635mm/min) Dry -8 inserts MSRS15160R-8T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) MSRS15 Competitor's Cutter C Chip Evacuation Rate 724cc/min 290cc/min Competitor's Cutter C 6 inches, 8 inserts Vc=250m/min (n=522min-1) apxae=2.5x114mm fz=0.25mm/t (Vf=1,016mm/min) Before ap could not be increased due to high resistance, but MSRS15 can increase ap without increasing load on the main spindle. Productivity improved by 2.5 times. (Evaluation by the user) S45C Gear Vc=200m/min (n=255min-1) apxae=10x200mm fz=0.17mm/t (Vf=600mm/min) Dry -14 inserts MSRS15250R-14T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) L MSRS15 Chip Evacuation Rate 1,200cc/min Competitor's Cutter D 459cc/min Competitor's Cutter D Machining noise is quiet even when cutting width is less 250, 12 inserts than 80% of cutter dia. Vc=120m/min (n=153min-1) Productivity improved by 2.6 times. apxae=5x200mm fz=0.25mm/t (Vf=459mm/min) (Evaluation by the user) Q&A Q-1 Q-2 A-2 What amount of cutting width (ae) is necessary in a radial direction The estimated amount is 70 to 80% of diameter of the cutting tool. Why does the MSRS15 type have a cutting angle 75° 45° cutting angle type can reduce an impact in biting a workpiece but increase a thrust force. On the other hand, 90° cutting angle type can reduce a thrust force but increase an impact in biting a workpiece. 75° cutting angle MSRS15 type can suppress both a thrust force and impact in biting keeping a good balance and enable smooth machining even in large machining. M50
