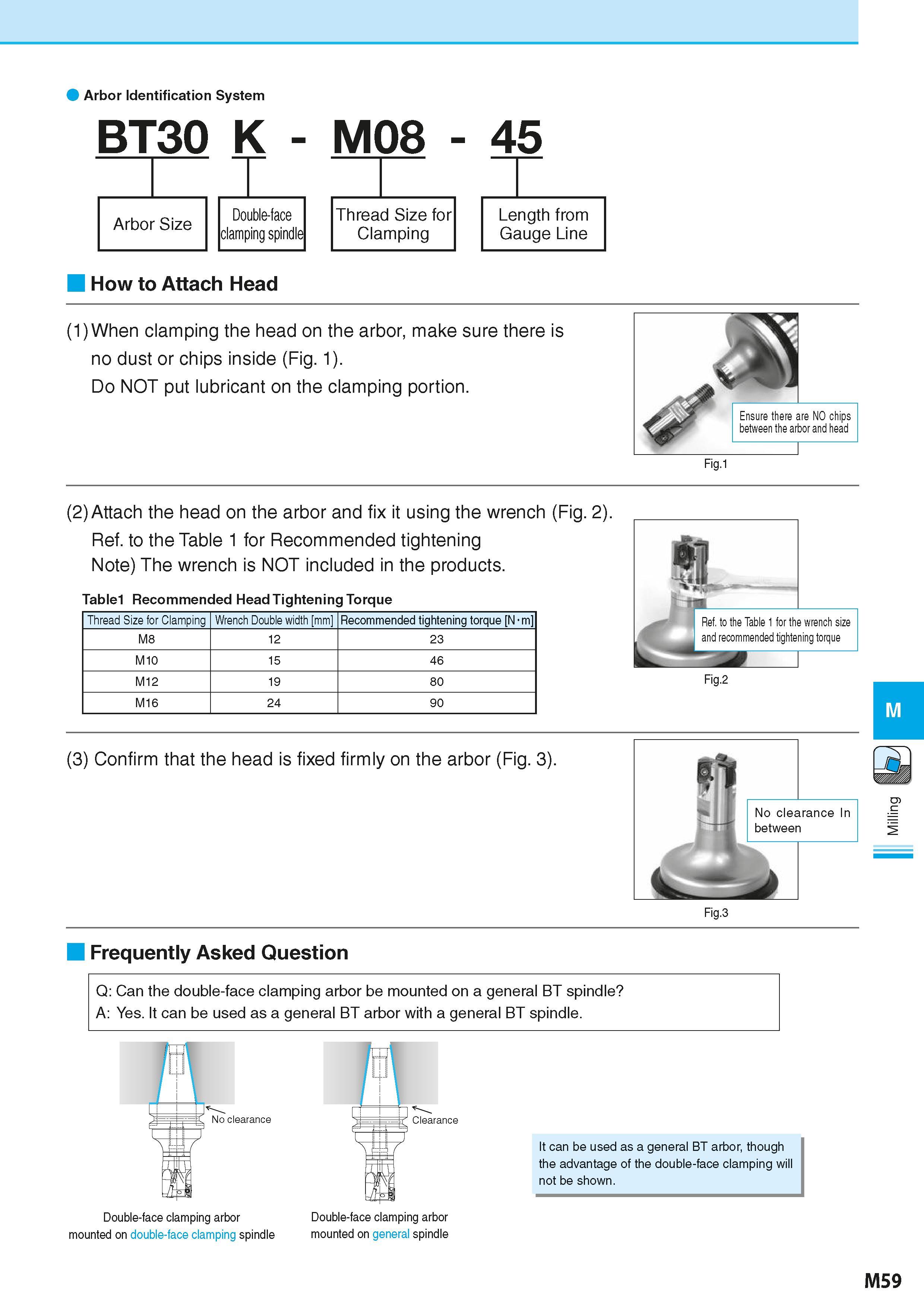

Arbor Identification System BT30 K - M08 - 45 How to Attach Head (1)When clamping the head on the arbor, make sure there is no dust or chips inside (Fig. 1). Do N0T put lubricant on the clamping portion. (2)Attach the head on the arbor and fix it using the wrench (Fig. 2). Ref. to the Table 1 for Recommended tightening Note) The wrench is N0T included in the products. Tablel Recommended Head Tightening Torque Thread Size for Clamping Wrench Double width mm Recommended tightening torque N-m M8 12 23 M10 15 46 M12 19 80 M16 24 90 Ref. to the Table 1 for the wrench size and recommended tightening torque (3) Confirm that the head is fixed firmly on the arbor (Fig. 3). Frequently Asked Question Q: Can the double-face clamping arbor be mounted on a general BT spindle A: Yes. It can be used as a general BT arbor with a general BT spindle. Double-face clamping arbor mounted on double-face clamping spindle It can be used as a general BT arbor, though the advantage of the double-face clamping will not be shown. mounted on general spindle M59
