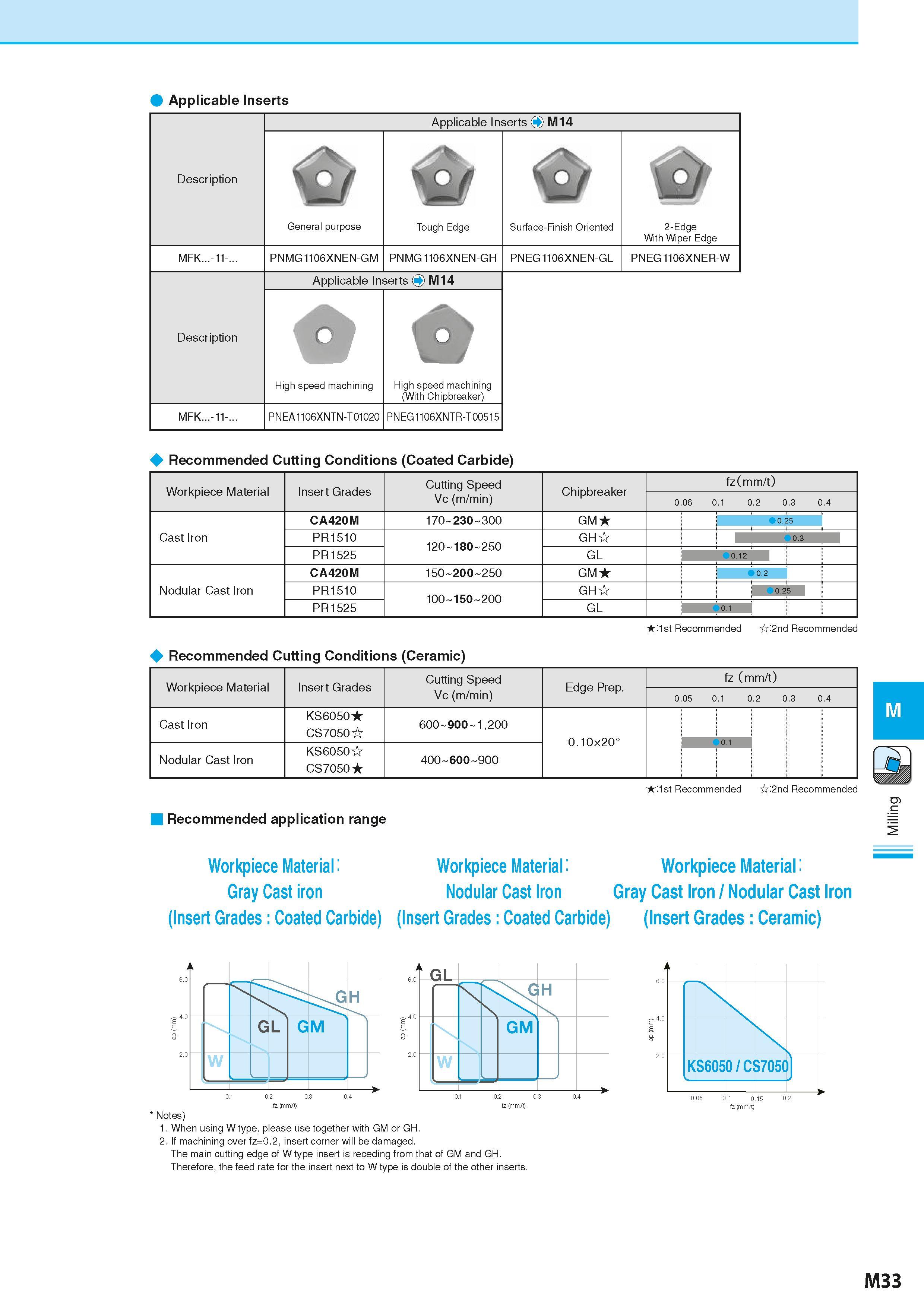

Applicable Inserts Description Applicable Inserts O M14 & General purpose Tough Edge Surface-Finish Oriented 2-Edge With Wiper Edge MFK...-11-... PNMG1106XNEN-GM PNMG1106XNEN-GH PNEG1106XNEN-GL PNEG1106XNER-W Description Applicable Inserts O M14 High speed machining High speed machining (With Chipbreaker) MFK...-11-... PNEA1106XNTN-T 01020 PNEG1106XNTR-T 00515 Recommended Cutting Conditions (Coated Carbide) Workpiece Material Insert Grades Cutting Speed Chipbreaker fz( mm/t) Vc (m/min) 0.06 0.1 0.2 0.3 0.4 CA420M 170 230 300 GM 0.25 Cast Iron PR1510 120 180 250 GH 0.3 PR1525 GL 0.12 CA420M 150 200 250 GM 0.2 Nodular Cast Iron PR1510 100 150 200 GH 0.2 5 1 PR1525 GL 0.1 : 1 st Recommended 2nd Recommended Recommended Cutting Conditions (Ceramic) Workpiece Material Insert Grades Cutting Speed Vc (m/min) Edge Prep. fz (mm/t) 0.05 0.1 0.2 0.3 0.4 Cast Iron KS6050 CS7050 600 900 1,200 0.10x20° Nodular Cast Iron KS6050 CS7050 400 600 900 : 1 st Recommended 2nd Recommended Recommended application range Workpiece Material: Workpiece Material: Workpiece Material: Gray Cast iron Nodular Cast Iron Gray Cast Iron / Nodular Cast Iron (Insert Grades Coated Carbide) (Insert Grades Coated Carbide) (Insert Grades Ceramic) Notes) 1. When using W type, please use together with GM or GH. 2. If machining over fz=0.2, insert corner will be damaged. The main cutting edge of W type insert is receding from that of GM and GH. Therefore, the feed rate for the insert next to W type is double of the other inserts. 0.05 0.1 0.15 0.2 fz (mm/t) fz (mm/t) M33
