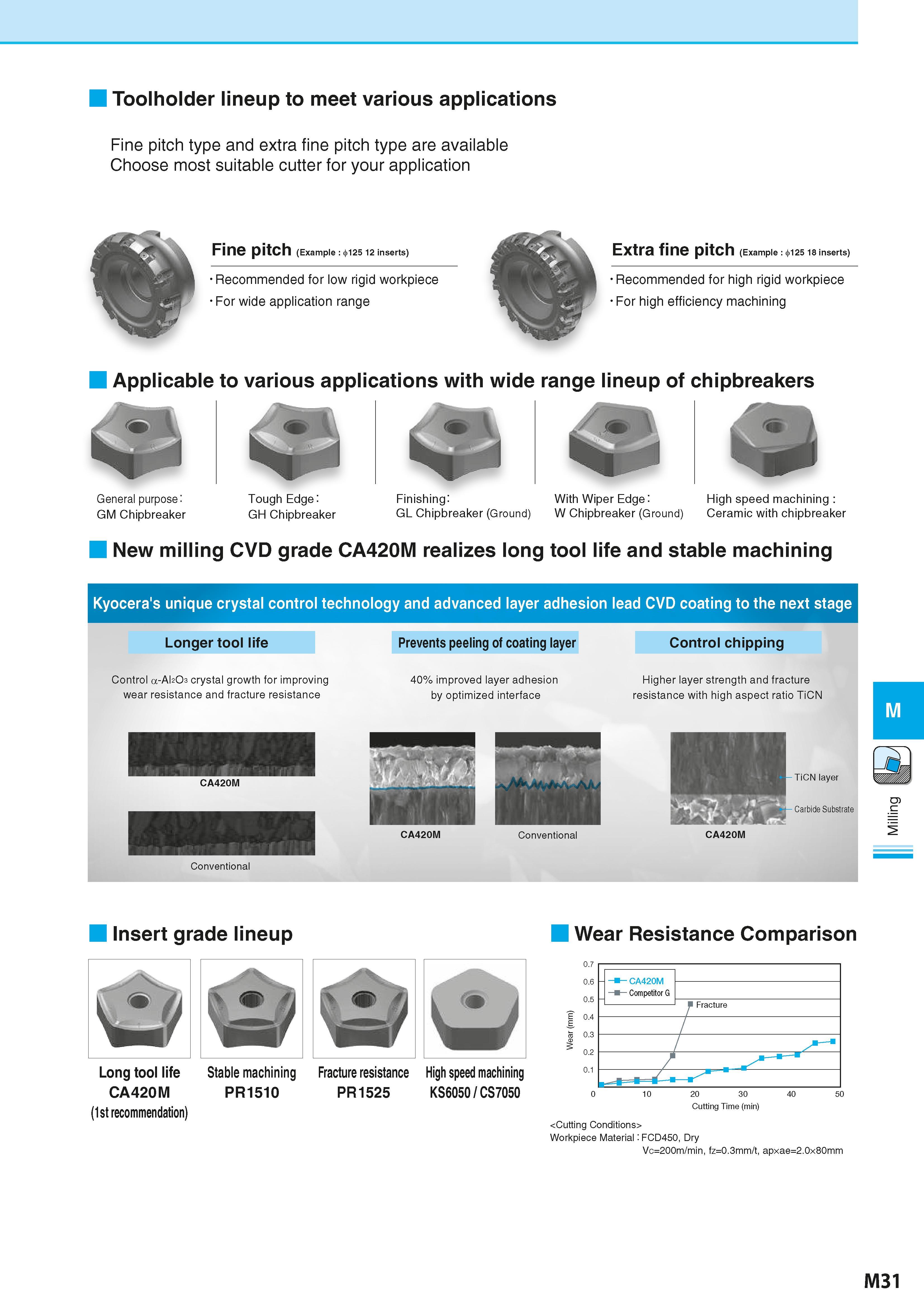

Toolholder lineup to meet various applications Fine pitch type and extra fine pitch type are available Choose most suitable cutter for your application Fine pitch (Example 125 12 inserts) Recommended for low rigid workpiece For wide application range Extra fine pitch (Example 125 18 inserts) Recommended for high rigid workpiece For high efficiency machining Applicable to various applications with wide range lineup of chipbreakers ft General purpose: GM Chipbreaker Tough Edge: GH Chipbreaker Finishing: GL Chipbreaker (Ground) With Wiper Edge: W Chipbreaker (Ground) High speed machining Ceramic with chipbreaker New milling CVD grade CA420M realizes long tool life and stable machining Kyocera's unique crystal control technology and advanced layer adhesion lead CVD coating to the next stage Longer tool life Prevents peeling of coating layer Control chipping Control a-Al2O3 crystal growth for improving 40% improved layer adhesion Higher layer strength and fracture wear resistance and fracture resistance CA420M Conventional by optimized interface CA420M Conventional resistance with high aspect ratio TiCN TiCN layer Carbide Substrate CA420M Insert grade lineup Long tool life Stable machining Fracture resistance High speed machining CA420M PR1510 PR1525 KS6050 / CS7050 (1st recommendation) Wear Resistance Comparison 0 10 20 30 40 50 Cutting Time (min) Workpiece Material: FCD450, Dry VC=200m/min, fz=0.3mm/t, apxae=2.0x80mm M31 Milling
