716 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M30

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M30 0716 Lab2u

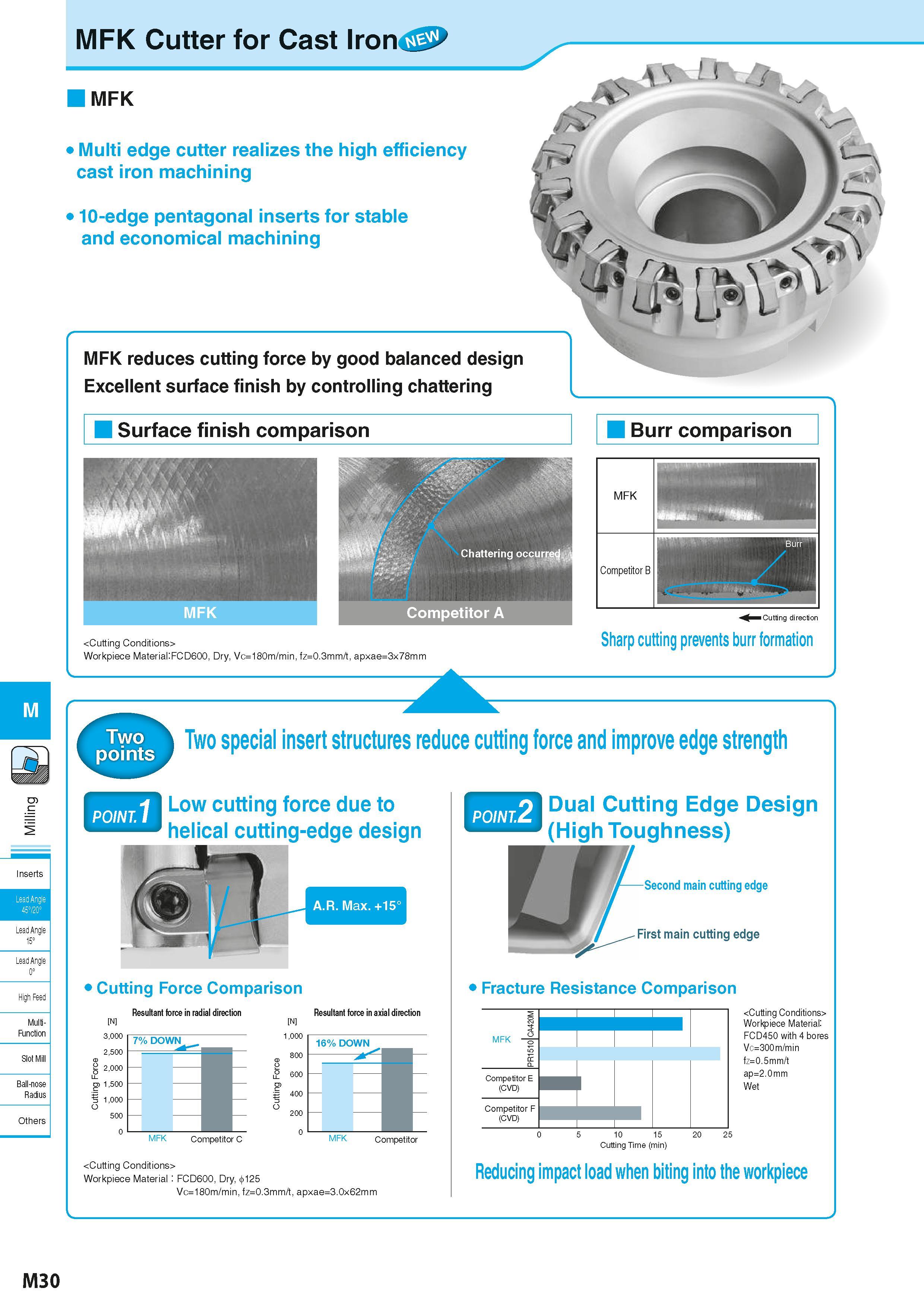

M Inserts Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius MFK Cutter for Cast Iron Multi edge cutter realizes the high efficiency cast iron machining 10-edge pentagonal inserts for stable and economical machining MFK reduces cutting force by good balanced design Excellent surface finish by controlling chattering MFK Surface finish comparison Burr comparison MFK Competitor B Workpiece MateriaKFCD6OO, Dry, Vo=18Om/min, fz=O.3mm/t, apxae=3x78mm Cutting direction Sharp cutting prevents burr formation Two special insert structures reduce cutting force and improve edge strength Low cutting force due to helical cutting-edge design A.R. Max. +15° Cutting Force Comparison Resultant force in radial direction Resultant force in axial direction 7% DOWN N 3,000 2,500 2,000 UL o> 1,500 cz 15 1,000 O 500 0 N 1,000 16% DOWN MFK Competitor C 800 600 400 200 0 MFK Competitor Workpiece Material FCD6OO, Dry, 125 VC=18Om/min, fz=O.3mm/t, apxae=3.Ox62mm Dual Cutting Edge Design (High Toughness) Fracture Resistance Comparison Workpiece Material: FCD45O with 4 bores VC=3OOm/min fz=O.5mm/t ap=2.Omm Wet 5 10 15 20 25 Cutting Time (min) Reducing impact load when biting into the workpiece 0 M30
