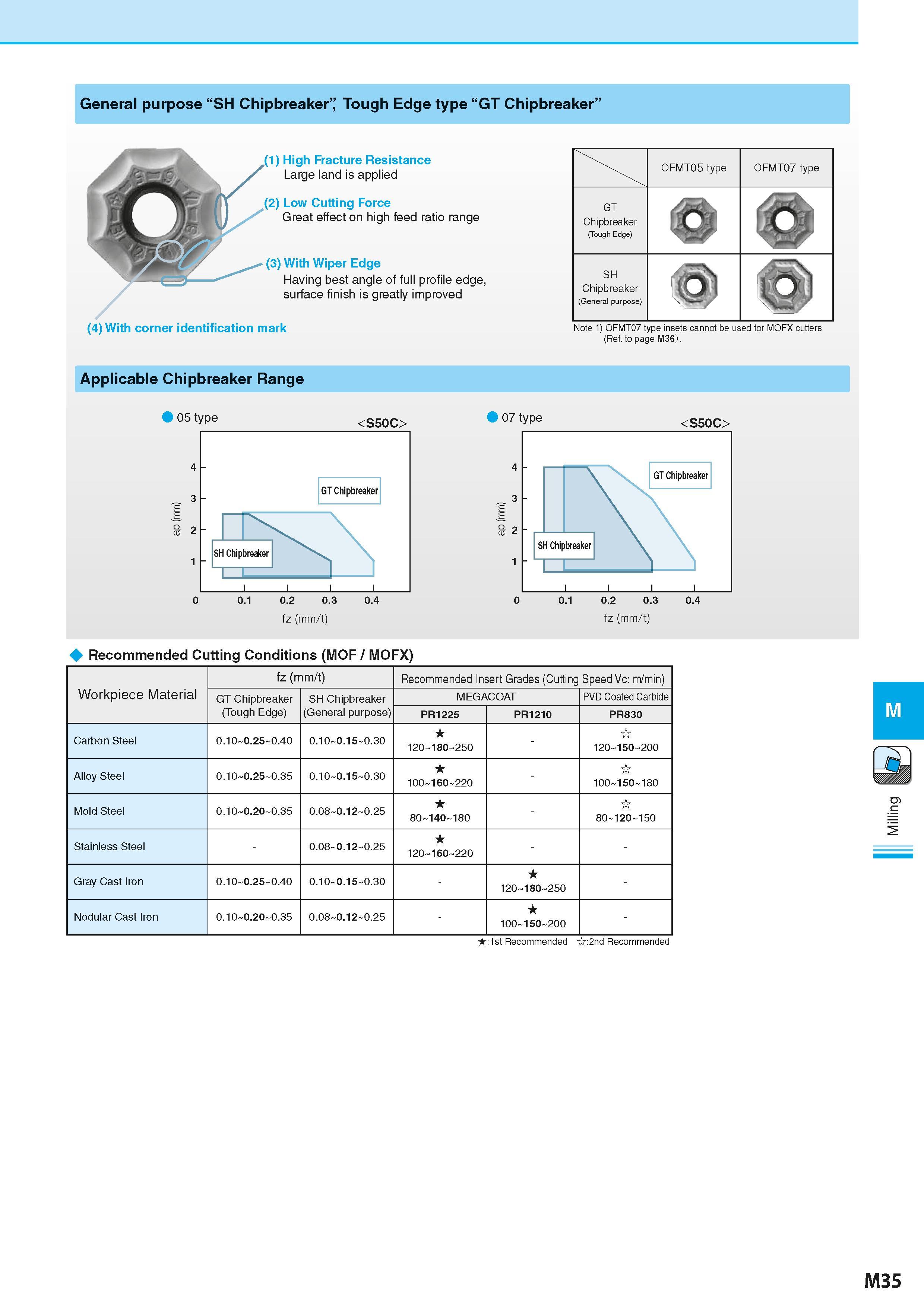

General purpose “SH Chipbreaker" Tough Edge type “GT Chipbreaker” ,(1) High Fracture Resistance Large land is applied (2) Low Cutting Force Great effect on high feed ratio range (3) With Wiper Edge Having best angle of full profile edge, surface finish is greatly improved (4) With corner identification mark Note 1) 0FMT07 type insets cannot be used for MOFX cutters (Ref. to page M36). Applicable Chipbreaker Range 05 type 07 type fz (mm/t) fz (mm/t) Recommended Cutting Conditions (MOF / MOFX) Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) GT Chipbreaker (Tough Edge) SH Chipbreaker (General purpose) MEGACOAT PVD Coated Carbide PR1225 PR1210 PR830 Carbon Steel 0.10 0.25 0.40 0.10 0.15 0.30 120 180 250 120 150 200 Alloy Steel 0.10 0.25 0.35 0.10 0.15 0.30 100 160 220 100 150 180 Mold Steel 0.10 0.20 0.35 0.08 0.12 0.25 80 140 180 80 120 150 Stainless Steel 0.08 0.12 0.25 120 160 220 - Gray Cast Iron 0.10 0.25 0.40 0.10 0.15 0.30 120 180 250 - Nodular Cast Iron 0.10 0.20 0.35 0.08 0.12 0.25 100 150 200 - :1st Recommended :2nd Recommended M35
