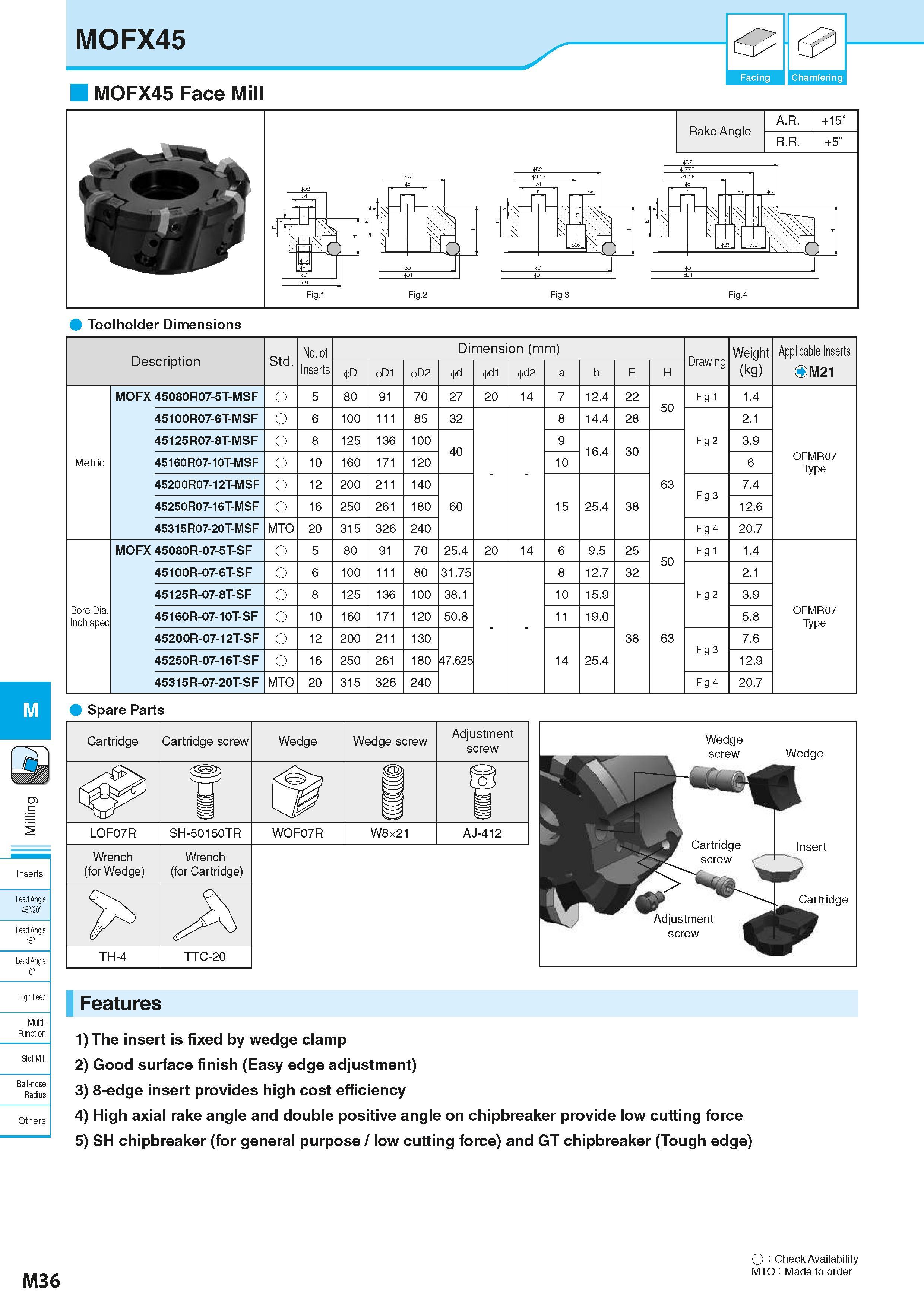

MOFX45 MOFX45 Face Mill Facing Chamfering Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Drawing Weight (kg) Applicable Inserts OM21 4>D 4>D1 D2 c)>d c)>d1 d2 a b E H Metric MOFX 45080R07-5T-MSF O 5 80 91 70 27 20 14 7 12.4 22 50 Fig.1 1.4 0FMR07 Type 45100R07-6T-MSF O 6 100 111 85 32 8 14.4 28 Fig.2 2.1 45125R07-8T-MSF O 8 125 136 100 40 9 16.4 30 63 3.9 45160R07-10T-MSF O 10 160 171 120 10 6 45200R07-12T-MSF O 12 200 211 140 60 15 25.4 38 Fig.3 7.4 45250R07-16T-MSF O 16 250 261 180 12.6 45315R07-20T-MSF MTO 20 315 326 240 Fig.4 20.7 Bore Dia. Inch spec MOFX 45080R-07-5T-SF O 5 80 91 70 25.4 20 14 6 9.5 25 50 Fig.1 1.4 0FMR07 Type 45100R-07-6T-SF O 6 100 111 80 31.75 8 12.7 32 Fig.2 2.1 45125R-07-8T-SF O 8 125 136 100 38.1 10 15.9 38 63 3.9 45160R-07-10T-SF O 10 160 171 120 50.8 11 19.0 5.8 45200R-07-12T-SF O 12 200 211 130 47.625 14 25.4 Fig.3 7.6 45250R-07-16T-SF O 16 250 261 180 12.9 45315R-07-20T-SF MTO 20 315 326 240 Fig.4 20.7 Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Ball-nose Radius Spare Parts Cartridge Cartridge screw Wedge Wedge screw Adjustment screw i f L0F07R SH-50150TR W0F07R W8x21 AJ-412 Wrench (for Wedge) Wrench (for Cartridge) TH-4 TTC-20 Features Wedge screw Wedge Insert Cartridge 1) The insert is fixed by wedge clamp 2) Good surface finish (Easy edge adjustment) 3) 8-edge insert provides high cost efficiency 4) High axial rake angle and double positive angle on chipbreaker provide low cutting force 5) SH chipbreaker (for general purpose / low cutting force) and GT chipbreaker (Tough edge) Slot Mi M36 O Check Availability MTO Made to order
