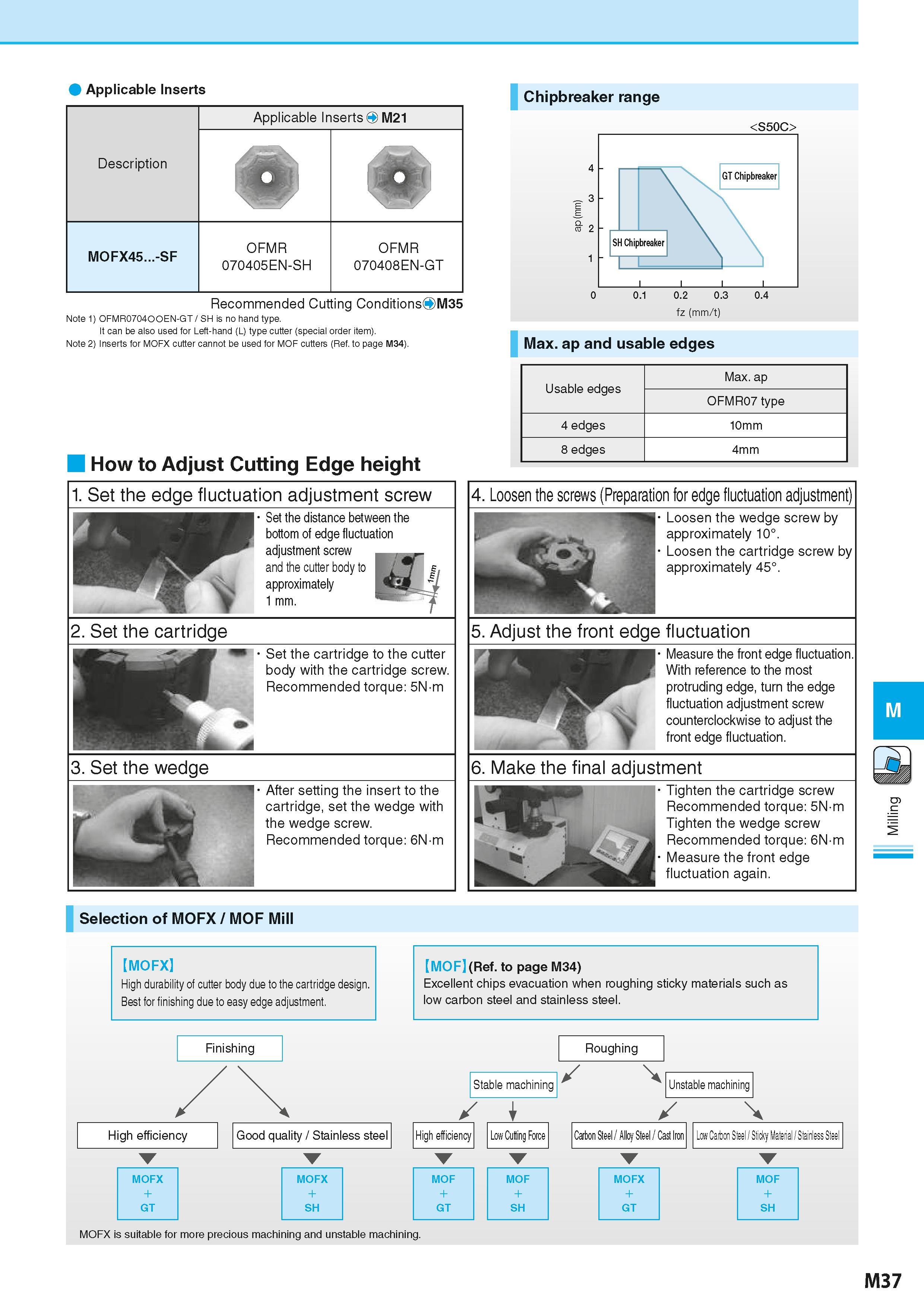

Applicable Inserts Applicable Inserts O M21 Description H MOFX45...-SF OFMR 070405EN-SH OFMR 070408EN-GT Recommended Cutting ConditionsO M35 Note 1) OFMR070400EN-GT / SH is no hand type. It can be also used for Left-hand (L) type cutter (special order item). Note 2) Inserts for MOFX cutter cannot be used for MOF cutters (Ref. to page M34). How to Adjust Cutting Edge height Chipbreaker range fz (mm/t) Ma . ap and usable edges Usable edges Max. ap OFMR07 type 4 edges 10mm 8 edges 4mm 1. Set the edge fluctuation adjustment screw Set the distance between the bottom of edge fluctuation adjustment screw and the cutter body to 1e. approximately 2. Set the cartridge Jk. a Set the cartridge to the cutter body with the cartridge screw. Recommended torque: 5N-m 3. Set the wedge After setting the insert to the cartridge, set the wedge with the wedge screw. Recommended torque: 6N-m 4. Loosen the screws (Preparation for edge fluctuation adjustment) I' Loosen the wedge screw by approximately 10°. Loosen the cartridge screw by approximately 45°. 5. Adjust the front edge fluctuation Measure the front edge fluctuation. With reference to the most protruding edge, turn the edge fluctuation adjustment screw counterclockwise to adjust the front edge fluctuation. 6. Make the final adjustment Tighten the cartridge screw Recommended torque: 5N-m Tighten the wedge screw Recommended torque: 6N-m Measure the front edge fluctuation again. Selection of MOFX / MOF Mill MOFX is suitable for more precious machining and unstable machining. M37
