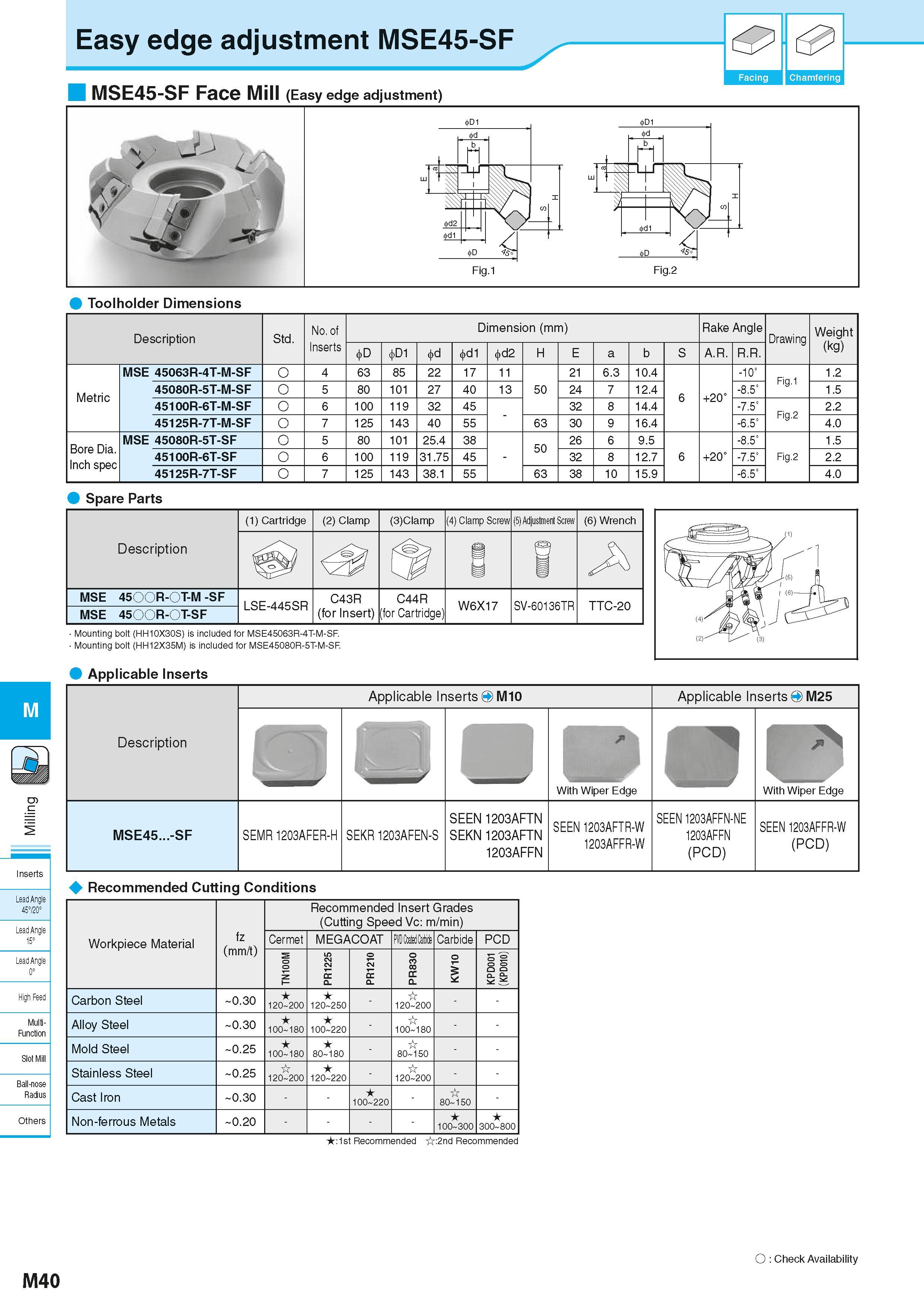

Easy edge adjustment MSE45-SF MSE45-SF Face Mill (Easy edge adjustment) 0 Facing Chamfering D1 h d A -“-H i 'C I d2 di D Fig.1 0D1 n 0d1 6D JSo Fig.2 Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Drawing Weight (kg) D D1 d d1 d2 H E a b S A.R. R.R. Metric MSE 45063R-4T-M-SF O 4 63 85 22 17 11 50 21 6.3 10.4 6 +20° -10° Fig.1 1.2 45080R-5T-M-SF O 5 80 101 27 40 13 24 7 12.4 -8.5° 1.5 45100R-6T-M-SF O 6 100 119 32 45 - 32 8 14.4 -7.5° Fig.2 2.2 45125R-7T-M-SF O 7 125 143 40 55 63 30 9 16.4 -6.5° 4.0 Bore Dia. Inch spec MSE 45080R-5T-SF O 5 80 101 25.4 38 - 50 26 6 9.5 6 +20° -8.5° Fig.2 1.5 45100R-6T-SF O 6 100 119 31.75 45 32 8 12.7 -7.5° 2.2 45125R-7T-SF O 7 125 143 38.1 55 63 38 10 15.9 -6.5° 4.0 Spare Parts Description (1) Cartridge (2) Clamp (3)Clamp (4) Clamp Screw (5) Adjustment Screw (6) Wrench 8 A MSE 45OOR-OT-M -SF LSE-445SR C43R (for Insert) C44R (for Cartridge) W6X17 SV-60136TR TTC-20 MSE 45OOR-OT-SF Mounting bolt (HH10X30S) is included for MSE45063R-4T-M-SF. Mounting bolt (HH12X35M) is included for MSE45080R-5T-M-SF. Applicable Inserts Description MSE45...-SF Applicable Inserts O M10 Applicable Inserts O M25 SEMR 1203AFER-H SEKR 1203AFEN-S SEEN 1203AFTN SEKN 1203AFTN 1203AFFN With Wiper Edge SEEN 1203AFTR-W 1203AFFR-W SEEN 1203AFFN-NE 1203AFFN (PCD) Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Ball-nose Radius Recommended Cutting Conditions Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) Cermet MEGACOAT PVD Cated Cato Carbide PCD TN100M PR1225 PR1210 PR830 KW10 KPD001 (KPD010) Carbon Steel 0.30 120 200 120 250 120 200 Alloy Steel 0.30 100 180 100 220 100 180 Mold Steel 0.25 100 180 80 180 80 150 Stainless Steel 0.25 120 200 120 220 120 200 Cast Iron 0.30 100 220 80 150 Non-ferrous Metals 0.20 100 300 300 800 :1st Recommended :2nd Recommended M Slot Mi M40 O Check Availability
