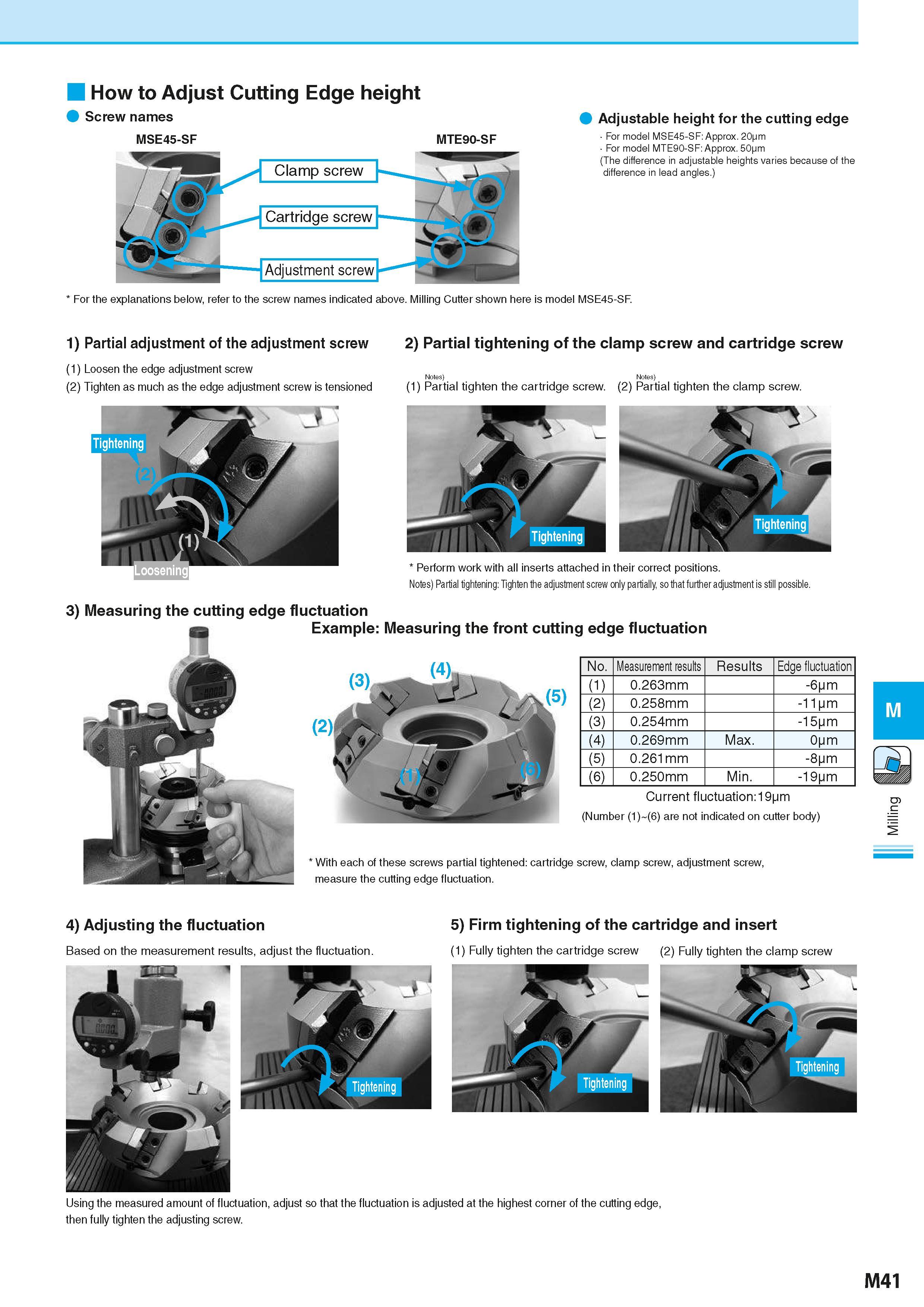

How to Adjust Cutting Edge height Screw names MSE45-SF MTE90-SF Adjustable height for the cutting edge For model MSE45-SF: Approx. 20pm For model MTE90-SF: Approx. 50pm (The difference in adjustable heights varies because of the difference in lead angles.) r For the explanations below, refer to the screw names indicated above. Milling Cutter shown here is model MSE45-SF. 1) Partial adjustment of the adjustment screw 2) Partial tightening of the clamp screw and cartridge screw (1) Loosen the edge adjustment screw (2) Tighten as much as the edge adjustment screw is tensioned Tightening (1) Partial tighten the cartridge screw. (2) Partial tighten the clamp screw. Perform work with all inserts attached in their correct positions. Notes) Partial tightening: Tighten the adjustment screw only partially, so that further adjustment is still possible. 3) Measuring the cutting edge fluctuation Example: Measuring the front cutting edge fluctuation (5) No. Measurement results Results Edge fluctuation (1) 0.263mm -6pm (2) 0.258mm -11pm (3) 0.254mm -15pm (4) 0.269mm Max. 0pm (5) 0.261mm -8pm (6) 0.250mm Min. -19pm Current fluctuation:19pm (Number (1) (6) are not indicated on cutter body) With each of these screws partial tightened: cartridge screw, clamp screw, adjustment screw, measure the cutting edge fluctuation. 4) Adjusting the fluctuation 5) Firm tightening of the cartridge and insert Based on the measurement results, adjust the fluctuation. (1) Fully tighten the cartridge screw (2) Fully tighten the clamp screw Using the measured amount of fluctuation, adjust so that the fluctuation is adjusted at the highest corner of the cutting edge, then fully tighten the adjusting screw. M41
