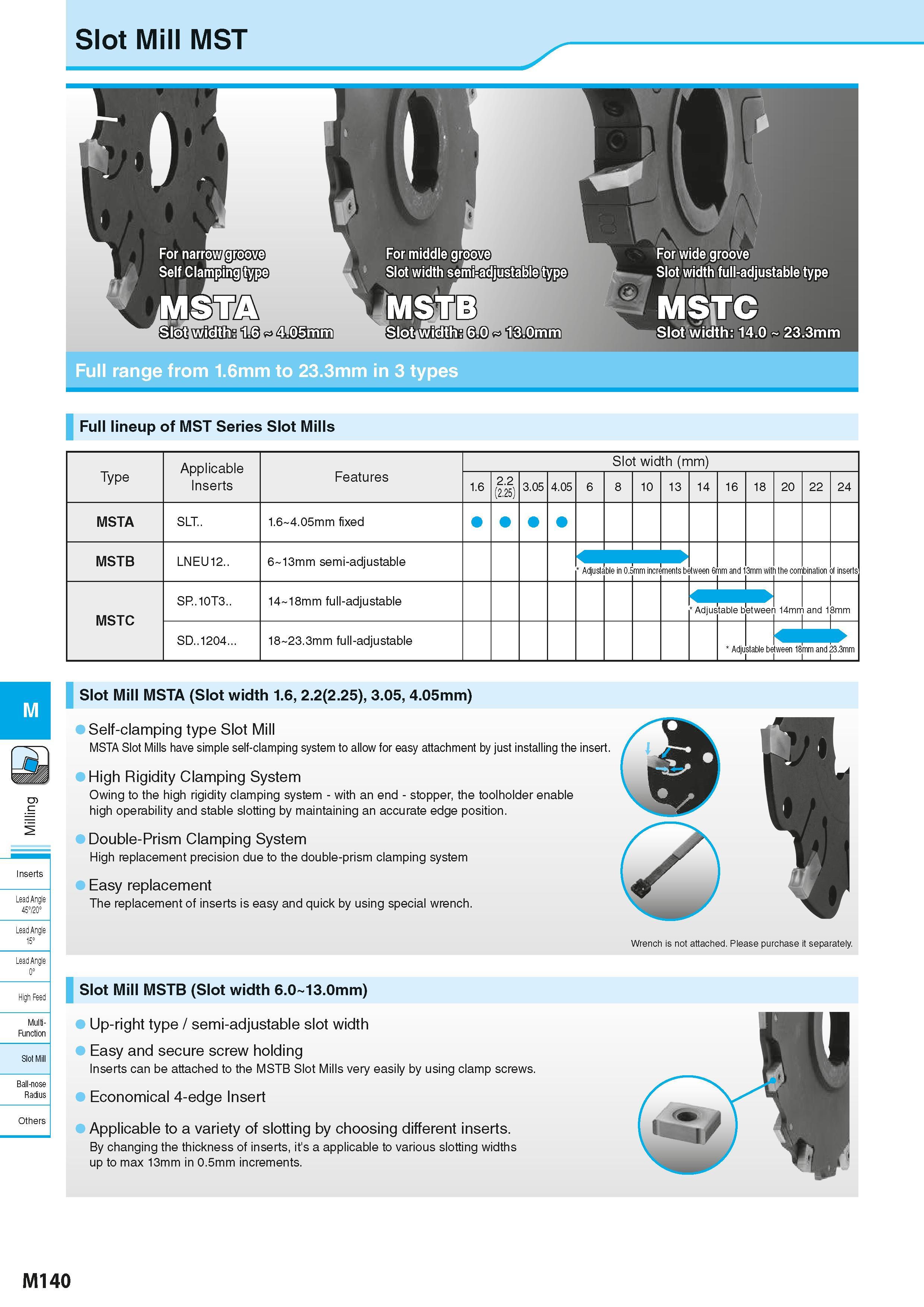

Slot Mill MST Full range from 1.6mm to 23.3mm in 3 types Full lineup of MST Series Slot Mills Type Applicable Inserts Features Slot width (mm) 1.6 2.2 (2.25) 3.05 4.05 6 8 10 13 14 16 18 20 22 24 MSTA SLT.. 1.6 4.05mm fixed MSTB LNEU12.. 6 13mm semi-adjustable Adjusta ble in 0.5 mm incr ments b tween 6 mm and 1 3mm wit h the com bination >f inserts MSTC SP.10T3.. 14 18mm full-adjustable Adjus table b etwee 14mm and 1 8mm SD..1204... 18 23.3mm full-adjustable Adju stable be ween 18mm and 23.3mm 1 1 Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Ball-nose Radius Slot Mill MSTA (Slot width 1.6, 2.2(2.25), 3.05, 4.05mm) Self-clamping type Slot Mill MSTA Slot Mills have simple self-clamping system to allow for easy attachment by just installing the insert. High Rigidity Clamping System Owing to the high rigidity clamping system - with an end - stopper, the toolholder enable high operability and stable slotting by maintaining an accurate edge position. Double-Prism Clamping System High replacement precision due to the double-prism clamping system Easy replacement The replacement of inserts is easy and quick by using special wrench. Slot Mill MSTB (Slot width 6.0 13.0mm) Up-right type / semi-adjustable slot width Easy and secure screw holding Inserts can be attached to the MSTB Slot Mills very easily by using clamp screws. Economical 4-edge Insert Applicable to a variety of slotting by choosing different inserts. By changing the thickness of inserts, it's a applicable to various slotting widths up to max 13mm in 0.5mm increments. Wrench is not attached. Please purchase it separately. M140 M Slot Mi
