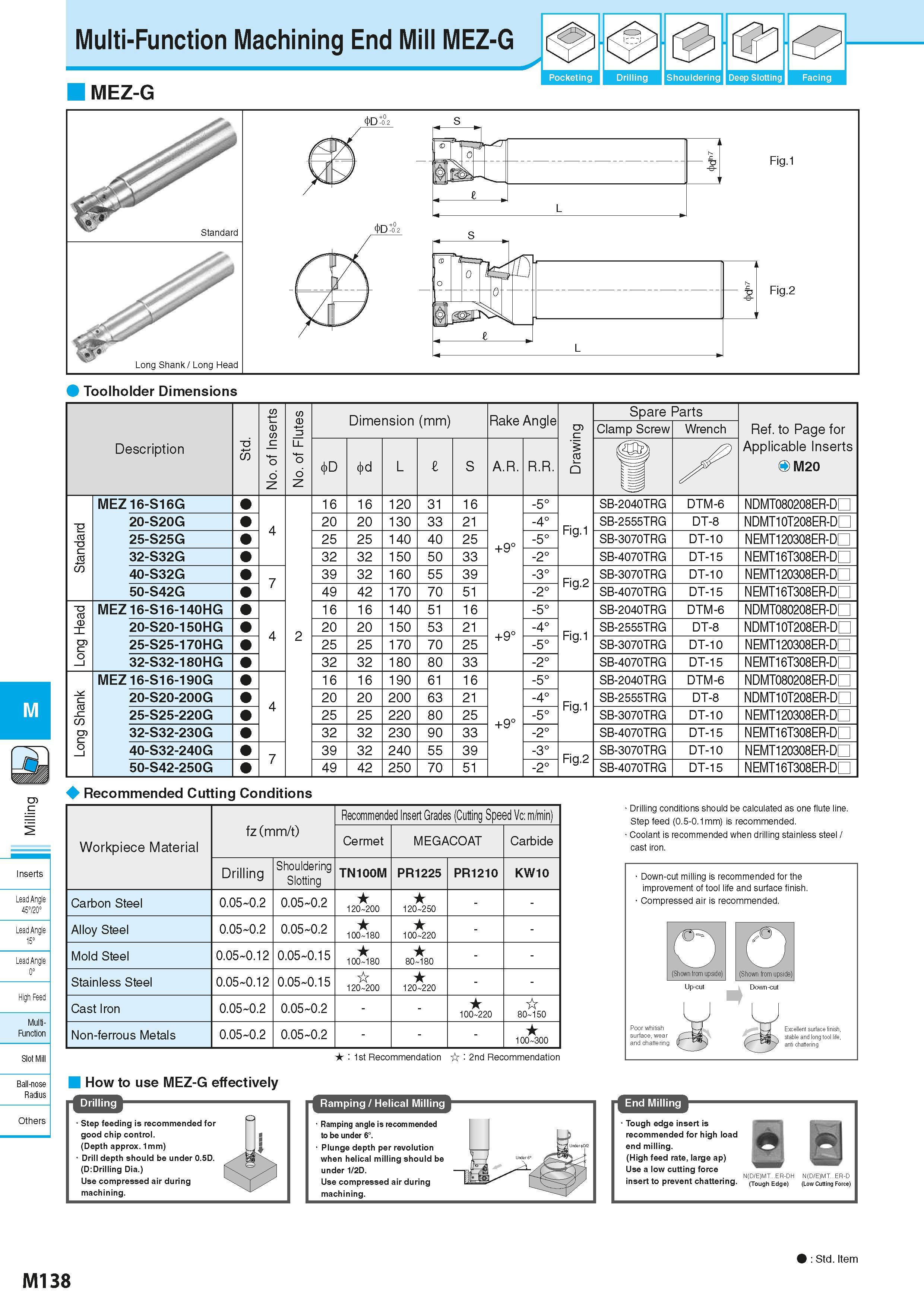

Toolholder Dimensions M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius Others Description -6 55 No. of Inserts No. of Flutes Dimension (mm) Размеры инструмента указаны в мм Rake Angle Drawing Spare Parts Ref. to Page for Applicable Inserts OM20 Clamp Screw Wrench < D d L 1 S A.R. R.R. u X Standard MEZ 16-S16G 4 2 16 16 120 31 16 +9° -5° Fig.1 SB-2040TRG DTM-6 NDMT080208ER-D 20-S20G 20 20 130 33 21 -4° SB-2555TRG DT-8 NDMT10T208ER-D 25-S25G 25 25 140 40 25 -5° SB-3070TRG DT-10 NEMT120308ER-D 32-S32G 32 32 150 50 33 -2° SB-4070TRG DT-15 NEMT16T308ER-D 40-S32G 7 39 32 160 55 39 -3° Fig.2 SB-3070TRG DT-10 NEMT120308ER-D 50-S42G 49 42 170 70 51 -2° SB-4070TRG DT-15 NEMT16T308ER-D Long Head MEZ 16-S16-140HG 4 16 16 140 51 16 +9° -5° Fig.1 SB-2040TRG DTM-6 NDMT080208ER-D 20-S20-150HG 20 20 150 53 21 -4° SB-2555TRG DT-8 NDMT10T208ER-D 25-S25-170HG 25 25 170 70 25 -5° SB-3070TRG DT-10 NEMT120308ER-D 32-S32-180HG 32 32 180 80 33 -2° SB-4070TRG DT-15 NEMT16T308ER-D Long Shank MEZ 16-S16-190G 4 16 16 190 61 16 +9° -5° Fig.1 SB-2040TRG DTM-6 NDMT080208ER-D 20-S20-200G 20 20 200 63 21 -4° SB-2555TRG DT-8 NDMT10T208ER-D 25-S25-220G 25 25 220 80 25 -5° SB-3070TRG DT-10 NEMT120308ER-D 32-S32-230G 32 32 230 90 33 -2° SB-4070TRG DT-15 NEMT16T308ER-D 40-S32-240G 7 39 32 240 55 39 -3° Fig.2 SB-3070TRG DT-10 NEMT120308ER-D 50-S42-250G 49 42 250 70 51 -2° SB-4070TRG DT-15 NEMT16T308ER-D Recommended Cutting Conditions Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) Cermet MEGACOAT Carbide Drilling Shouldering Slotting TN100M PR1225 PR1210 KW10 Carbon Steel 0.05-0.2 0.05-0.2 120-200 120-250 Alloy Steel 0.05-0.2 0.05-0.2 100-180 100-220 Mold Steel 0.05-0.12 0.05-0.15 100-180 80-180 Stainless Steel 0.05-0.12 0.05-0.15 120-200 120-220 Cast Iron 0.05-0.2 0.05-0.2 100-220 80-150 Non-ferrous Metals 0.05-0.2 0.05-0.2 - 100-300 Drilling conditions should be calculated as one flute line. Step feed (0.5-0.1mm) is recommended. Coolant is recommended when drilling stainless steel / cast iron. 1st Recommendation 2nd Recommendation How to use MEZ-G effectively - Step feeding is recommended for good chip control. (Depth approx. 1mm) - Drill depth should be under 0.5D. (D:Drilling Dia.) Use compressed air during machining. I Ramp / Helical M - Ramping angle is recommended to be under 6°. - Plunge depth per revolution when helical milling should be under 1/2D. Use compressed air during machining. End Milling Tough edge insert is recommended for high load end milling. (High feed rate, large ap) Use a low cutting force insert to prevent chattering. N(D/E)MT..ER-DH N(D/E)MT..ER-D (Tough Edge) (Low Cutting Force) M138 Std. Item
