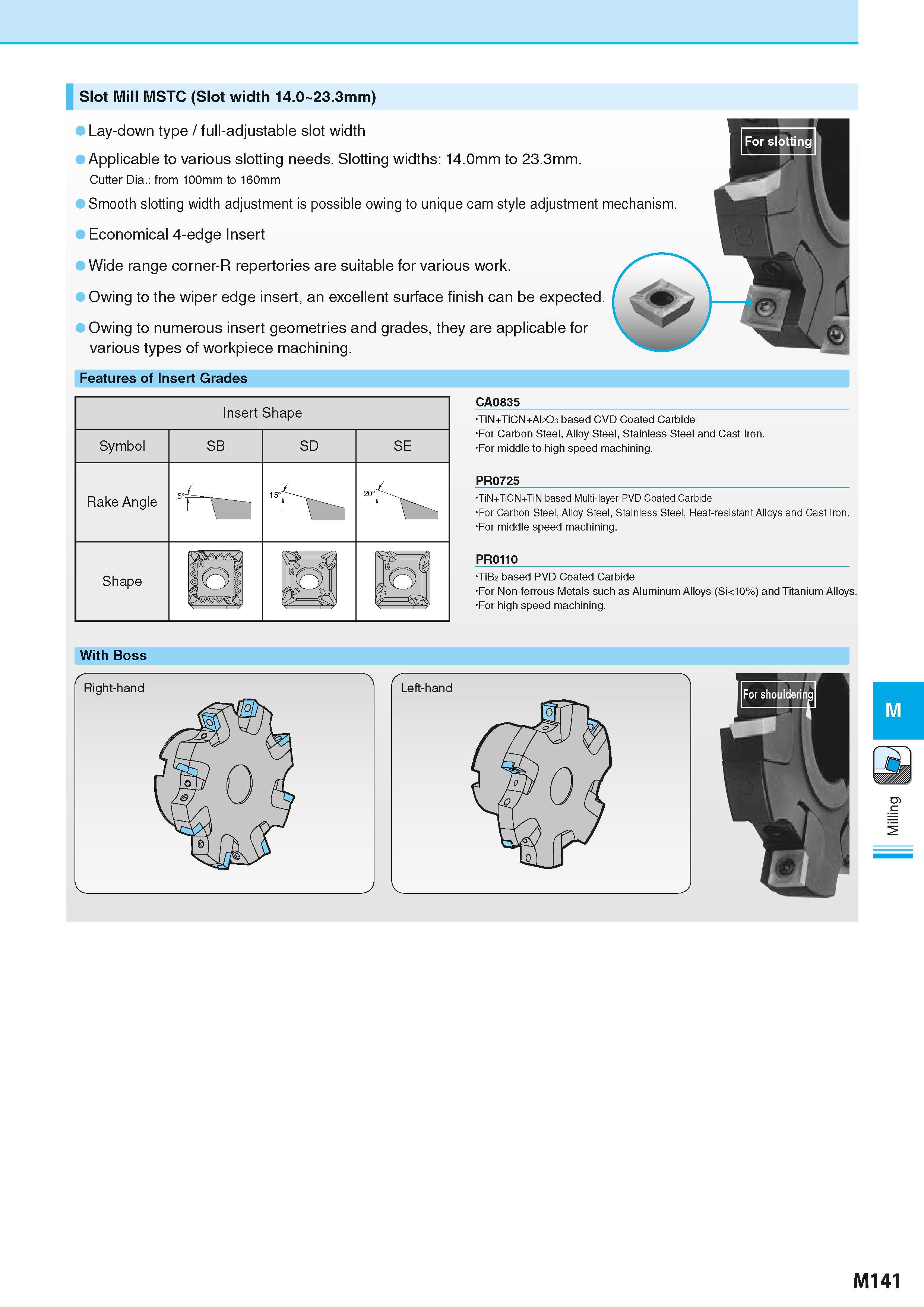

Slot Mill MSTC (Slot width 14.0 23.3mm) Lay-down type / full-adjustable slot width Applicable to various slotting needs. Slotting widths: 14.0mm to 23.3mm. Cutter Dia.: from 100mm to 160mm Smooth slotting width adjustment is possible owing to unique cam style adjustment mechanism. Economical 4-edge Insert Wide range corner-R repertories are suitable for various work. Owing to the wiper edge insert, an excellent surface finish can be expected. Owing to numerous insert geometries and grades, they are applicable for various types of workpiece machining. Features of Insert Grades Insert Shape Symbol Rake Angle Shape SB SD SE CA0835 TiN+TiCN+Al2O3 based CVD Coated Carbide For Carbon Steel, Alloy Steel, Stainless Steel and Cast Iron. For middle to high speed machining. PR0725 TiN+TiCN+TiN based Multi-layer PVD Coated Carbide For Carbon Steel, Alloy Steel, Stainless Steel, Heat-resistant Alloys and Cast Iron. For middle speed machining. PR0110 TiB2 based PVD Coated Carbide For Non-ferrous Metals such as Aluminum Alloys (Si<10%) and Titanium Alloys. For high speed machining. With Boss 20° M141
