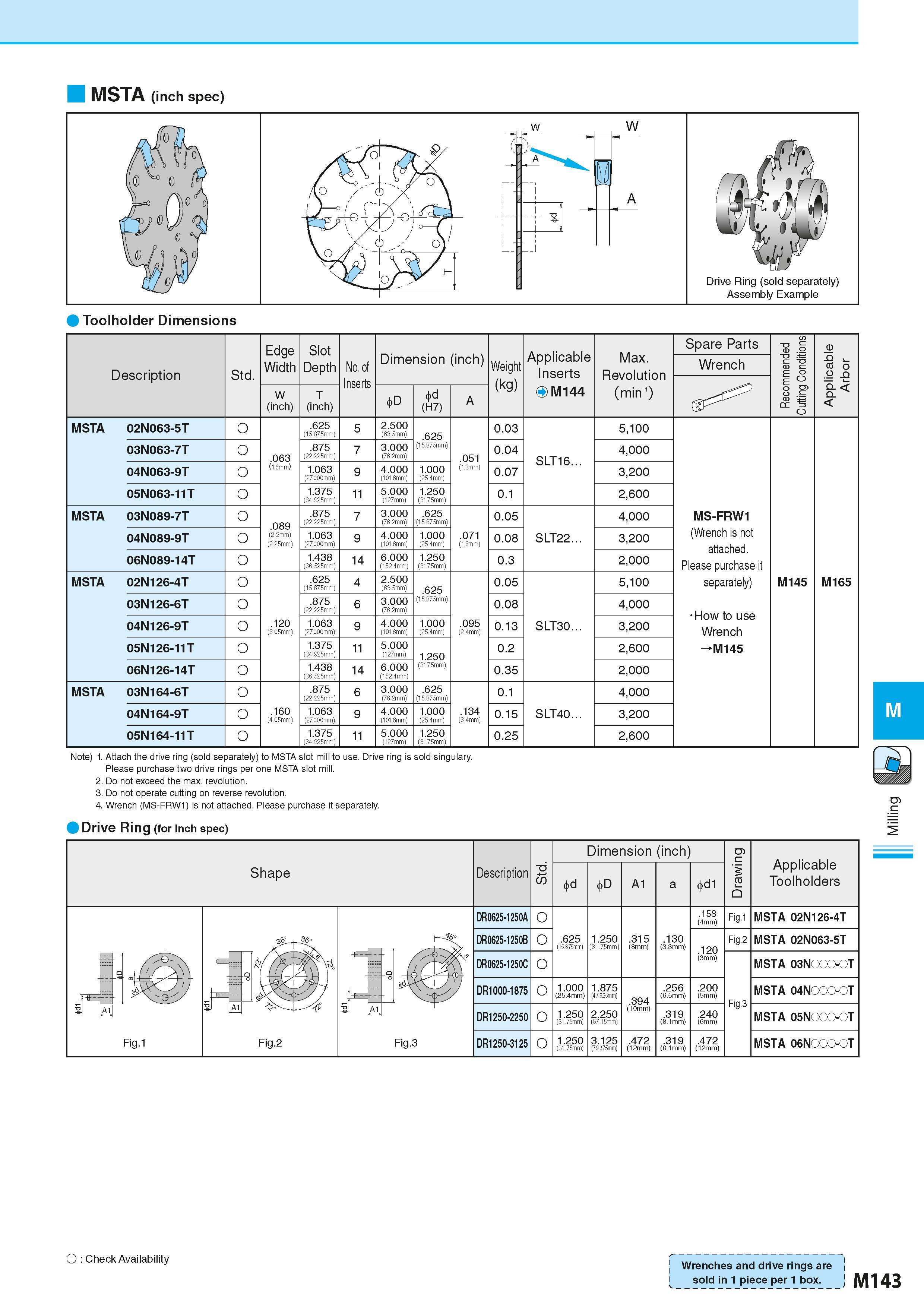

MSTA (inch spec) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Edge Width Slot Depth No. of Inserts Dimension (inch) Weight (kg) Applicable Inserts O M144 Max. Revolution (min-1) Spare Parts Wrench ty Recommended Cutting Conditions Applicable Arbor W (inch) T (inch) D (H7) A MSTA 02N063-5T O .063 (1.6mm) .625 (15.875mm) 5 2.500 (63.5mm) .625 (15.875mm) .051 (1.3mm) 0.03 SLT16... 5,100 MS-FRW1 (Wrench is not attached. Please purchase it separately) How to use Wrench M145 M145 M165 03N063-7T O .875 (22.225mm) 7 3.000 (76.2mm) 0.04 4,000 04N063-9T O 1.063 (27000mm) 9 4.000 (101.6mm) 1.000 (25.4mm) 0.07 3,200 05N063-11T O 1.375 (34.925mm) 11 5.000 (127mm) 1.250 (3175mm) 0.1 2,600 MSTA 03N089-7T O .089 (2.2mm) (2.25mm) .875 (22.225mm) 7 3.000 (76.2mm) .625 (15.875mm) .071 (1.8mm) 0.05 SLT22... 4,000 04N089-9T O 1.063 (27000mm) 9 4.000 (101.6mm) 1.000 (25.4mm) 0.08 3,200 06N089-14T O 1.438 (36.525mm) 14 6.000 (152.4mm) 1.250 (3175mm) 0.3 2,000 MSTA 02N126-4T O .120 (3.05mm) .625 (15.875mm) 4 2.500 (63.5mm) .625 (15.875mm) .095 (2.4mm) 0.05 SLT30... 5,100 03N126-6T O .875 (22.225mm) 6 3.000 (76.2mm) 0.08 4,000 04N126-9T O 1.063 (27000mm) 9 4.000 (101.6mm) 1.000 (25.4mm) 0.13 3,200 05N126-11T O 1.375 (34.925mm) 11 5.000 (127mm) 1.250 (3175mm) 0.2 2,600 06N126-14T O 1.438 (36.525mm) 14 6.000 (152.4mm) 0.35 2,000 MSTA 03N164-6T O .160 (4.05mm) .875 (22.225mm) 6 3.000 (76.2mm) .625 (15.875mm) .134 (3.4mm) 0.1 SLT40... 4,000 04N164-9T O 1.063 (27000mm) 9 4.000 (101.6mm) 1.000 (25.4mm) 0.15 3,200 05N164-11T O 1.375 (34.925mm) 11 5.000 (127mm) 1.250 (3175mm) 0.25 2,600 Note) 1. Attach the drive ring (sold separately) to MSTA slot mill to use. Drive ring is sold singulary Please purchase two drive rings per one MSTA slot mill. 2. Do not exceed the max. revolution. 3. Do not operate cutting on reverse revolution. 4. Wrench (MS-FRW1) is not attached. Please purchase it separately Drive Ring (for Inch spec) O Check Availability f ,,, . .... \ Wrenches and drive rings are i i sold in 1 piece per 1 box. J M143
