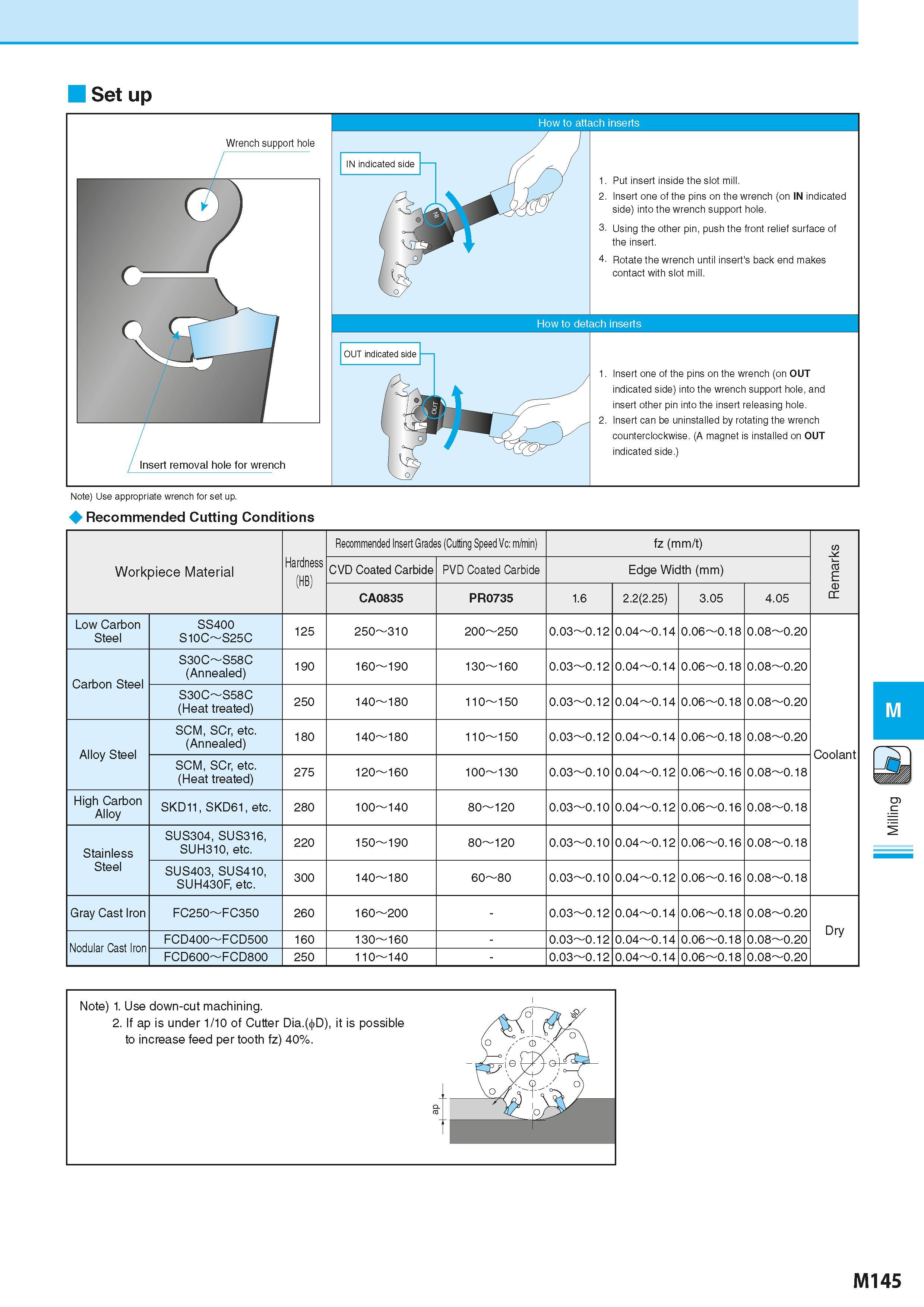

Set up How to attach inserts Wrench support hole 1. Put insert inside the slot mill. 2. Insert one of the pins on the wrench (on IN indicated side) into the wrench support hole. 3. Using the other pin, push the front relief surface of the insert. 4. Rotate the wrench until insert's back end makes contact with slot mill. How to detach inserts 1. Insert one of the pins on the wrench (on OUT indicated side) into the wrench support hole, and insert other pin into the insert releasing hole. 2. Insert can be uninstalled by rotating the wrench counterclockwise. (A magnet is installed on OUT indicated side.) Note) Use appropriate wrench for set up. Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) fz (mm/t) Remarks Workpiece Material Hardness (HB) CVD Coated Carbide PVD Coated Carbide Edge Width (mm) CA0835 PR0735 1.6 2.2(2.25) 3.05 4.05 Low Carbon Steel SS400 S10C S25C 125 250 310 200 250 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 Carbon Steel S30C S58C (Annealed) 190 160 190 130 160 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 S30C S58C (Heat treated) 250 140 180 110 150 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 Alloy Steel SCM, SCr, etc. (Annealed) 180 140 180 110 150 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 Coolant SCM, SCr, etc. (Heat treated) 275 120 160 100 130 0.03 0.10 0.04 0.12 0.06 0.16 0.08 0.18 High Carbon Alloy SKD11, SKD61, etc. 280 100 140 80 120 0.03 0.10 0.04 0.12 0.06 0.16 0.08 0.18 Stainless SUS304, SUS316, SUH310, etc. 220 150 190 80 120 0.03 0.10 0.04 0.12 0.06 0.16 0.08 0.18 Steel SUS403, SUS410, SUH430F, etc. 300 140 180 60 80 0.03 0.10 0.04 0.12 0.06 0.16 0.08 0.18 Gray Cast Iron FC250 FC350 260 160 200 - 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 Dry Nodular Cast Iron FCD400 FCD500 160 130 160 - 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 FCD600 FCD800 250 110 140 - 0.03 0.12 0.04 0.14 0.06 0.18 0.08 0.20 M145
