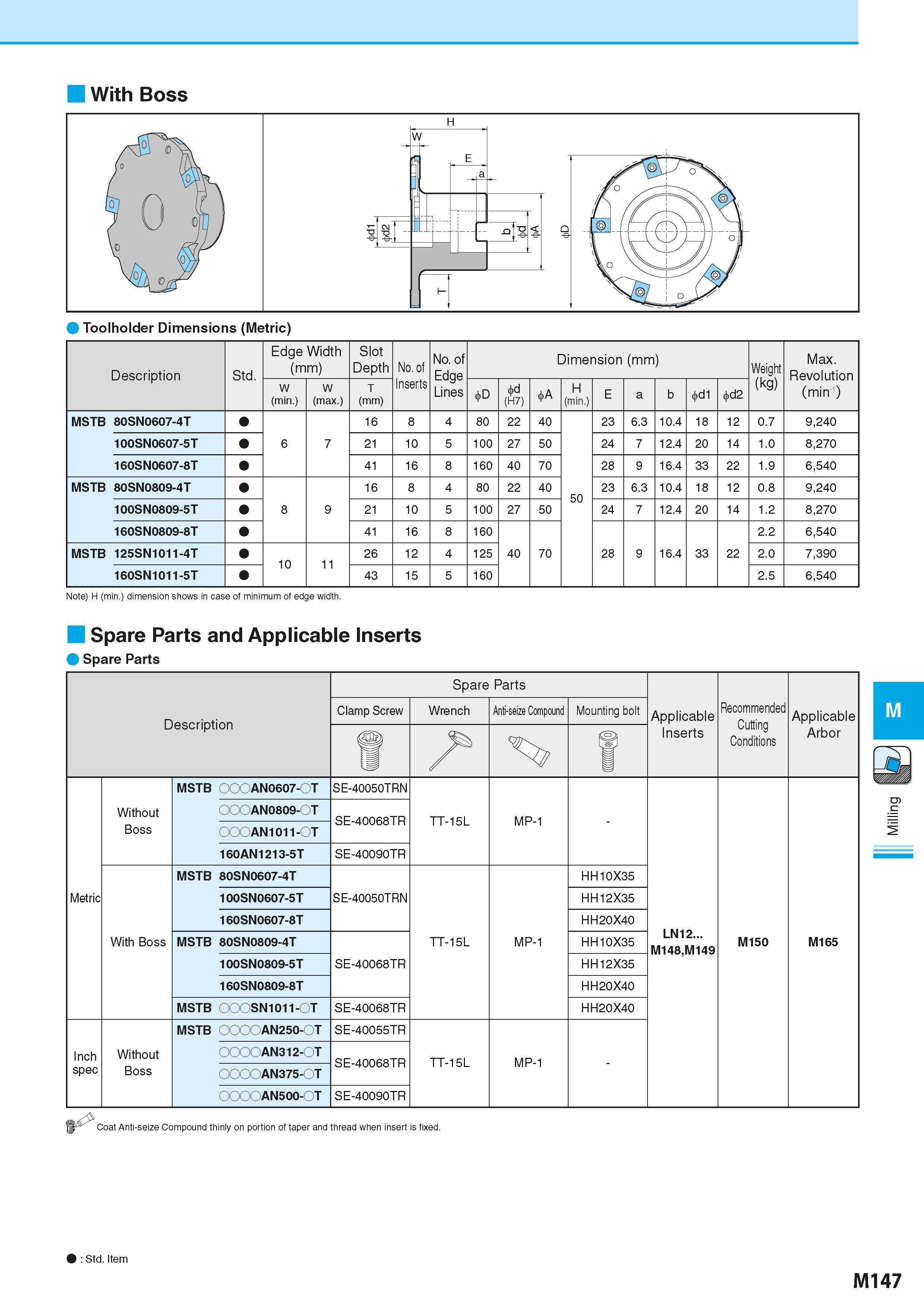

With Boss Toolholder Dimensions (Metric) Description Обозначение инструмента для заказа Std. Edge Width (mm) Slot Depth No. of Inserts No. of Edge Lines Dimension (mm) Размеры инструмента указаны в мм Weight (kg) Max. Revolution (min-1) W (min.) W (max.) T (mm) D (H7) A H (min.) E a b d1 d2 MSTB 80SN0607-4T 6 7 16 8 4 80 22 40 50 23 6.3 10.4 18 12 0.7 9,240 100SN0607-5T 21 10 5 100 27 50 24 7 12.4 20 14 1.0 8,270 160SN0607-8T 41 16 8 160 40 70 28 9 16.4 33 22 1.9 6,540 MSTB 80SN0809-4T 8 9 16 8 4 80 22 40 23 6.3 10.4 18 12 0.8 9,240 100SN0809-5T 21 10 5 100 27 50 24 7 12.4 20 14 1.2 8,270 160SN0809-8T 41 16 8 160 40 70 28 9 16.4 33 22 2.2 6,540 MSTB 125SN1011-4T 10 11 26 12 4 125 2.0 7,390 160SN1011-5T 43 15 5 160 2.5 6,540 Note) H (min.) dimension shows in case of minimum of edge width. Spare Parts and Applicable Inserts Spare Parts Spare Parts Clamp Screw Wrench Anti-seize Compound Mounting bolt Applicable Recommended Cutting Conditions Applicable u LwJ Inserts Arbor MSTB OOOAN0607-OT SE-40050TRN Without OOOAN0809-OT SE-40068TR TT-15L MP-1 Boss OOOAN1011-OT 160AN1213-5T SE-40090TR MSTB 80SN0607-4T HH10X35 Metric 100SN0607-5T SE-40050TRN HH12X35 160SN0607-8T HH20X40 LN12... M148,M149 With Boss MSTB 80SN0809-4T TT-15L MP-1 HH10X35 M150 M165 100SN0809-5T SE-40068TR HH12X35 160SN0809-8T HH20X40 MSTB OOOSN1011-OT SE-40068TR HH20X40 MSTB OOOOAN250-OT SE-40055TR Inch Without OOOOAN312-OT SE-40068TR TT-15L MP-1 spec Boss OOOOAN375-OT OOOOAN500-OT SE-40090TR Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. M Std. Item M147
