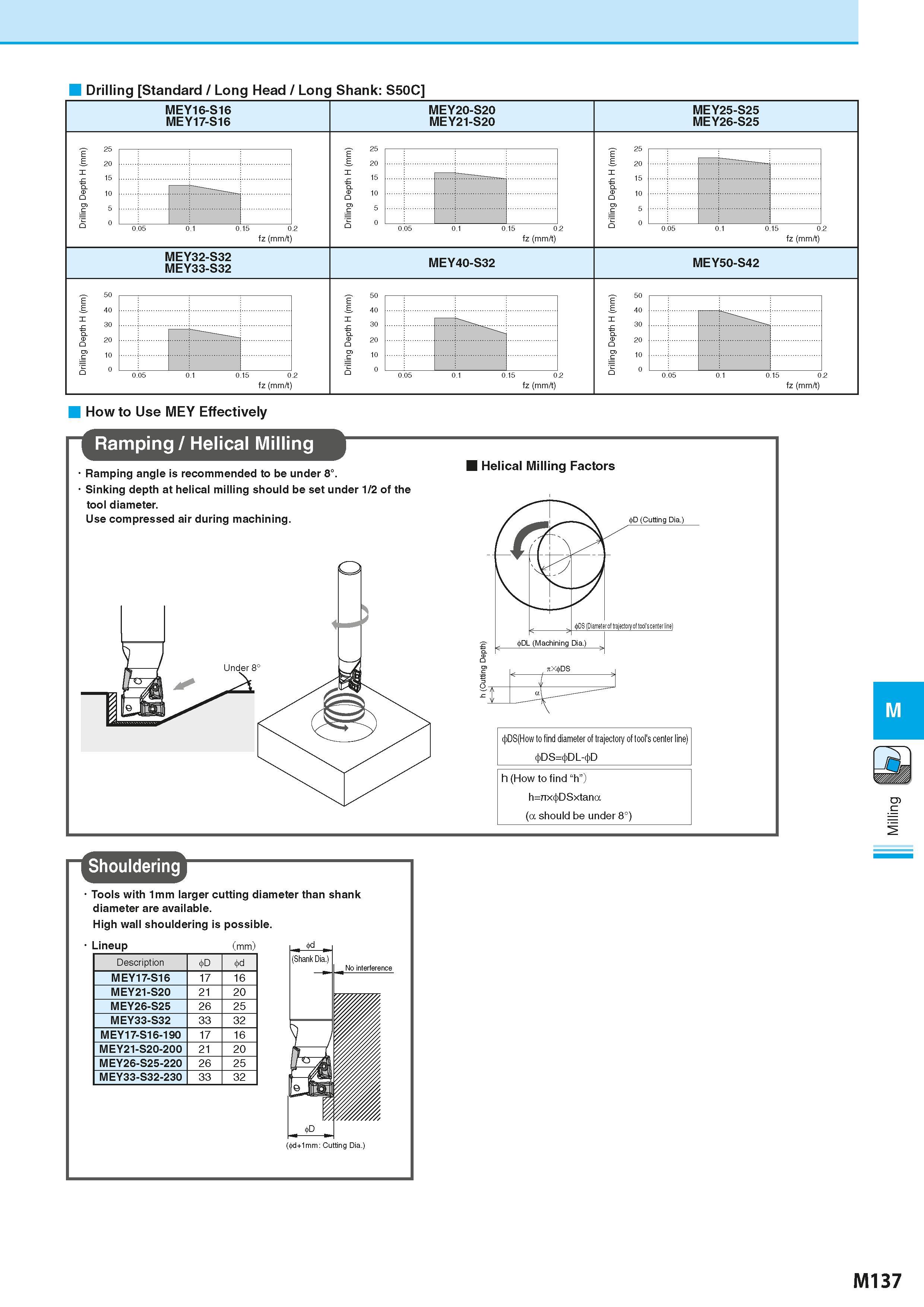

Drilling Standard / Long Head / Long Shank: S50C MEY16-S16 MEY17-S16 MEY20-S20 MEY21-S20 MEY25-S25 MEY26-S25 25 20 15 10 5 0 25 20 15 10 5 0 fz (mm/t) fz (mm/t) fz (mm/t) MEY32-S32 MEY33-S32 MEY40-S32 MEY50-S42 50 40 30 20 10 0 50 40 30 20 10 0 fz (mm/t) fz (mm/t) fz (mm/t) How to Use MEY Effectively Ramping / Helical Milling Ramping angle is recommended to be under 8°. Sinking depth at helical milling should be set under 1/2 of the tool diameter. Use compressed air during machining. Helical Milling Factors 1 nXtpDS 1 I 4>DS(How to find diameter of trajectory of tool's center line) 4>DS=4>DL-4>D h (How to find “h”) h=nx4>DSxtana (a should be under 8°) Shouldering Tools with 1mm larger cutting diameter than shank diameter are available. High wall shouldering is possible. Lineup (mm) Description D 4>d MEY17-S16 17 16 MEY21-S20 21 20 MEY26-S25 26 2S MEY33-S32 33 32 MEY17-S16-190 17 16 MEY21-S20-200 21 20 MEY26-S25-220 26 2S MEY33-S32-230 33 32 M137
