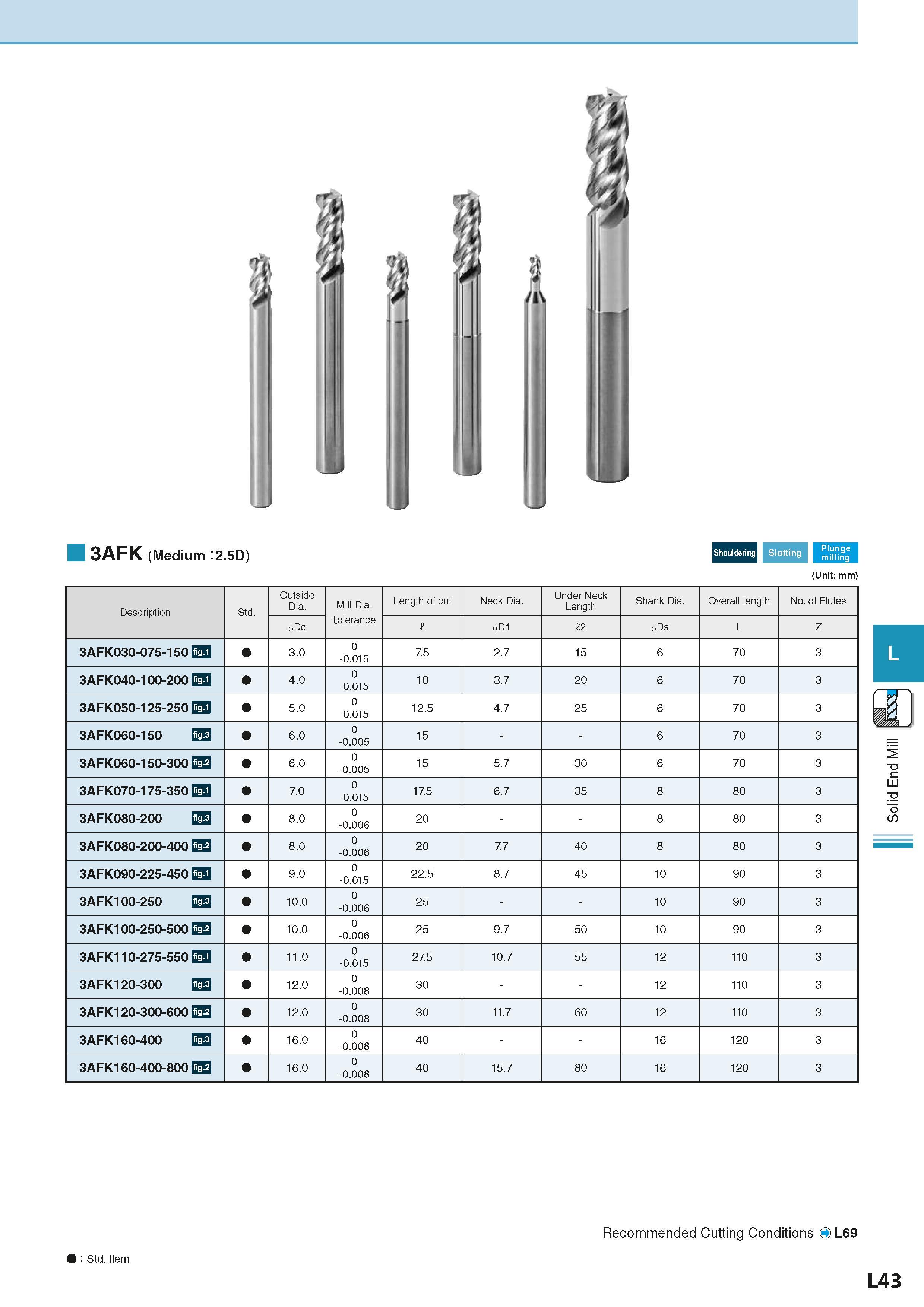

3AFK (Medium :2.5D) (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I 4>D1 12 4>Ds L Z 3AFK030-075-150 fig1 3.0 0 -0.015 7.5 2.7 15 6 70 3 3AFK040-100-200 fig1 4.0 0 -0.015 10 3.7 20 6 70 3 3AFK050-125-250 fig1 5.0 0 -0.015 12.5 4.7 25 6 70 3 3AFK060-150 fig.3 6.0 0 -0.005 15 6 70 3 3AFK060-150-300 M 6.0 0 -0.005 15 5.7 30 6 70 3 3AFK070-175-350 fig1 7.0 0 -0.015 17.5 6.7 35 8 80 3 3AFK080-200 fig.3 8.0 0 -0.006 20 8 80 3 3AFK080-200-400 M 8.0 0 -0.006 20 7.7 40 8 80 3 3AFK090-225-450 fig1 9.0 0 -0.015 22.5 8.7 45 10 90 3 3AFK100-250 fig.3 10.0 0 -0.006 25 10 90 3 3AFK100-250-500 M 10.0 0 -0.006 25 9.7 50 10 90 3 3AFK110-275-550 fig1 11.0 0 -0.015 27.5 10.7 55 12 110 3 3AFK120-300 fig.3 12.0 0 -0.008 30 12 110 3 3AFK120-300-600 M 12.0 0 -0.008 30 11.7 60 12 110 3 3AFK160-400 fa.3 16.0 0 -0.008 40 16 120 3 3AFK160-400-800 fig2 16.0 0 -0.008 40 15.7 80 16 120 3 Recommended Cutting Conditions OL69 Std. Item L43 Solid End Mill
