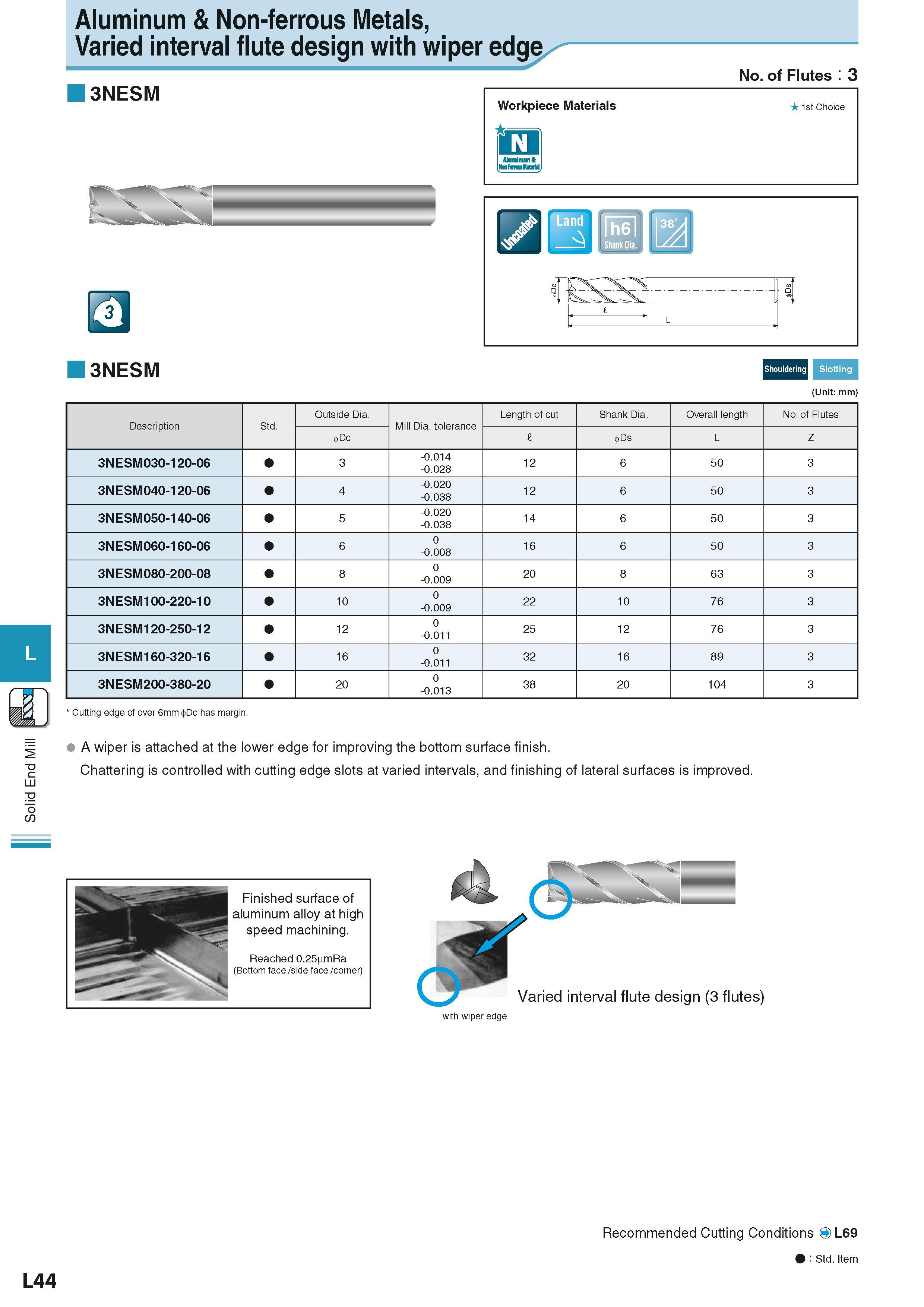

Solid End Mill Aluminum & Non-ferrous Metals, Varied interval flute design with wiper edge 3NESM "V m 3NESM No. of Flutes 3 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice (knFmusHiteriil Chont nio Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3NESM030-120-06 3 -0.014 -0.028 12 6 50 3 3NESM040-120-06 4 -0.020 -0.038 12 6 50 3 3NESM050-140-06 5 -0.020 -0.038 14 6 50 3 3NESM060-160-06 6 0 -0.008 16 6 50 3 3NESM080-200-08 8 0 -0.009 20 8 63 3 3NESM100-220-10 10 0 -0.009 22 10 76 3 3NESM120-250-12 12 0 -0.011 25 12 76 3 3NESM160-320-16 16 0 -0.011 32 16 89 3 3NESM200-380-20 20 0 -0.013 38 20 104 3 Cutting edge of over 6mm Dc has margin. A wiper is attached at the lower edge for improving the bottom surface finish. Chattering is controlled with cutting edge slots at varied intervals, and finishing of lateral surfaces is improved. Finished surface of aluminum alloy at high speed machining. Reached 0.25 mRa (Bottom face /side face /corner) Varied interval flute design (3 flutes) with wiper edge L44 Recommended Cutting Conditions OL69 9 Std. Item
