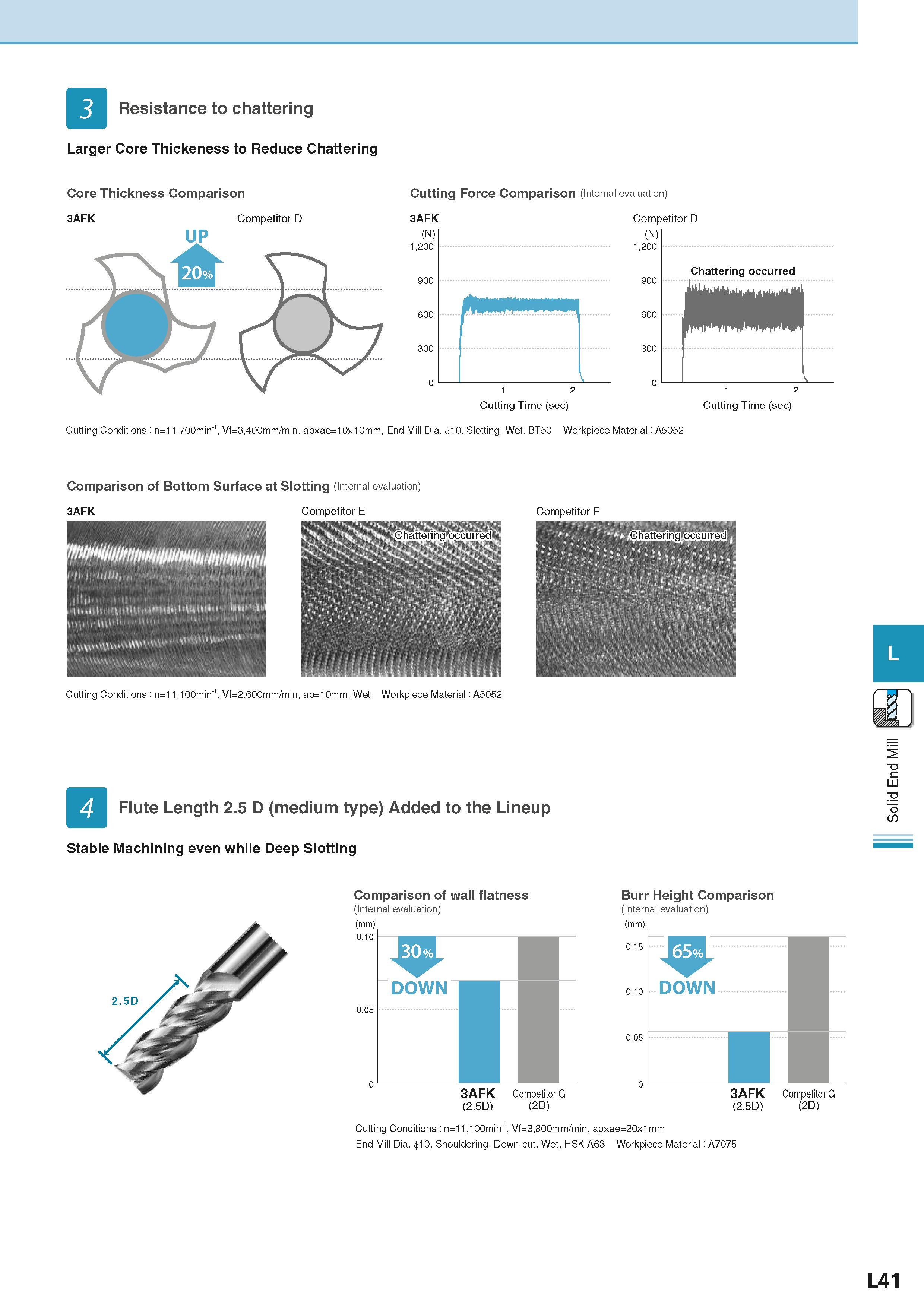

3 Resistance to chattering Larger Core Thickeness to Reduce Chattering Core Thickness Comparison 3AFK Competitor D UP Cutting Force Comparison (Internal evaluation) 3AFK (N) Competitor D (N) Chattering occurred 12 12 Cutting Time (sec) Cutting Time (sec) Cutting Conditions n=11,700min'1, Vf=3,400mm/min, apxae=10x10mm, End Mill Dia. 10, Slotting, Wet, BT50 Workpiece Materia A5052 900 900 600 600 300 300 0 0 Comparison of Bottom Surface at Slotting (Internal evaluation) 3AFK Competitor E Competitor F Flute Length 2.5 D (medium type) Added to the Lineup Stable Machining even while Deep Slotting Comparison of wall flatness (Internal evaluation) (mm) Burr Height Comparison (Internal evaluation) (mm) 3AFK Competitor G (2.5D) (2D) 3AFK Competitor G (2.5D) (2D) Cutting Conditions n=11,100min"1, Vf=3,800mm/min, apxae=20x1 mm End Mill Dia. < >10, Shouldering, Down-cut, Wet, HSK A63 Workpiece Material: A7075 0 L41 Solid End Mill
