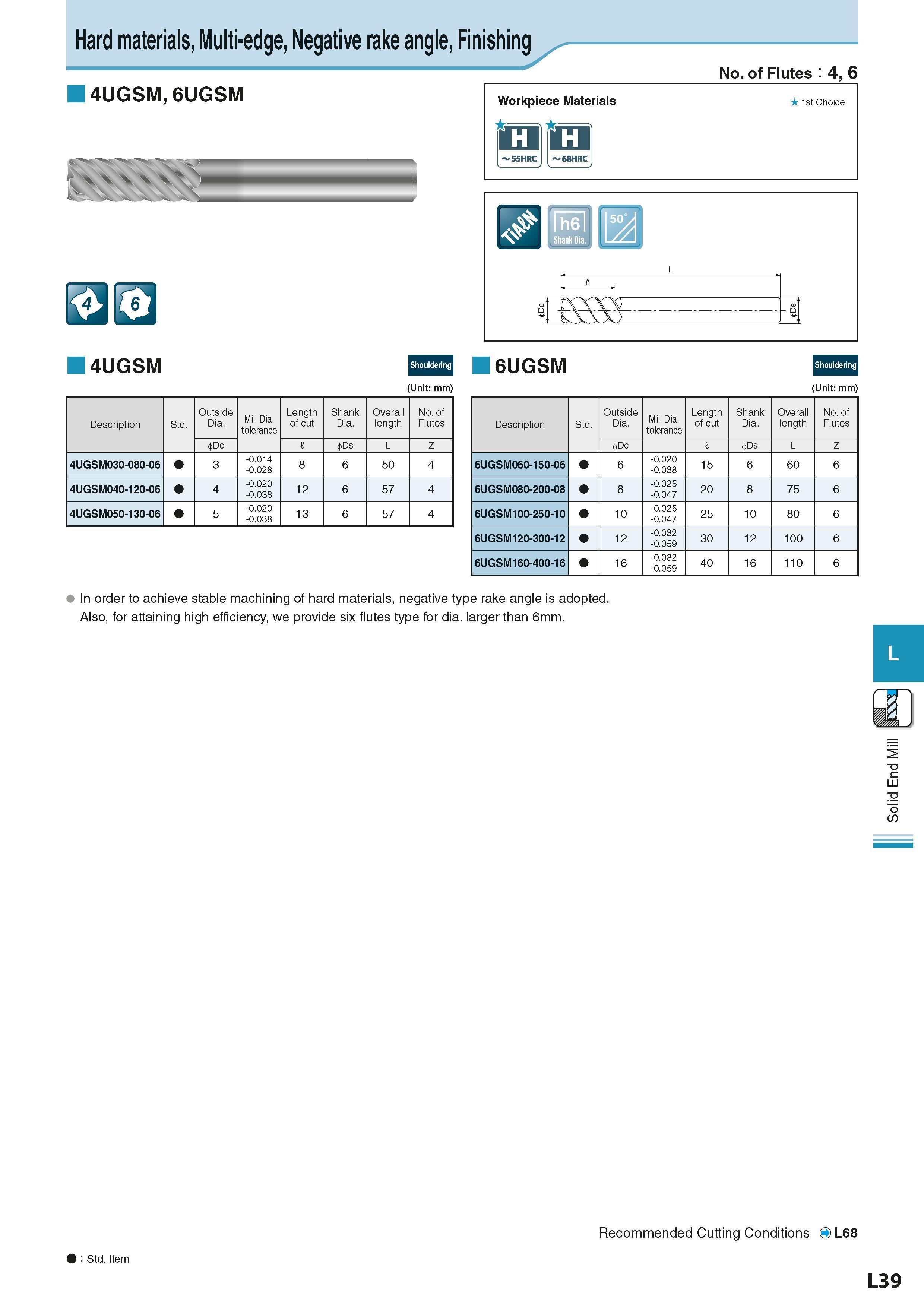

Hard materials, Multi-edge, Negative rake angle, Finishing No. of Flutes 4, 6 4UGSM, 6UGSM Workpiece Materials Группы обрабатываемых материалов по ISO In In 1st Choice 4UGSM issi I Shank Dia. % 6UGSM (Unit: mm) (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes 6Dc I 6Ds L Z 6Dc I 6Ds L Z 4UGSM030-080-06 3 -0.014 -0.028 8 6 50 4 6UGSM060-150-06 6 -0.020 -0.038 15 6 60 6 4UGSM040-120-06 4 -0.020 -0.038 12 6 57 4 6UGSM080-200-08 8 -0.025 -0.047 20 8 75 6 4UGSM050-130-06 5 -0.020 -0.038 13 6 57 4 6UGSM100-250-10 10 -0.025 -0.047 25 10 80 6 6UGSM120-300-12 12 -0.032 -0.059 30 12 100 6 6UGSM160-400-16 16 -0.032 -0.059 40 16 110 6 In order to achieve stable machining of hard materials, negative type rake angle is adopted. Also, for attaining high efficiency, we provide six flutes type for dia. larger than 6mm. Recommended Cutting Conditions OL68 9 Std. Item L L39 Solid End Mill
