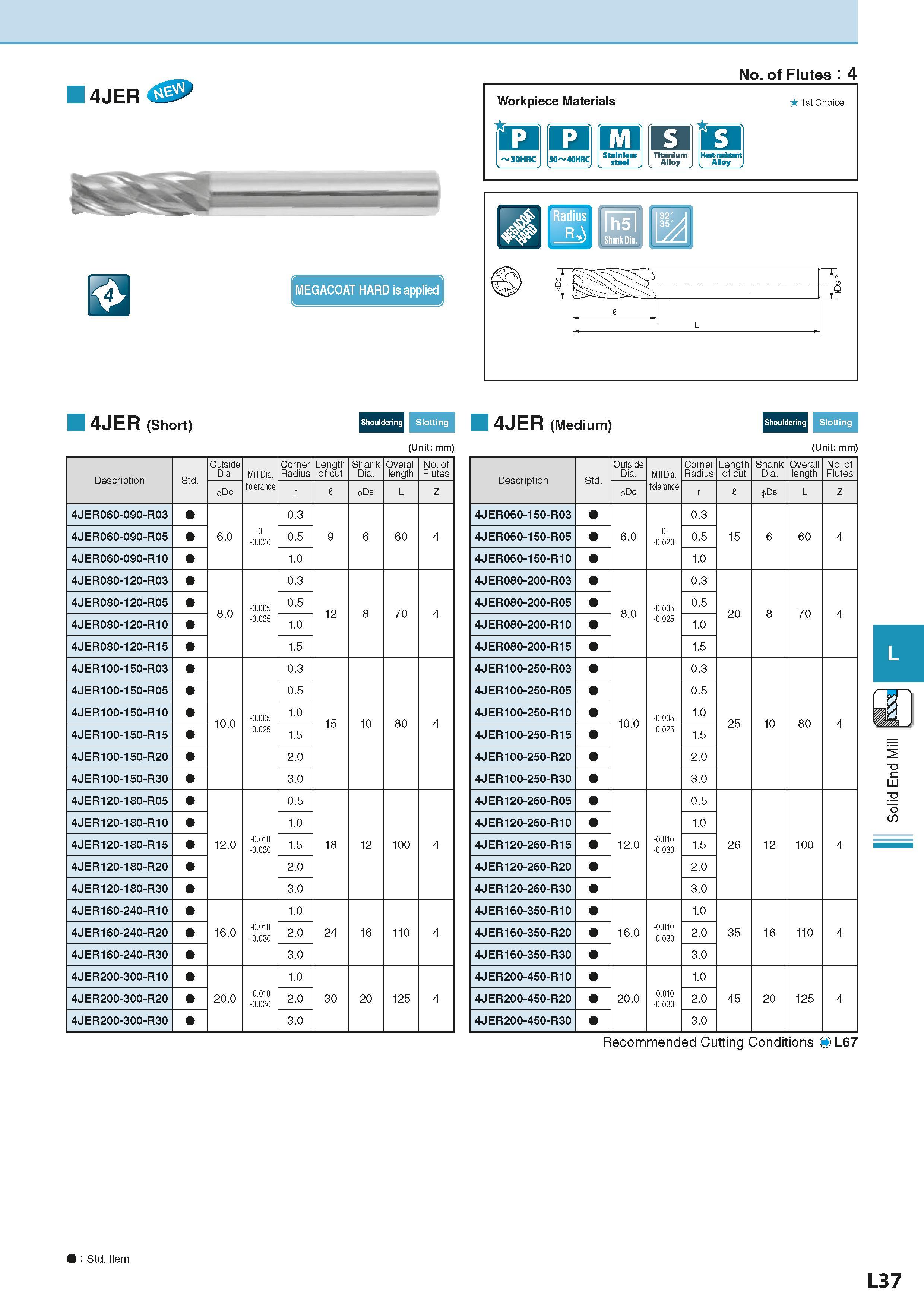

651 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.L37

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. L37 0651 Lab2u

4JER MEGACOAT HARD is applied No. of Flutes 4 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice Titanium Alloy Heat-resistant Alloy RRiuNsl fhsl I Shank Dia. I L 4JER (Short) Shouldering Slotting (Unit: mm) 4JER (Medium) Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. Corner Radius Length of cut Shank Dia. Overall length No. of Flutes 4>Dc tolerance r I 4>Ds L Z 4JER060-090-R03 0.3 4JER060-090-R05 6.0 0 -0.020 0.5 9 6 60 4 4JER060-090-R10 1.0 4JER080-120-R03 0.3 4JER080-120-R05 8.0 -0.005 0.5 12 8 70 4 4JER080-120-R10 -0.025 1.0 4JER080-120-R15 1.5 4JER100-150-R03 0.3 4JER100-150-R05 0.5 4JER100-150-R10 10.0 -0.005 1.0 15 10 80 4 4JER100-150-R15 -0.025 1.5 4JER100-150-R20 2.0 4JER100-150-R30 3.0 4JER120-180-R05 0.5 4JER120-180-R10 1.0 4JER120-180-R15 12.0 -0.010 -0.030 1.5 18 12 100 4 4JER120-180-R20 2.0 4JER120-180-R30 3.0 4JER160-240-R10 1.0 4JER160-240-R20 16.0 -0.010 -0.030 2.0 24 16 110 4 4JER160-240-R30 3.0 4JER200-300-R10 1.0 4JER200-300-R20 20.0 -0.010 -0.030 2.0 30 20 125 4 4JER200-300-R30 3.0 Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. Corner Radius Length of cut Shank Dia. Overall length No. of Flutes 4>Dc tolerance r I 4>Ds L Z 4JER060-150-R03 0.3 4JER060-150-R05 6.0 0 -0.020 0.5 15 6 60 4 4JER060-150-R10 1.0 4JER080-200-R03 0.3 4JER080-200-R05 8.0 -0.005 0.5 20 8 70 4 4JER080-200-R10 -0.025 1.0 4JER080-200-R15 1.5 4JER100-250-R03 0.3 4JER100-250-R05 0.5 4JER100-250-R10 10.0 -0.005 1.0 25 10 80 4 4JER100-250-R15 -0.025 1.5 4JER100-250-R20 2.0 4JER100-250-R30 3.0 4JER120-260-R05 0.5 4JER120-260-R10 1.0 4JER120-260-R15 12.0 -0.010 -0.030 1.5 26 12 100 4 4JER120-260-R20 2.0 4JER120-260-R30 3.0 4JER160-350-R10 1.0 4JER160-350-R20 16.0 -0.010 -0.030 2.0 35 16 110 4 4JER160-350-R30 3.0 4JER200-450-R10 1.0 4JER200-450-R20 20.0 -0.010 -0.030 2.0 45 20 125 4 4JER200-450-R30 3.0 Recommended Cutting Conditions OL67 O Std. Item L37 Solid End Mill
