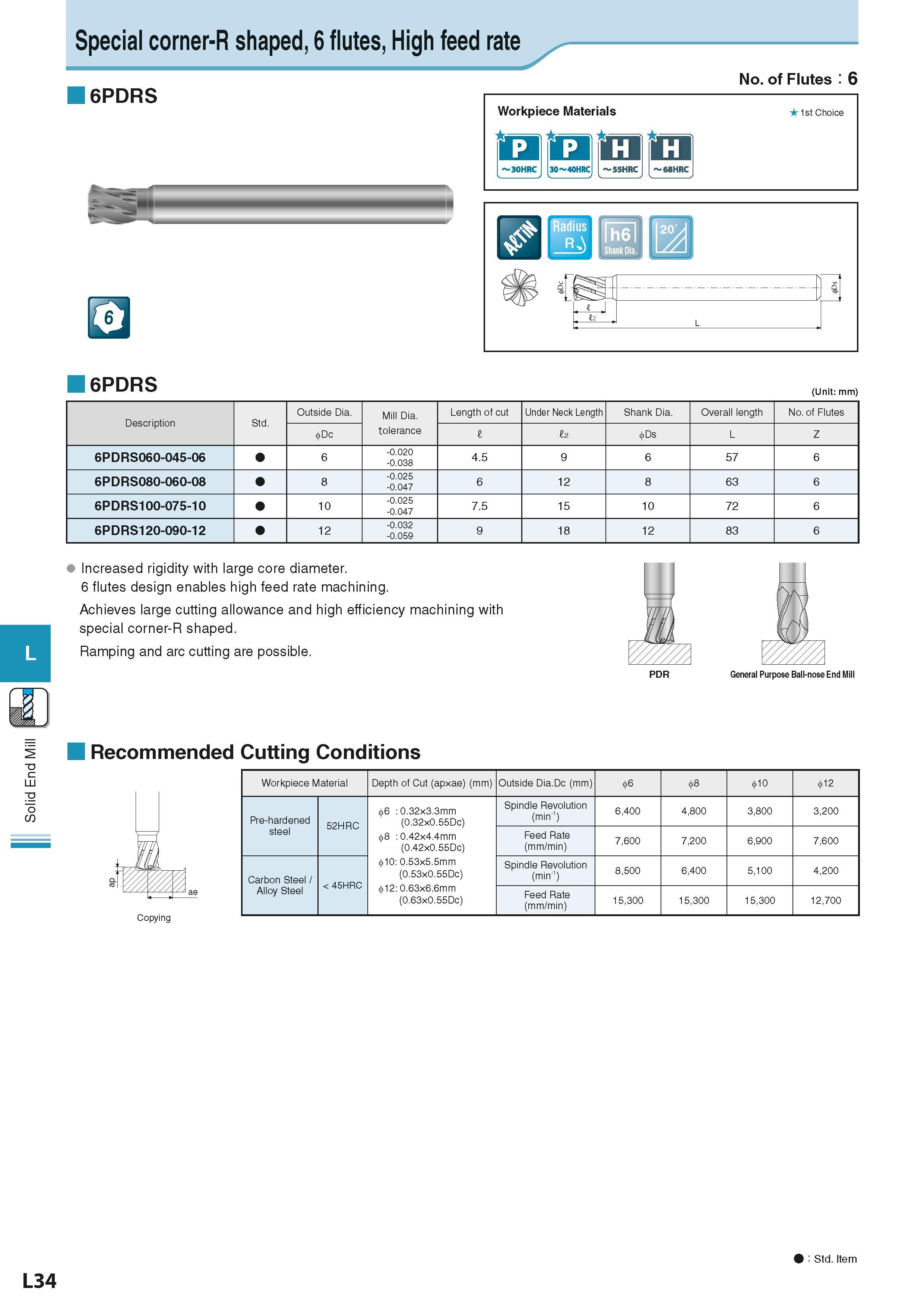

Solid End Mill Special corner-R shaped, 6 flutes, High feed rate 6PDRS No- of Flutes 6 Workpiece Materials Группы обрабатываемых материалов по ISO nnnin 1st Choice m 6PDRS RRiuNs fh6l V I H ) I Shank Dia. (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Under Neck Length Shank Dia. Overall length No. of Flutes Dc I 12 Ds L Z 6PDRS060-045-06 6 -0.020 -0.038 4.5 9 6 57 6 6PDRS080-060-08 8 -0.025 -0.047 6 12 8 63 6 6PDRS100-075-10 10 -0.025 -0.047 7.5 15 10 72 6 6PDRS120-090-12 12 -0.032 -0.059 9 18 12 83 6 Increased rigidity with large core diameter. 6 flutes design enables high feed rate machining. Achieves large cutting allowance and high efficiency machining with special corner-R shaped. Ramping and arc cutting are possible. PDR General Purpose Ball-nose End Mill Recommended Cutting Conditions Copying Workpiece Material Depth of Cut (apxae) (mm) Outside Dia.Dc (mm) 6 8 10 12 Pre-hardened steel 52HRC 6 0.32x3.3mm (0.32x0.55Dc) 8 :0.42x4.4mm (0.42x0.55Dc) 10: 0.53x5.5mm (0.53x0.55Dc) 12: 0.63x6.6mm (0.63x0.55Dc) Spindle Revolution (min-1) 6,400 4,800 3,800 3,200 Feed Rate (mm/min) 7,600 7,200 6,900 7,600 Carbon Steel / Alloy Steel < 45HRC Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 Feed Rate (mm/min) 15,300 15,300 15,300 12,700 L ae L34 Std. Item
