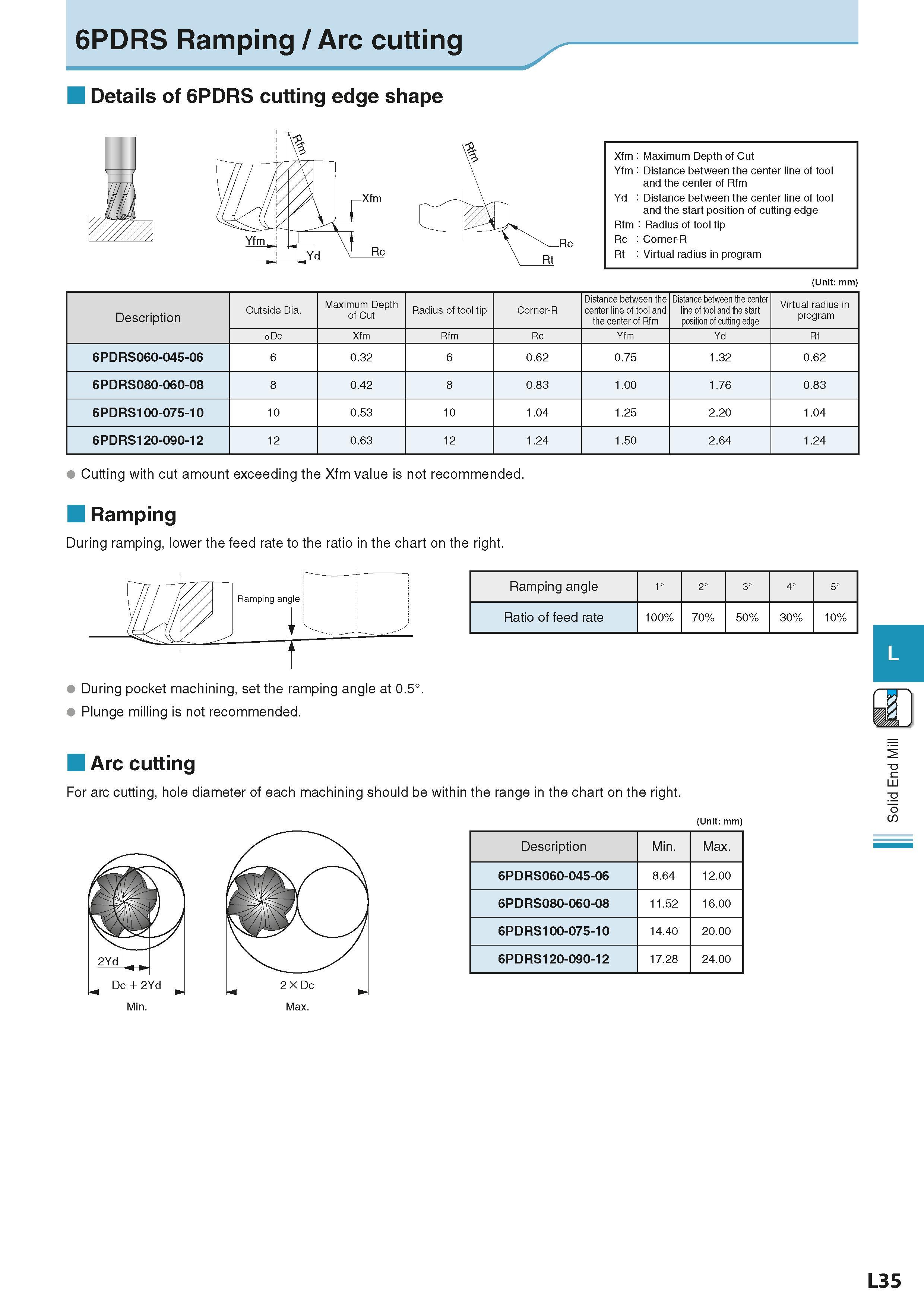

6PDRS Ramping / Arc cutting Details of 6PDRS cutting edge shape Xfm Maximum Depth of Cut Yfm Distance between the center line of tool and the center of Rfm Yd Distance between the center line of tool and the start position of cutting edge Rfm Radius of tool tip Rc Corner-R Rt Virtual radius in program (Unit: mm) Description Outside Dia. Maximum Depth of Cut Radius of tool tip Corner-R Distance between the center line of tool and the center of Rfm Distance between the center line of tool and the start position of cutting edge Virtual radius in program Dc Xfm Rfm Rc Yfm Yd Rt 6PDRS060-045-06 6 0.32 6 0.62 0.75 1.32 0.62 6PDRS080-060-08 8 0.42 8 0.83 1.00 1.76 0.83 6PDRS100-075-10 10 0.53 10 1.04 1.25 2.20 1.04 6PDRS120-090-12 12 0.63 12 1.24 1.50 2.64 1.24 Cutting with cut amount exceeding the Xfm value is not recommended. Ramping During ramping, lower the feed rate to the ratio in the chart on the right. Ramping angle 1° 2° 3° 4° 5° Ratio of feed rate 100% 70% 50% 30% 10% During pocket machining, set the ramping angle at 0.5°. Plunge milling is not recommended. Arc cutting For arc cutting, hole diameter of each machining should be within the range in the chart on the right. (Unit: mm) Description Min. Max. 6PDRS060-045-06 8.64 12.00 6PDRS080-060-08 11.52 16.00 6PDRS100-075-10 14.40 20.00 6PDRS120-090-12 17.28 24.00 Min. Max. L35 Solid End Mill
