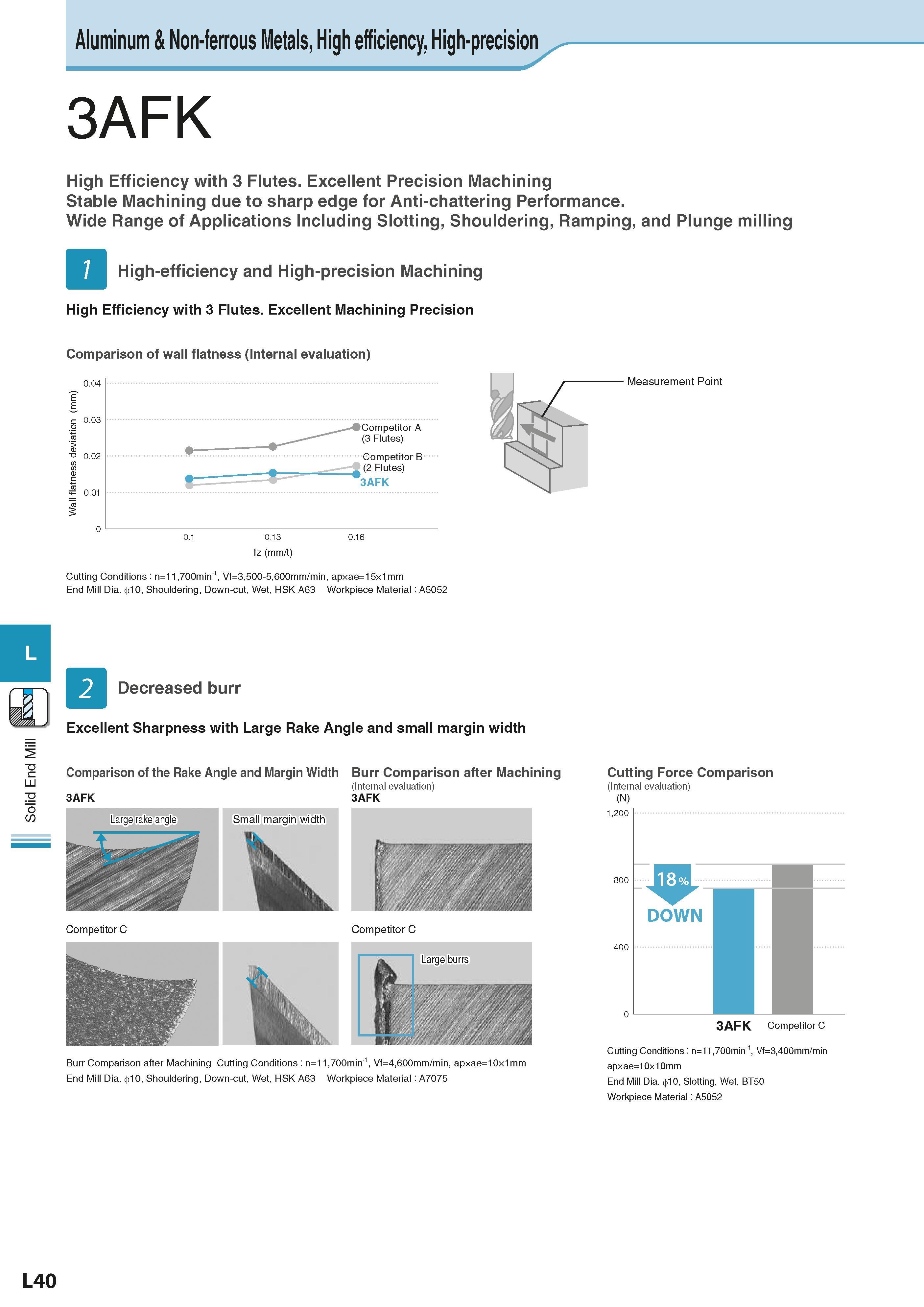

Solid End Mill Aluminum & Non-ferrous Metals, High efficiency, High-precision 3AFK High Efficiency with 3 Flutes. Excellent Precision Machining Stable Machining due to sharp edge for Anti-chattering Performance. Wide Range of Applications Including Slotting, Shouldering, Ramping, and Plunge milling High-efficiency and High-precision Machining High Efficiency with 3 Flutes. Excellent Machining Precision Comparison of wall flatness (Internal evaluation) fz (mm/t) Cutting Conditions n=11,700min-1, Vf=3,500-5,600mm/min, apxae=15x1mm End Mill Dia. 10, Shouldering, Down-cut, Wet, HSK A63 Workpiece Material: A5052 Decreased burr Excellent Sharpness with Large Rake Angle and small margin width Comparison of the Rake Angle and Margin Width Burr Comparison after Machining (Internal evaluation) 3AFK 3AFK Competitor C Competitor C Burr Comparison after Machining Cutting Conditions n=11,700min-1, Vf=4,600mm/min, apxae=10x1mm End Mill Dia. 10, Shouldering, Down-cut, Wet, HSK A63 Workpiece Material: A7075 Cutting Force Comparison (Internal evaluation) (N) 1,200 .............................. 3AFK Competitor C Cutting Conditions n=11,700min-1, Vf=3,400mm/min apxae=10x10mm End Mill Dia. 10, Slotting, Wet, BT50 Workpiece Material: A5052 0 L40
