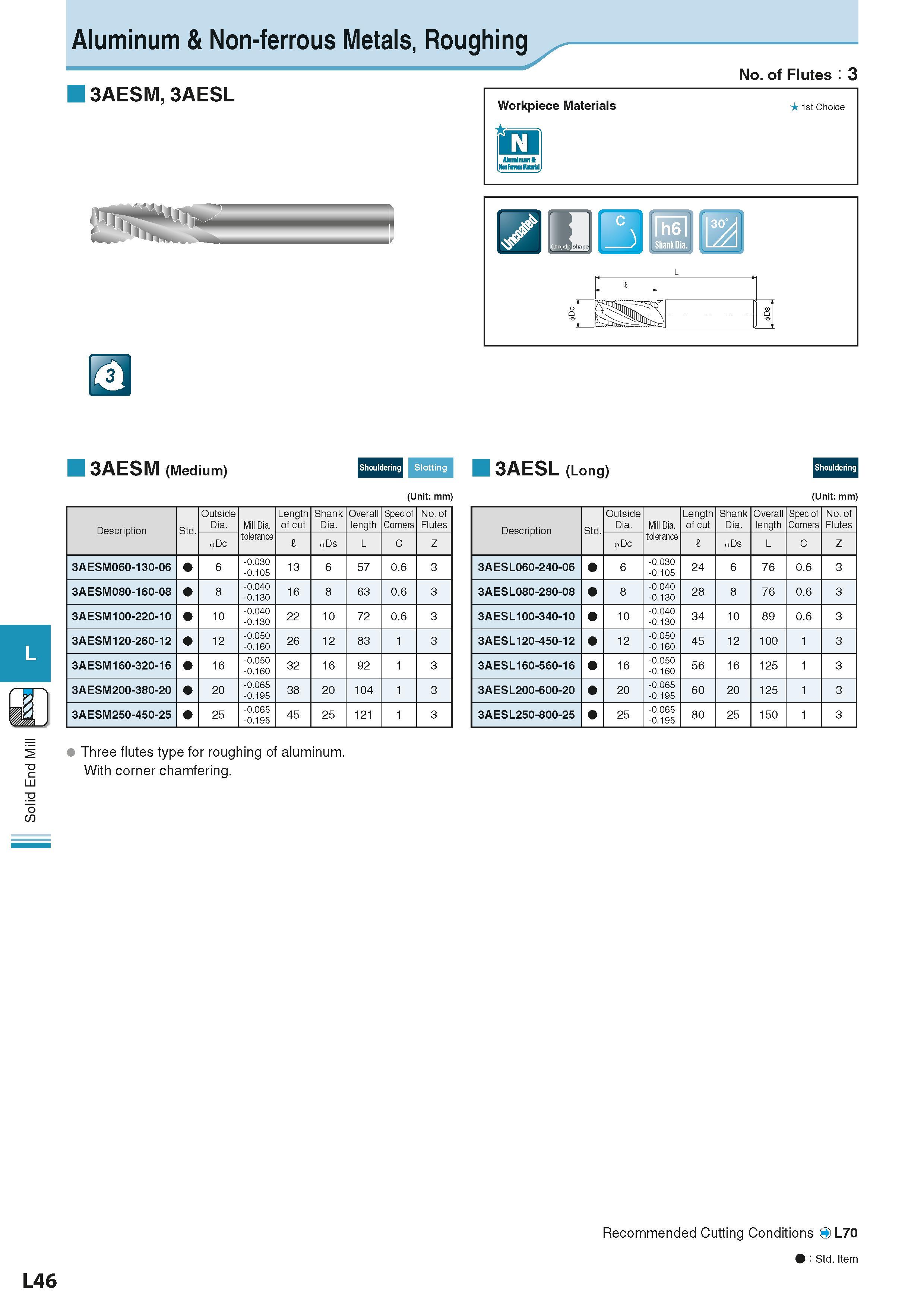

Solid End Mill Aluminum & Non-ferrous Metals, Roughing 3AESM, 3AESL m No. of Flutes 3 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice Non tonus MKeriil 3AESM (Medium) Shouldering Slotting 3AESL (Long) Shouldering (Unit: mm) Description Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L C Z 3AESM060-130-06 6 -0.030 -0.105 13 6 57 0.6 3 3AESM080-160-08 8 -0.040 -0.130 16 8 63 0.6 3 3AESM100-220-10 10 -0.040 -0.130 22 10 72 0.6 3 3AESM120-260-12 12 -0.050 -0.160 26 12 83 1 3 3AESM160-320-16 16 -0.050 -0.160 32 16 92 1 3 3AESM200-380-20 20 -0.065 -0.195 38 20 104 1 3 3AESM250-450-25 25 -0.065 -0.195 45 25 121 1 3 (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L C Z 3AESL060-240-06 6 -0.030 -0.105 24 6 76 0.6 3 3AESL080-280-08 8 -0.040 -0.130 28 8 76 0.6 3 3AESL100-340-10 10 -0.040 -0.130 34 10 89 0.6 3 3AESL120-450-12 12 -0.050 -0.160 45 12 100 1 3 3AESL160-560-16 16 -0.050 -0.160 56 16 125 1 3 3AESL200-600-20 20 -0.065 -0.195 60 20 125 1 3 3AESL250-800-25 25 -0.065 -0.195 80 25 150 1 3 Three flutes type for roughing of aluminum. With corner chamfering. L46 Recommended Cutting Conditions OL70 9 Std. Item
