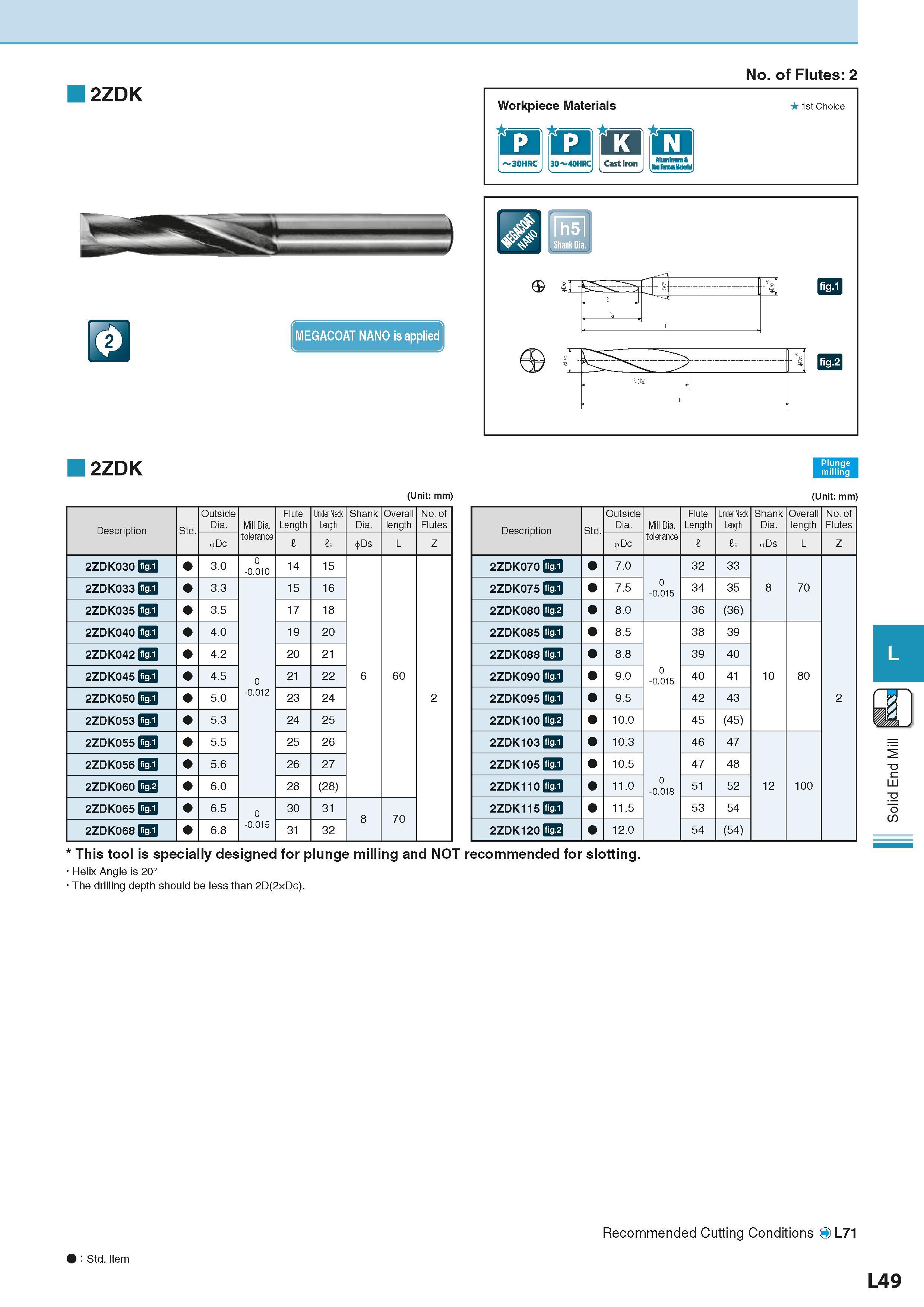

2ZDK MEGACOAT NANO is applied No. of Flutes: 2 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice a n 01 ro 2ZDK (Unit: mm) Description Outside Dia. Mill Dia. Flute Length Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I 12 Ds L Z 2ZDK030 fig i 3.0 0 -0.010 14 15 2ZDK033 fig i 3.3 15 16 2ZDK035 fig i 3.5 17 18 2ZDK040 fig i 4.0 19 20 2ZDK042 fig i 4.2 20 21 2ZDK045 fig i 4.5 0 21 22 6 60 2ZDK050 fig i 5.0 -0.012 23 24 2 2ZDK053 fig i 5.3 24 25 2ZDK055 fig i 5.5 25 26 2ZDK056 fig i 5.6 26 27 2ZDK060 fig 2 6.0 28 (28) 2ZDK065 fig i 6.5 0 30 31 8 70 2ZDK068 fig i 6.8 -0.015 31 32 (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. Flute Length Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I 12 Ds L Z 2ZDK070 fig i 7.0 32 33 2ZDK075 fig i 7.5 0 -0.015 34 35 8 70 2ZDK080 fig2 8.0 36 (36) 2ZDK085 fig i 8.5 38 39 2ZDK088 fig i 8.8 39 40 2ZDK090 fig i 9.0 0 -0.015 40 41 10 80 2ZDK095 fig i 9.5 42 43 2 2ZDKi00 fig2 10.0 45 (45) 2ZDKi03 figi 10.3 46 47 2ZDKi05 figi 10.5 47 48 2ZDKii0 fig i 11.0 0 -0.018 51 52 12 100 2ZDKii5 fig i 11.5 53 54 2ZDKi20 fig2 12.0 54 (54) This tool is specially designed for plunge milling and NOT recommended for slotting. Helix Angle is 20° The drilling depth should be less than 2D(2xDc). Recommended Cutting Conditions OL71 9 Std. Item L49 Solid End Mill
