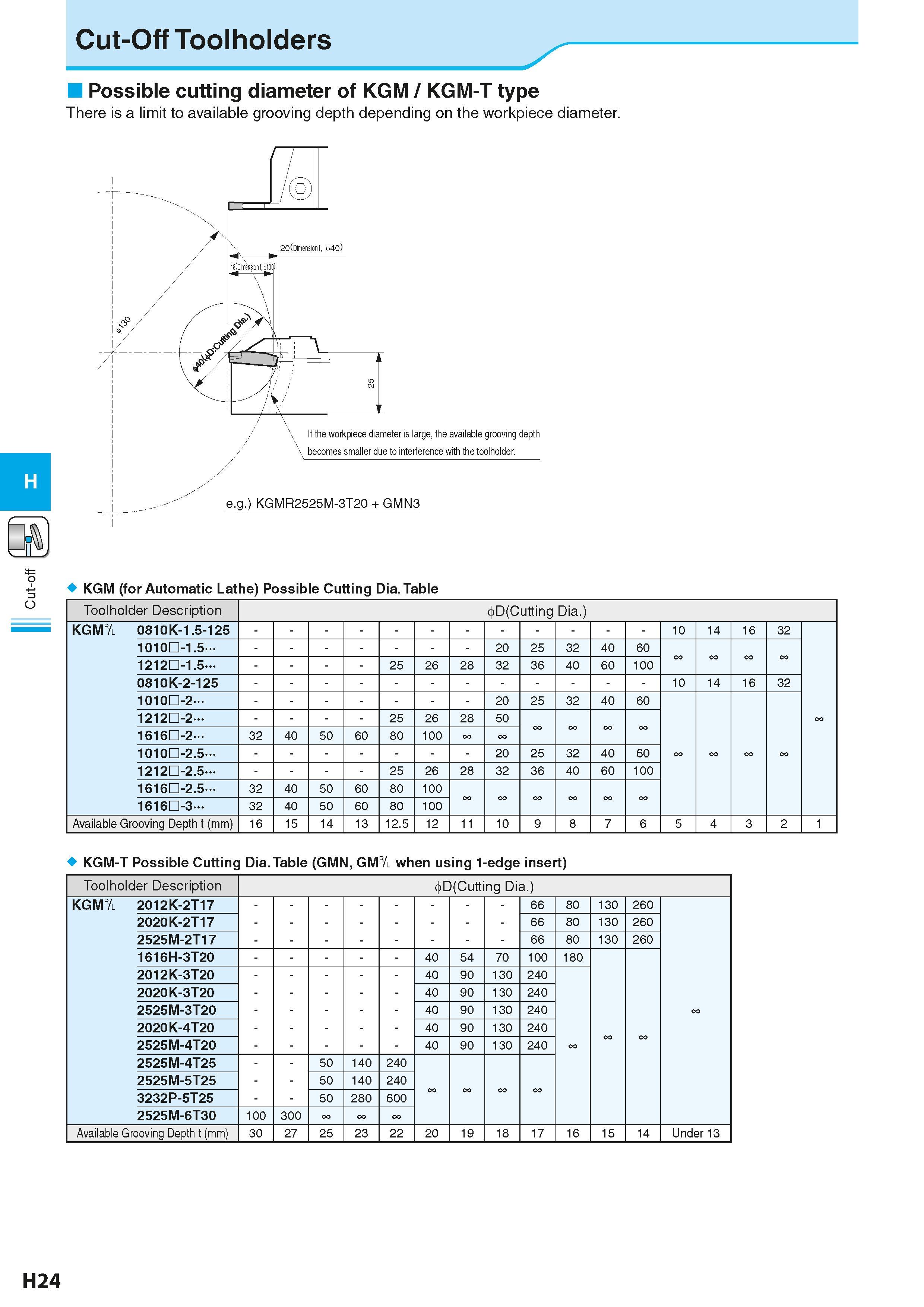

Cut-off H Cut-Off Toolholders Possible cutting diameter of KGM / KGM-T type There is a limit to available grooving depth depending on the workpiece diameter. KGM (for Automatic Lathe) Possible Cutting Dia. Table Toolholder Description D(Cutting Dia.) KGM& 0810K-1.5-125 10 14 16 32 1010D-1.5- - 20 25 32 40 60 1212D-1.5- 25 26 28 32 36 40 60 100 0810K-2-125 10 14 16 32 1010D-2- - 20 25 32 40 60 1212D-2- 25 26 28 50 M 1616D-2- 32 40 50 60 80 100 M M 1010D-2.5- - 20 25 32 40 60 M M M M 1212D-2.5- 25 26 28 32 36 40 60 100 1616D-2.5- 32 40 50 60 80 100 1616D-3- 32 40 50 60 80 100 Available Grooving Depth t (mm) 16 15 14 13 12.5 12 11 10 9 8 7 6 5 4 3 2 1 KGM-T Possible Cutting Dia. Table (GMN, GM& when using 1-edge insert) Toolholder Description D(Cutting Dia.) KGM& 2012K-2T17 66 80 130 260 2020K-2T17 66 80 130 260 2525M-2T17 66 80 130 260 1616H-3T20 - 40 54 70 100 180 2012K-3T20 - 40 90 130 240 2020K-3T20 - 40 90 130 240 2525M-3T20 - 40 90 130 240 M 2020K-4T20 - 40 90 130 240 2525M-4T20 - 40 90 130 240 M 2525M-4T25 50 140 240 2525M-5T25 50 140 240 3232P-5T25 50 280 600 2525M-6T30 100 300 M M M Available Grooving Depth t (mm) 30 27 25 23 22 20 19 18 17 16 15 14 Under 13 H24
